Inspired Fourplay SE Frame Kit

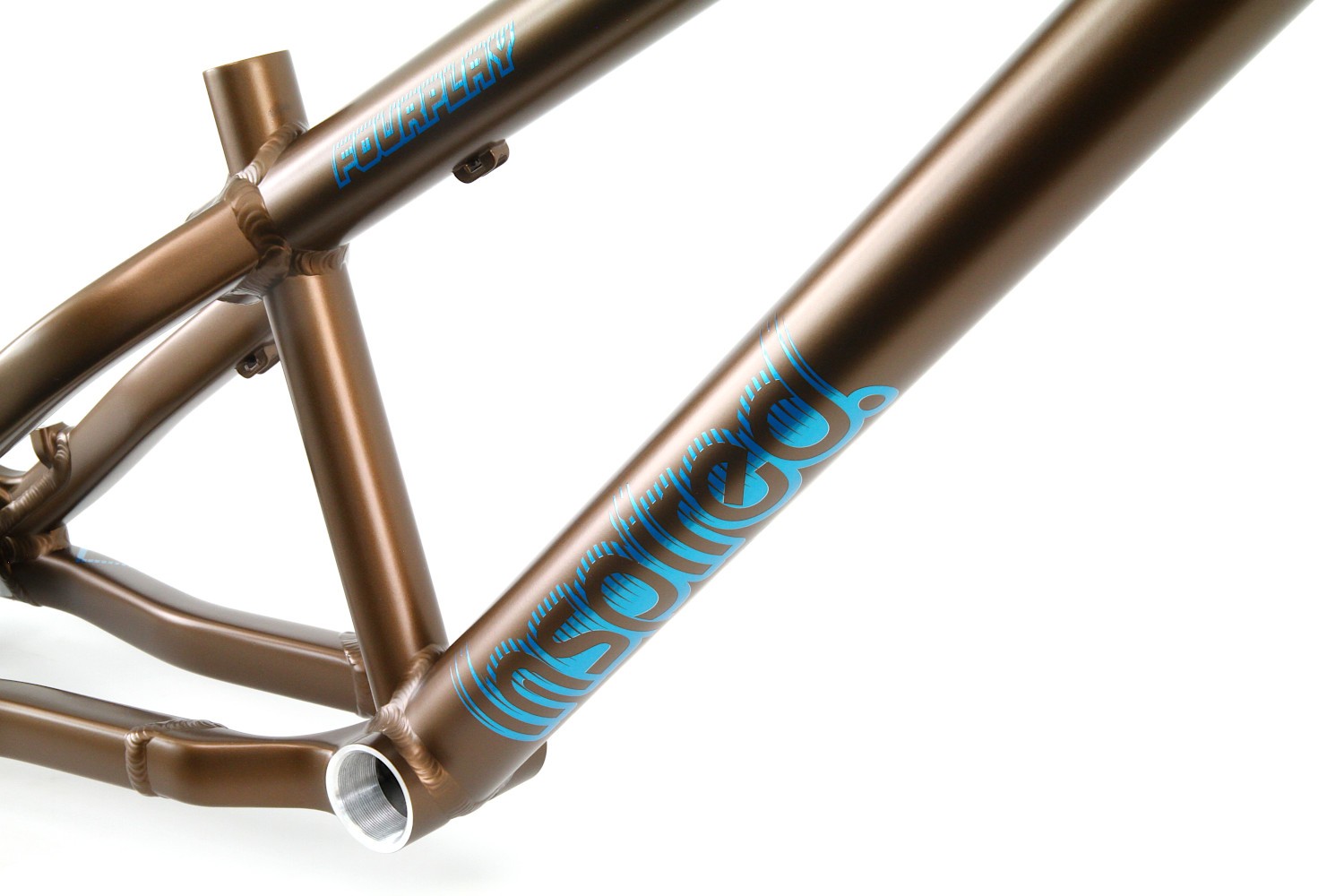

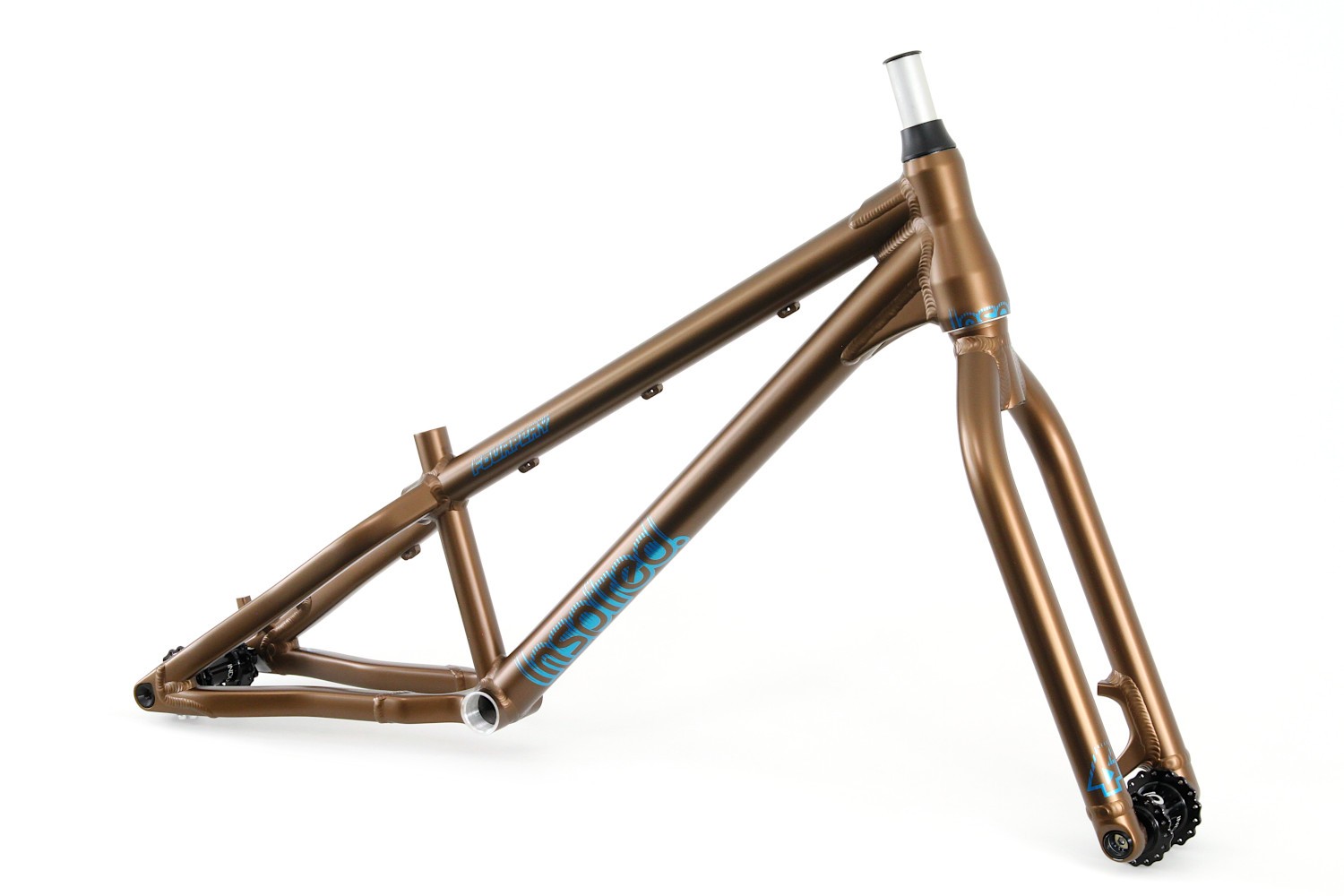

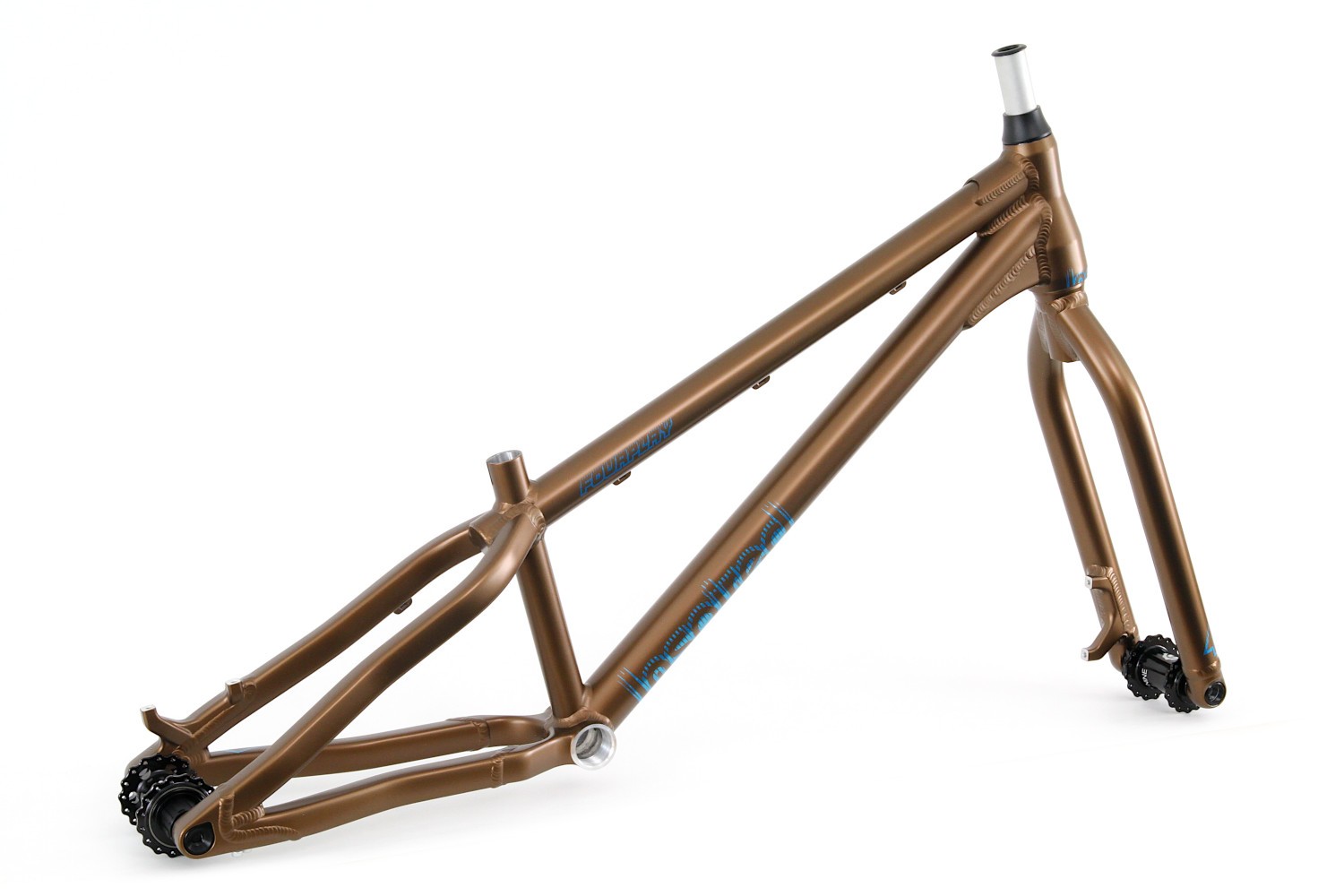

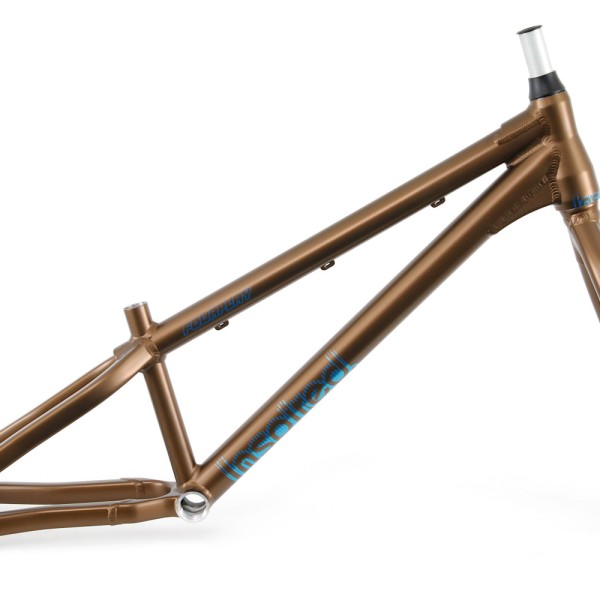

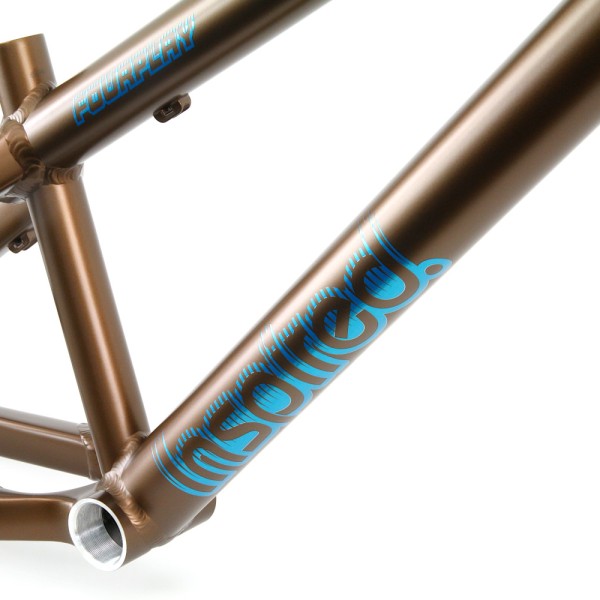

- Frame: Inspired Fourplay 24", 12mm bolt through axle, Satin Bronze (Gloss Chrome Blue Graphics)
- Forks: Inspired Fourplay, Taper 1.5" steerer, 20mm bolt through axle, Satin Bronze (Gloss Chrome Blue Graphics)
- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black

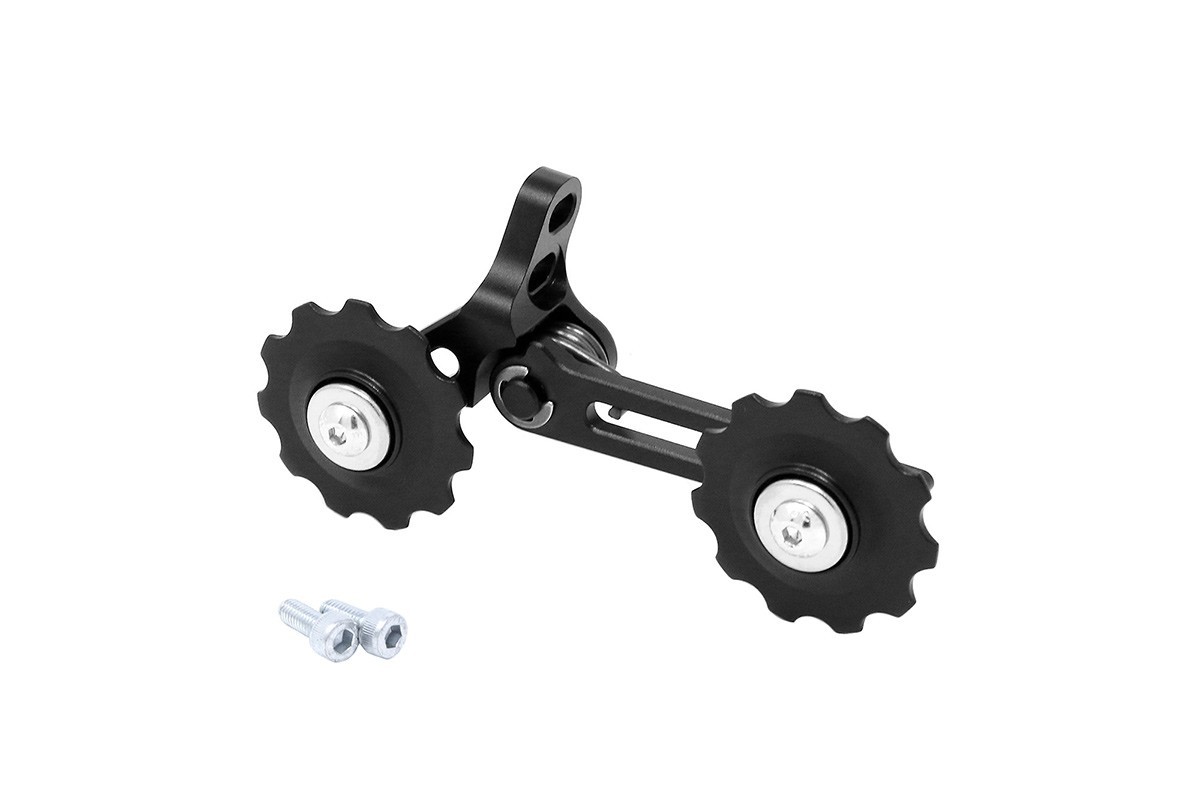

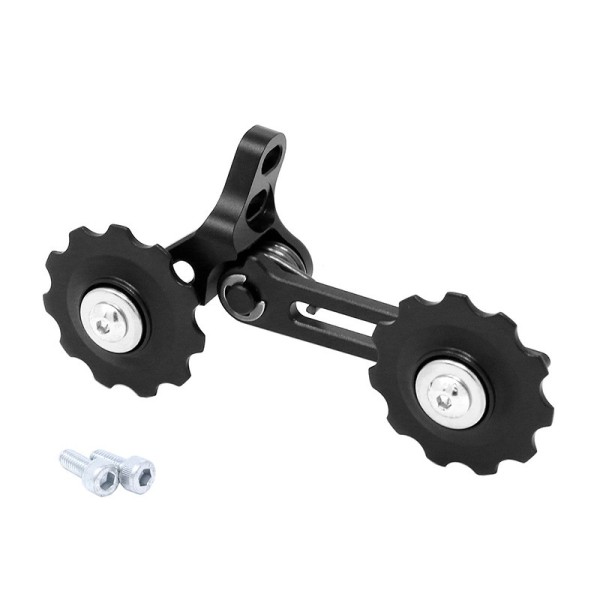

- Tensioner: Inspired Team Sprung, Black

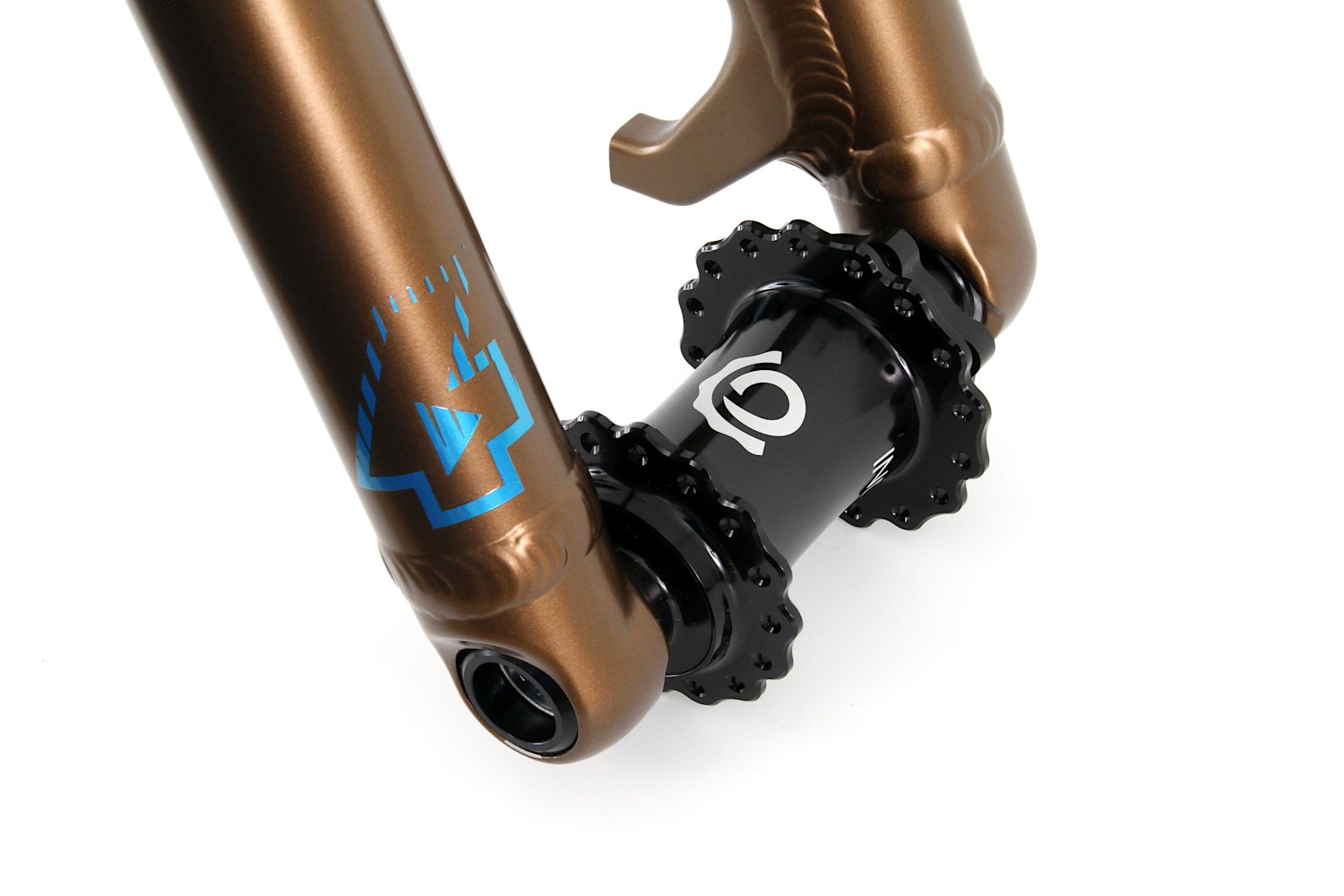

- Front Hub: Industry Nine Hydra 2 6B Front, 20mm bolt through axle, 32h, 110mm Non-Boost, Black (UK RRP £225!)

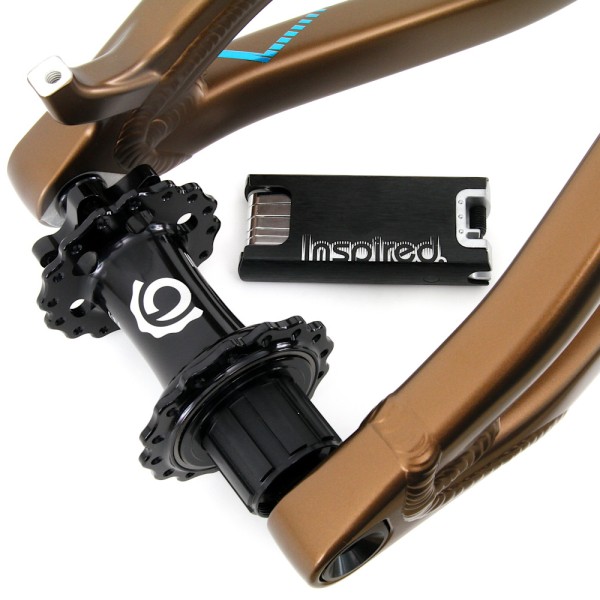

- Rear Hub: Industry Nine Hydra 2 SS 6B Rear, 12mm bolt through axle, 32h, 135mm, Black (UK RRP £455!)
- Weight: 3.81kg (inc. hubs)

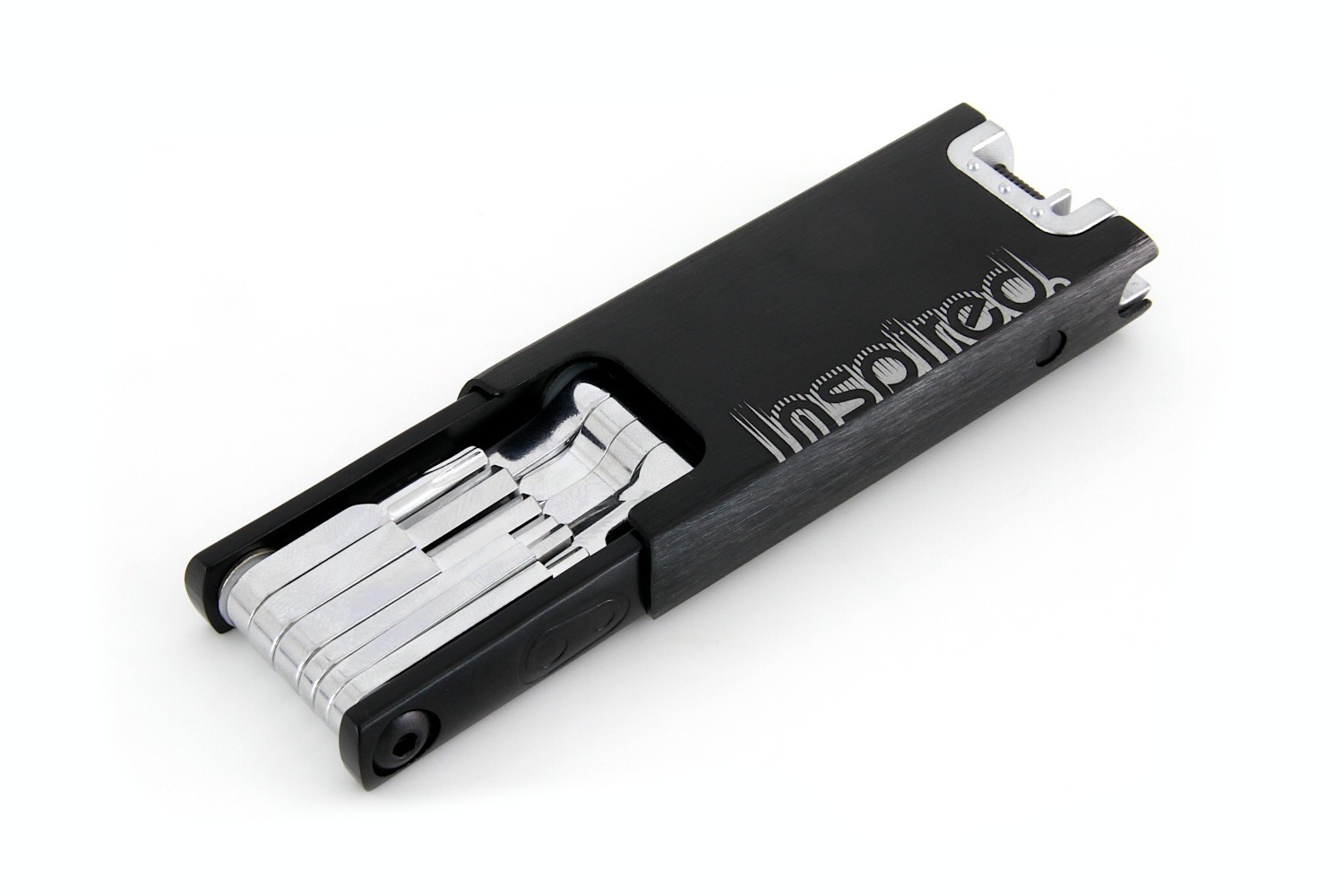

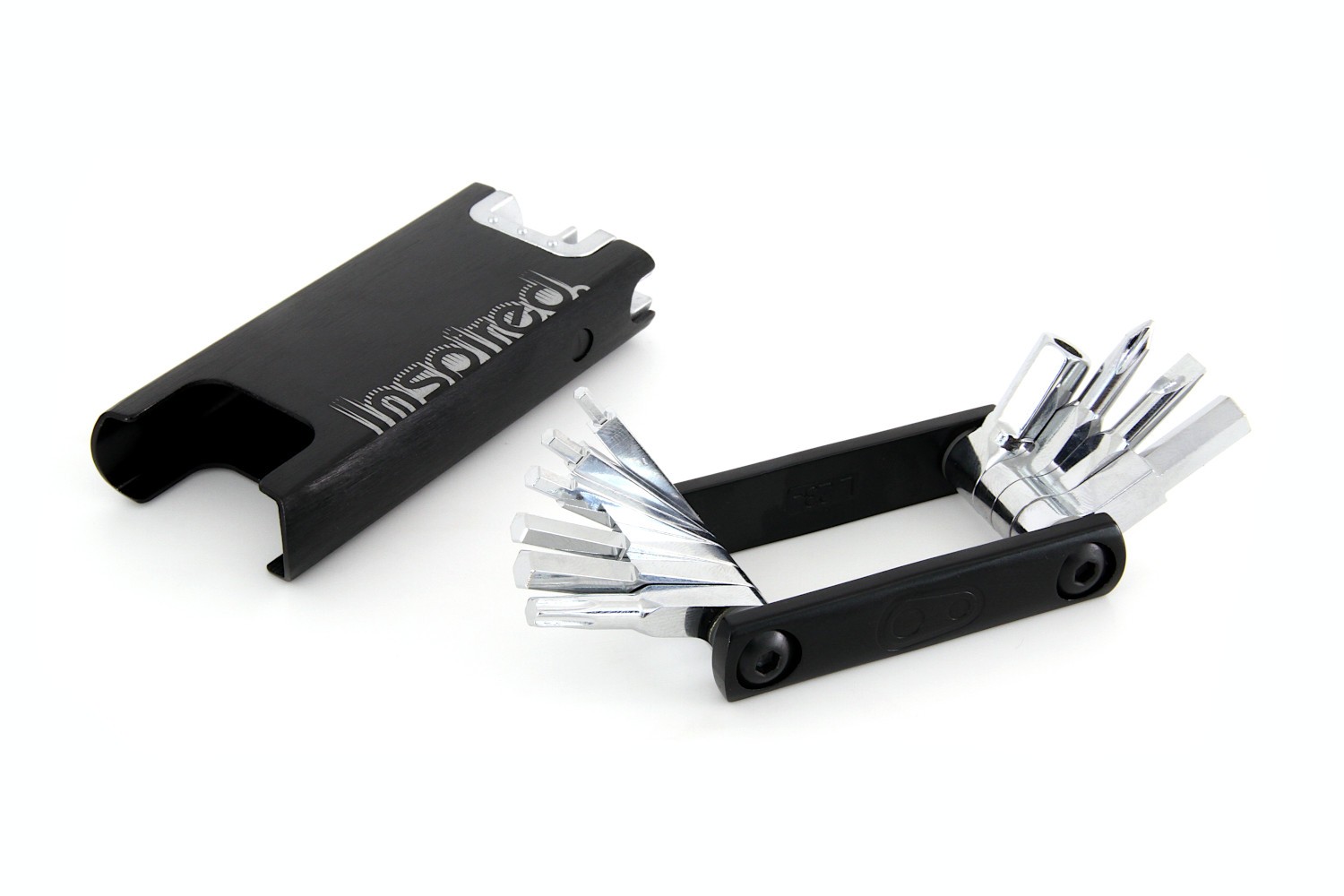

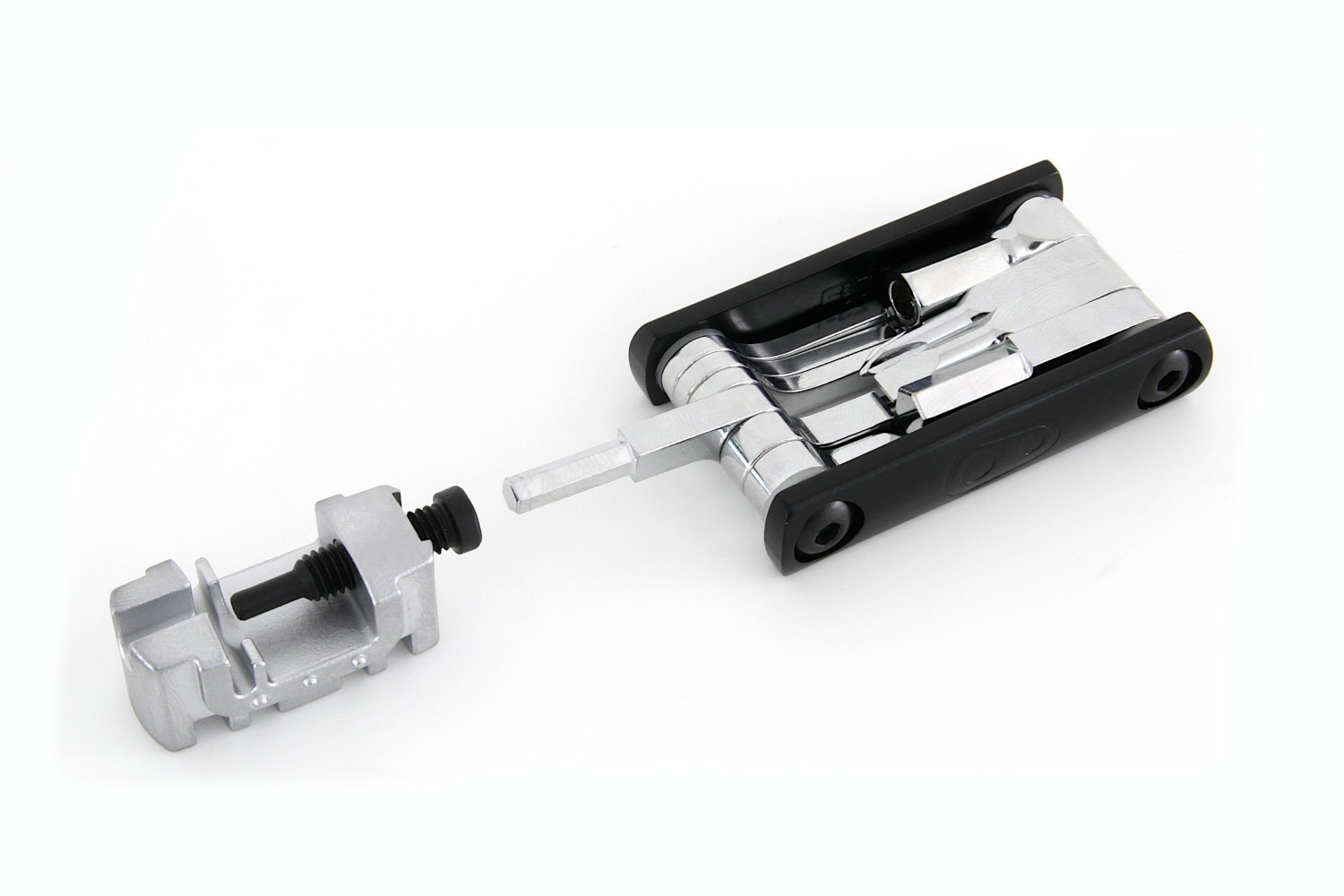

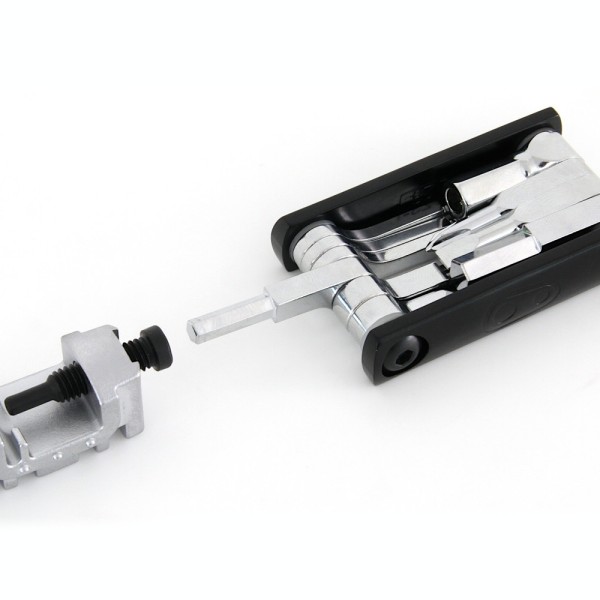

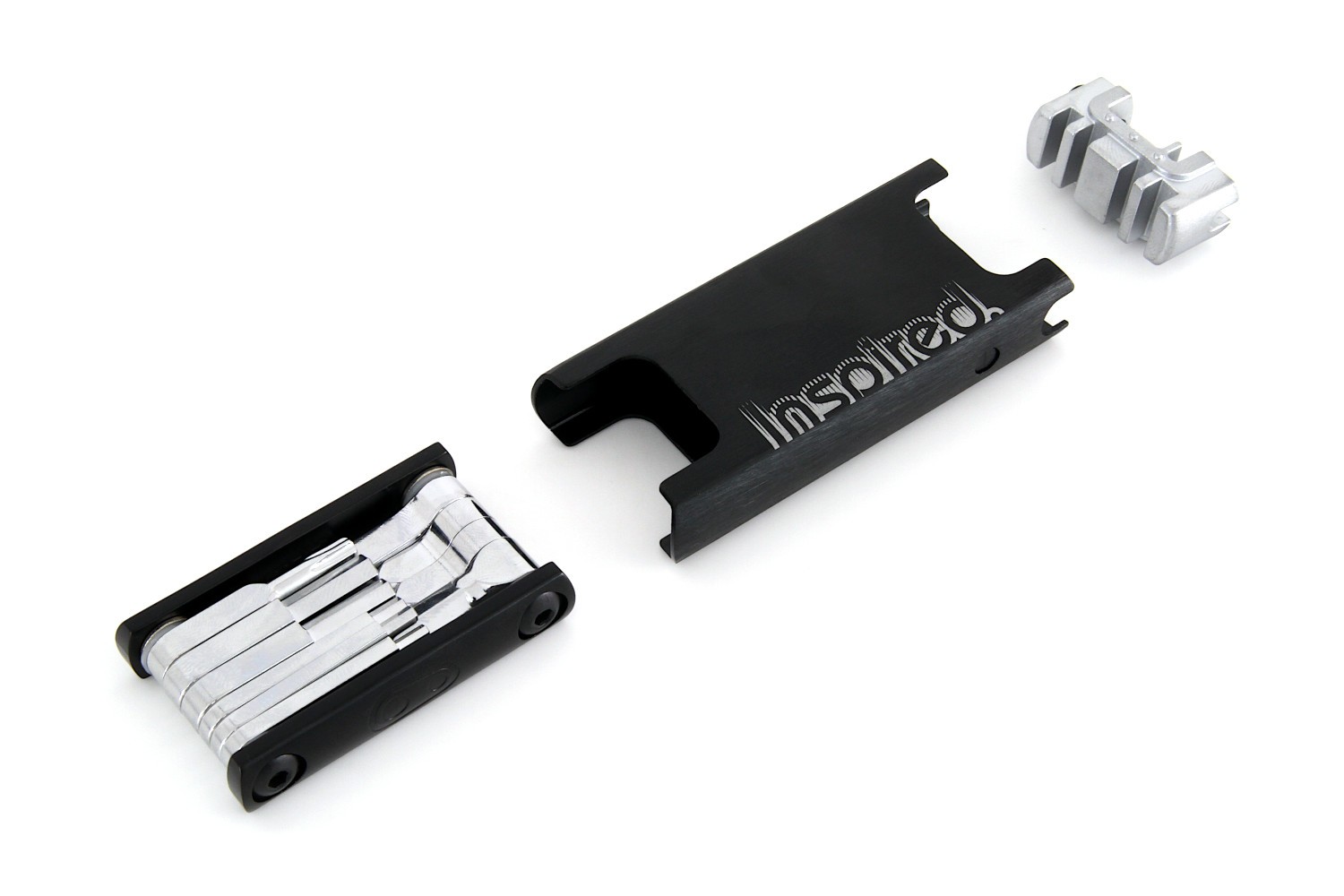

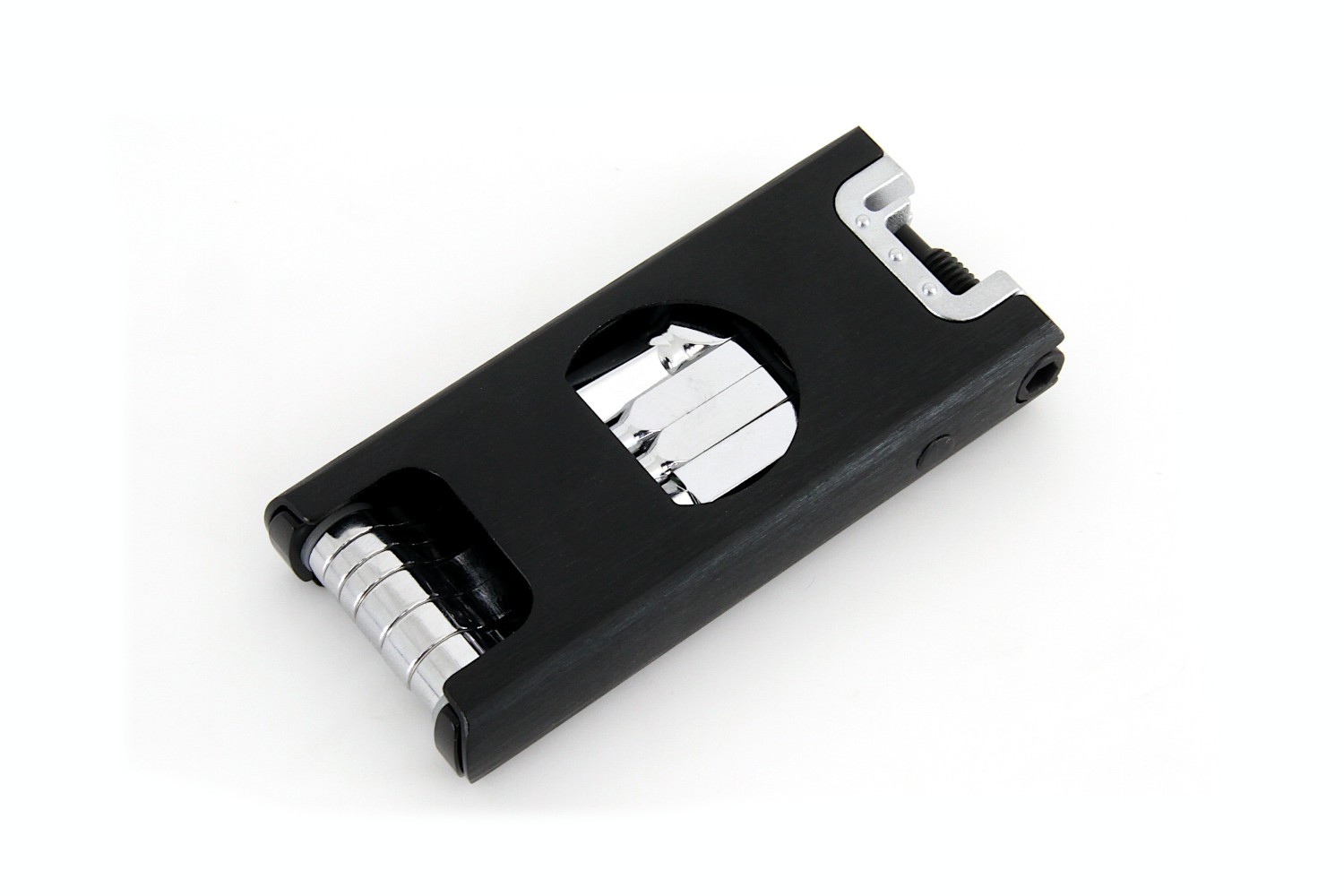

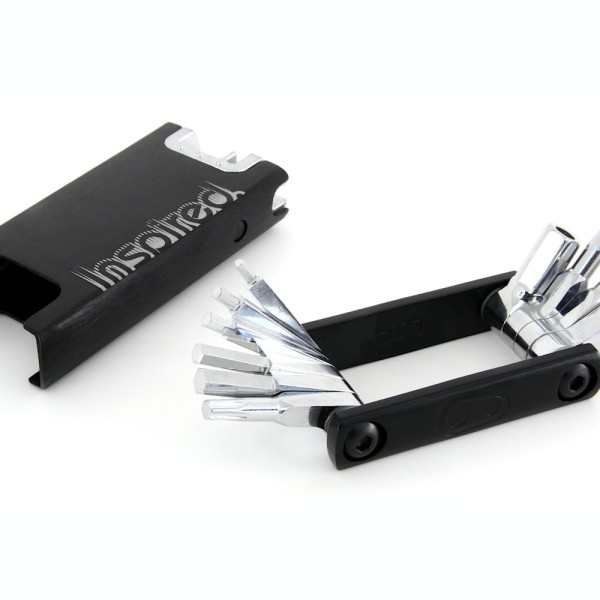

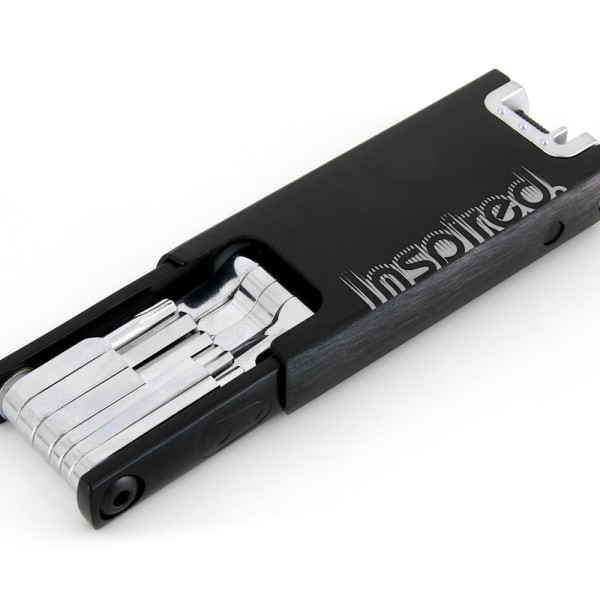

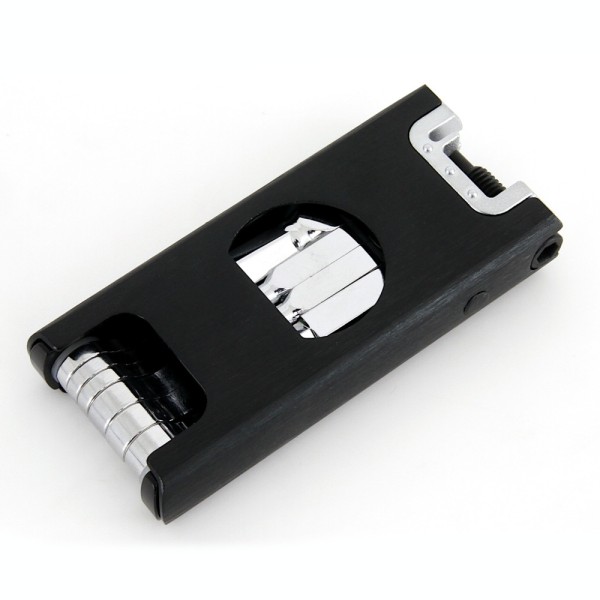

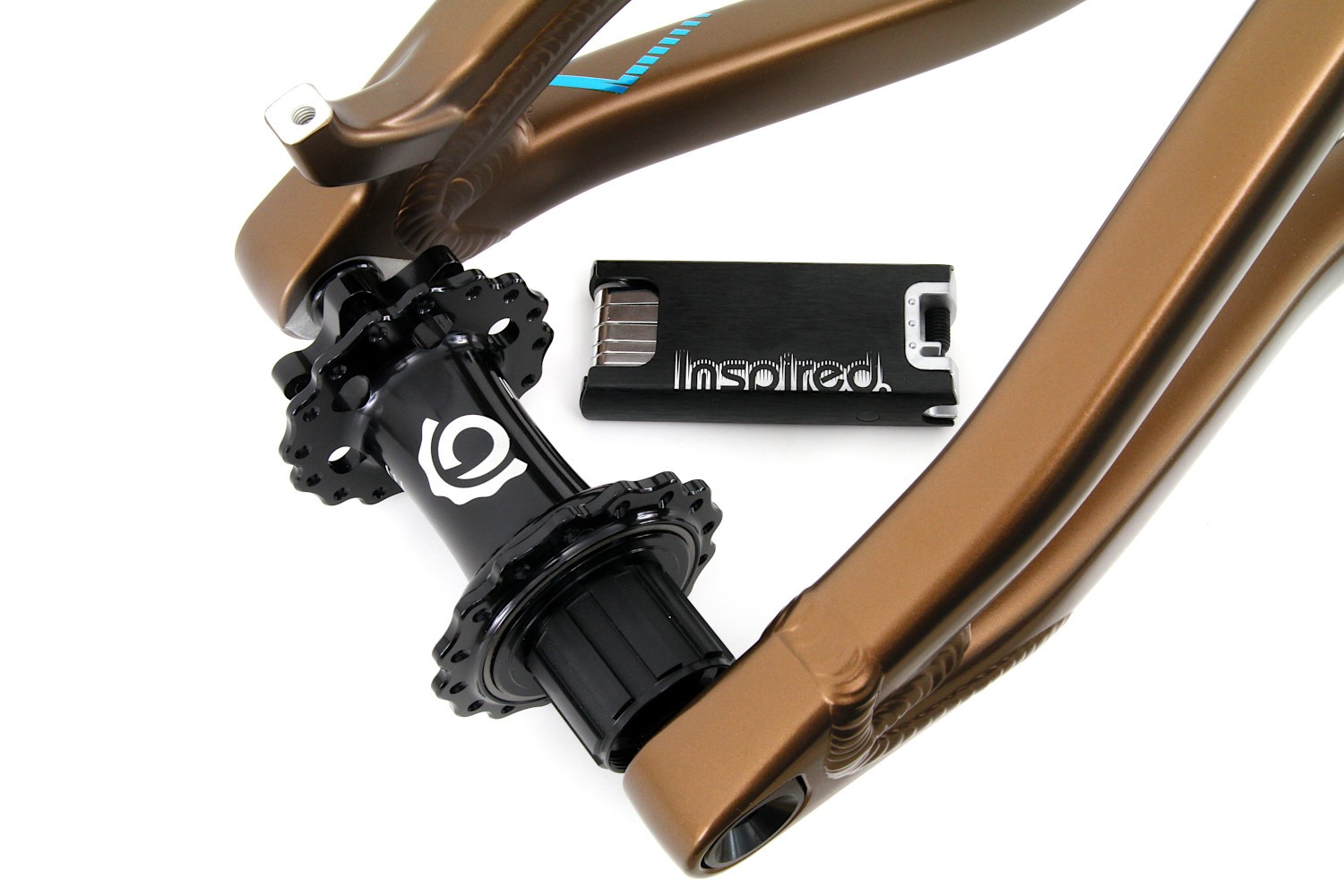

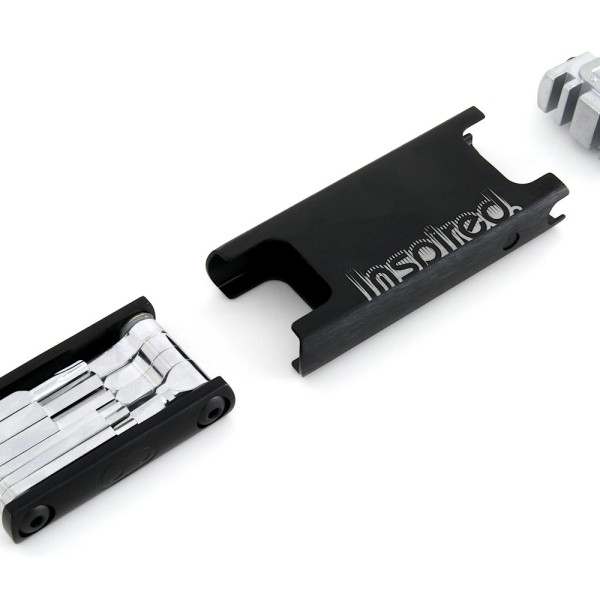

Supplied with a custom Crankbrothers F15 tool in a unique laser etched Inspired case.
Geometry
- Wheelbase: 988mm (measured with Fourplay fork)
- Chainstay: 362mm
- BB Height: +15mm
- Head Angle: 74˚
Specification
- Seatpost: 27.2mm
- Seatclamp: 31.8mm
- BB shell: 73mm
- Tyre clearance: 24 x 2.7"
- Headtube: Tapered (1-1/8" Integrated Upper, 1.5" Integrated Lower)
- Dropouts: 12mm bolt through, 135mm spacing
- Chainline: 51mm (Recommended minimum with 22T chainring)
- Disc Mount: +20mm Post Mount (Designed to run a maximum rotor size of 185mm, using a larger rotor will void the warranty)
Documentation
20mm Fork Axle Assembly Instructions (0.6MB)
12mm Frame Axle Assembly Instructions (0.6MB)
Team Sprung Tensioner Instructions (1.6MB)
Please Note: Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
