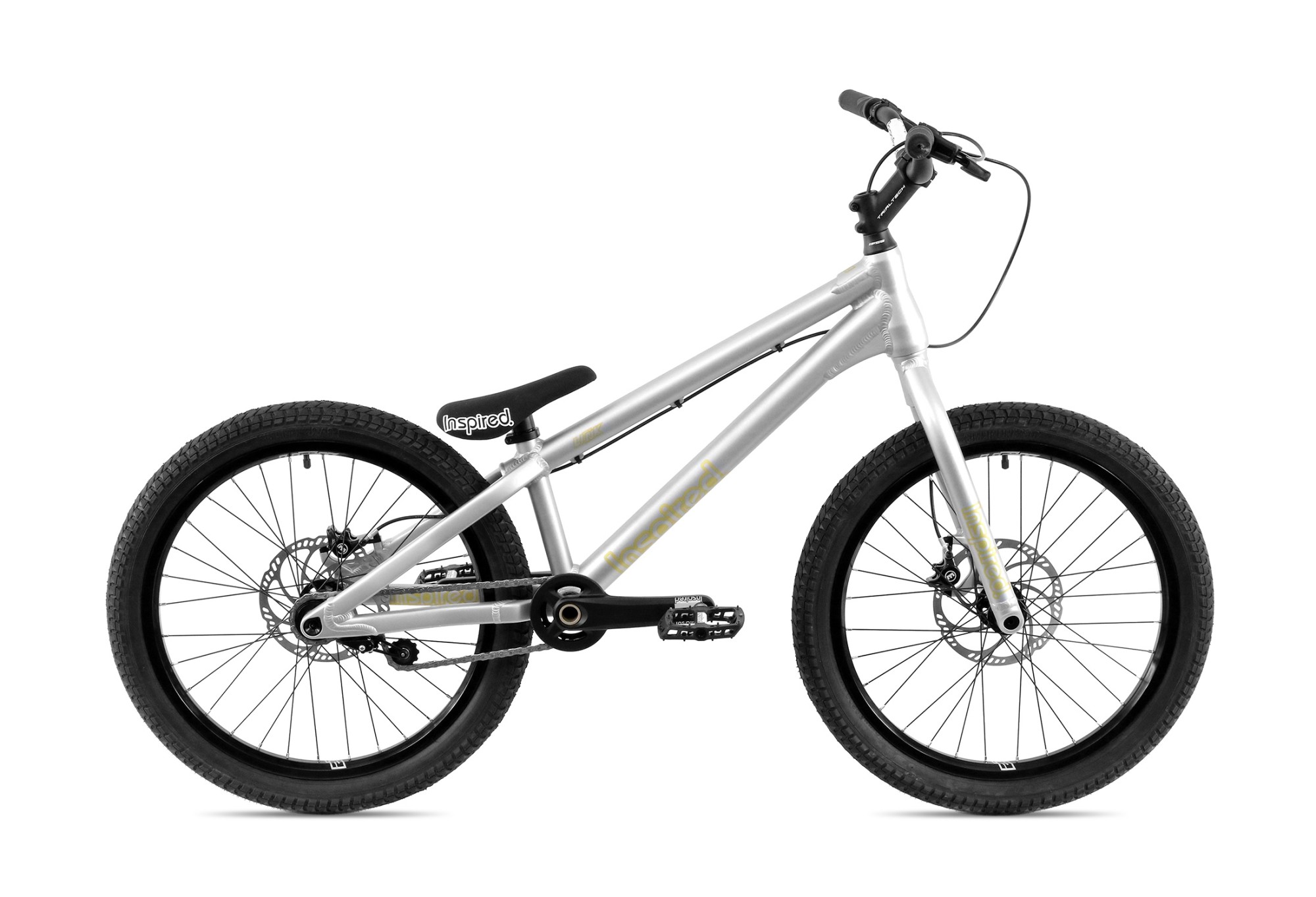

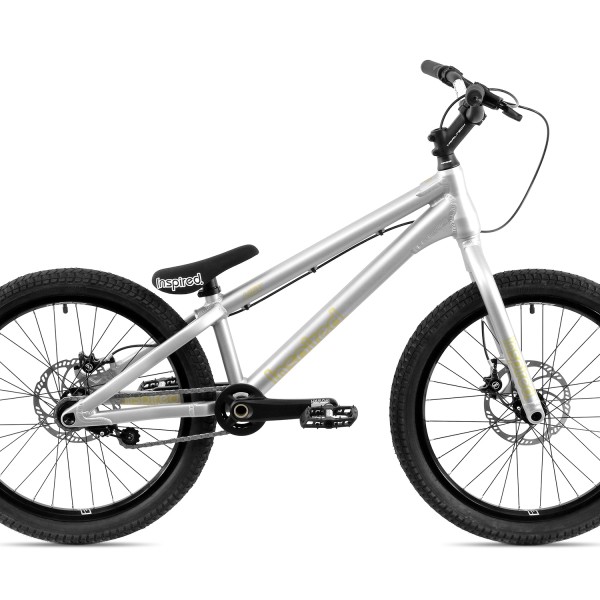

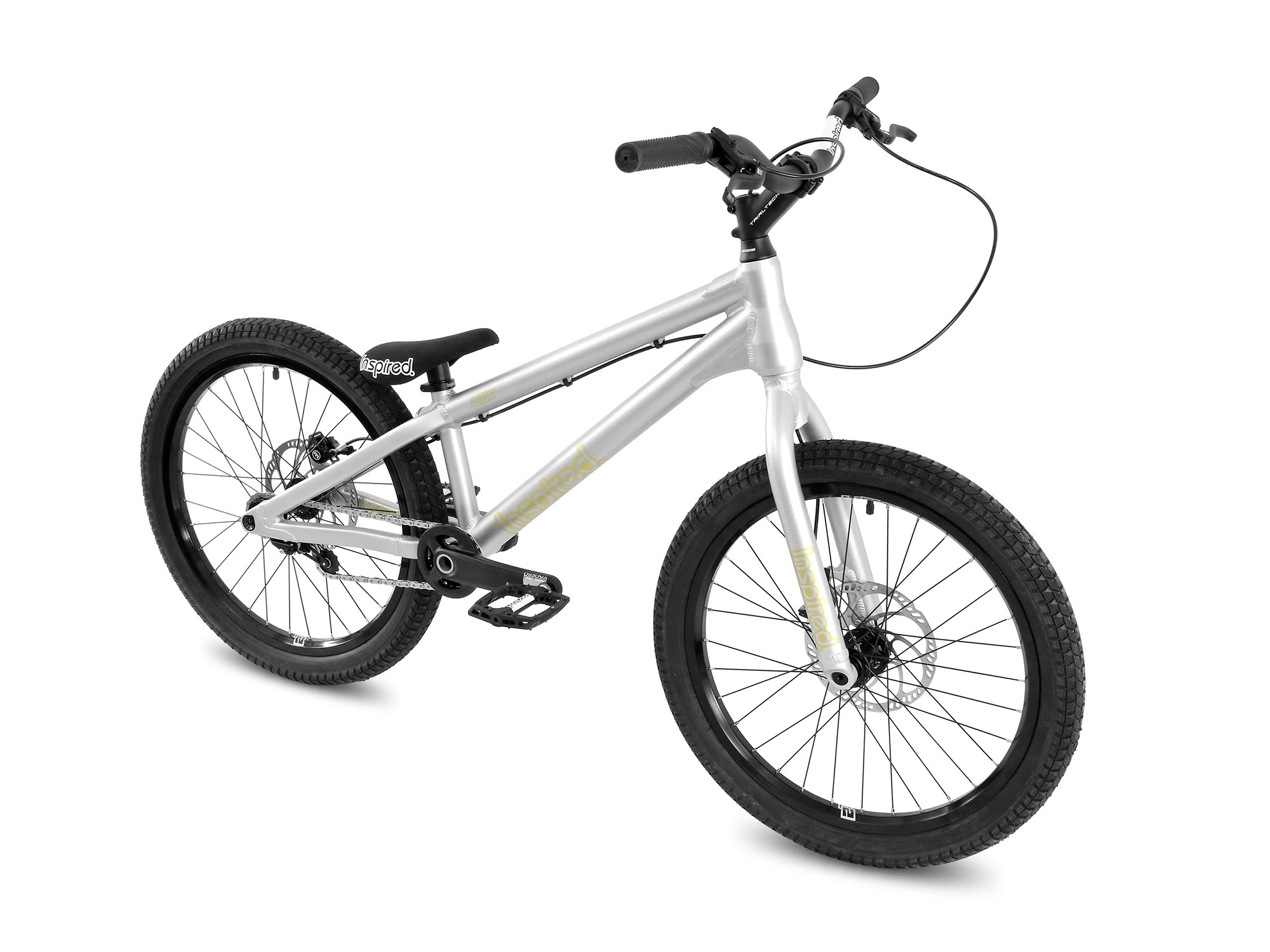

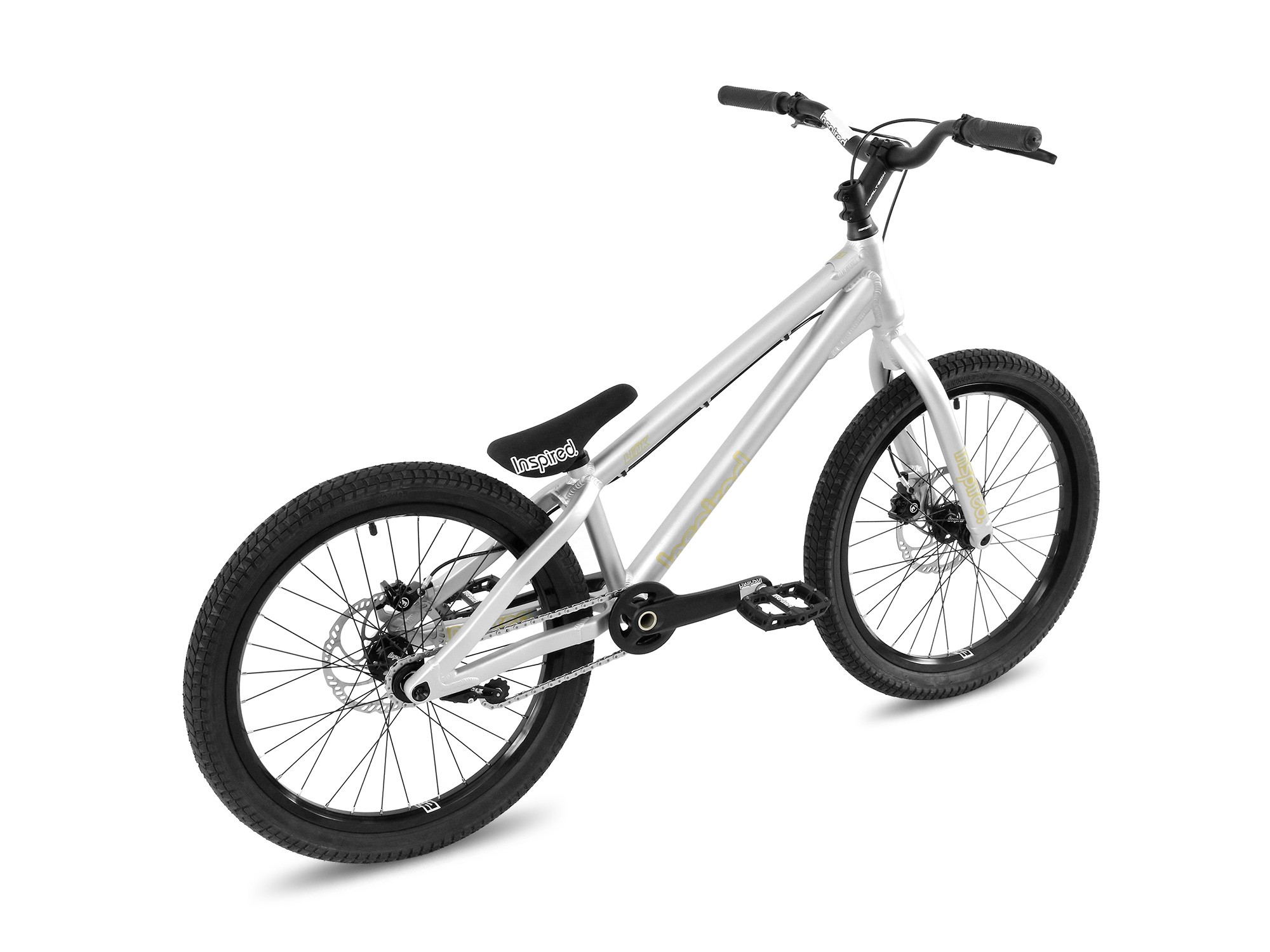

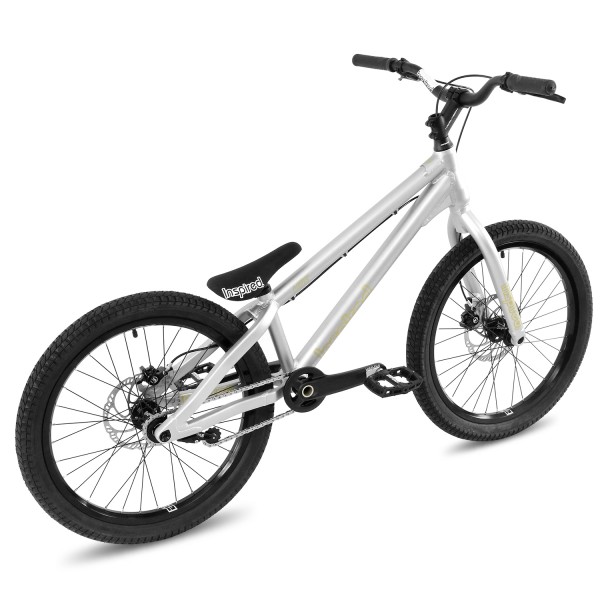

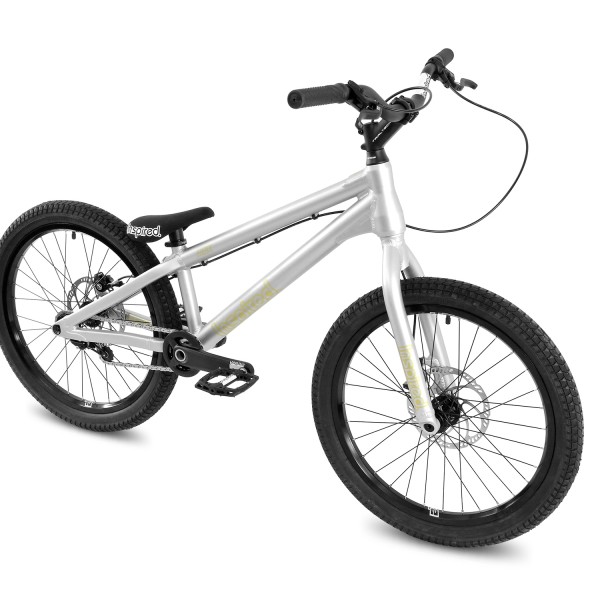

The Inspired Link Pro features our top-of-the-range 22" Link frame kit, built with a selection of great value, high performance parts.

Sharing many of the features of our market-leading Fourplay bikes, the Link brings those technologies to shorter riders, or those who prefer the smaller 22" wheel size. Through testing and development with team rider Yuki Kishi, the geometry is carefully chosen to make it ideally suited for progressive street trials riding.

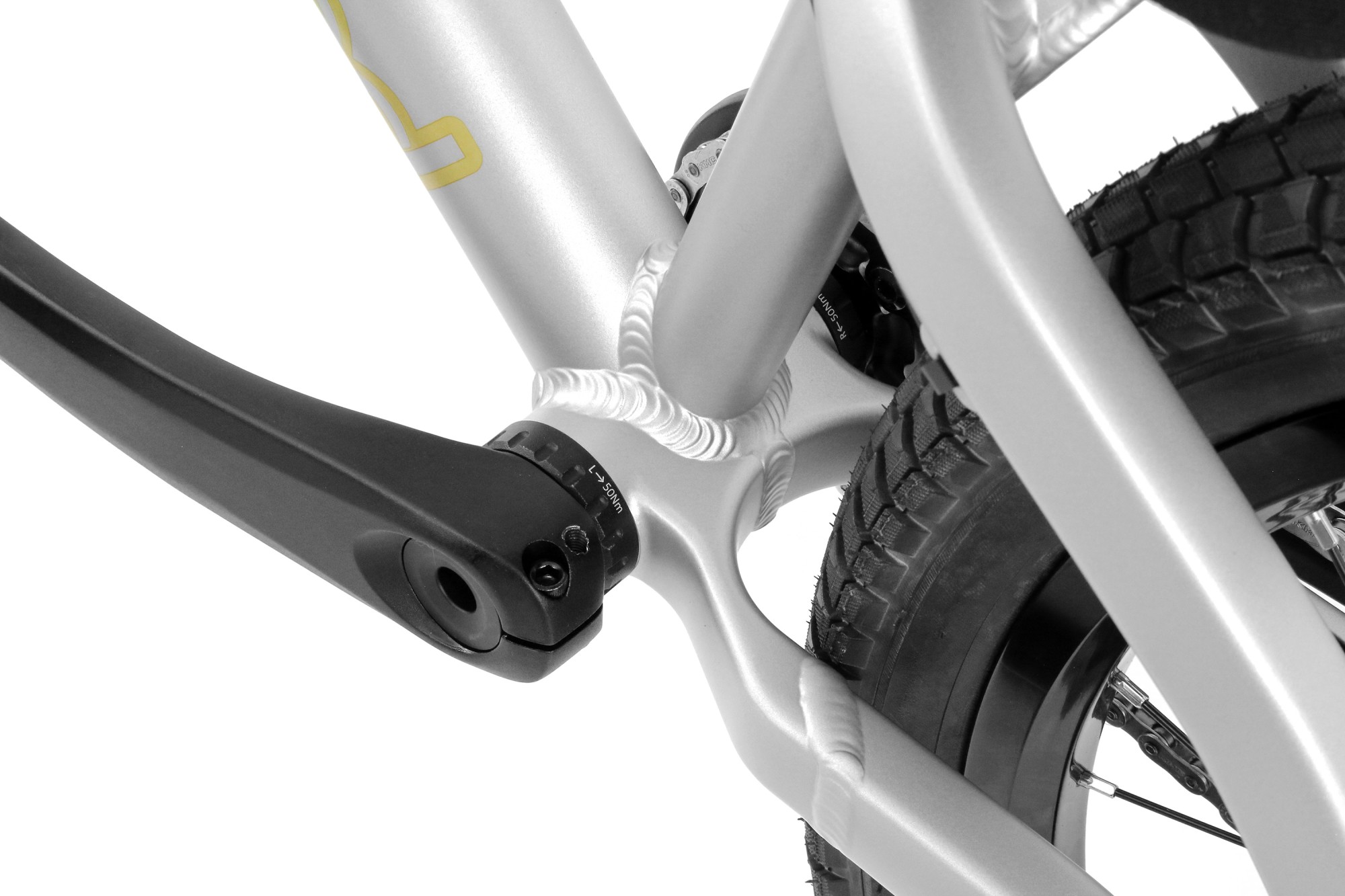

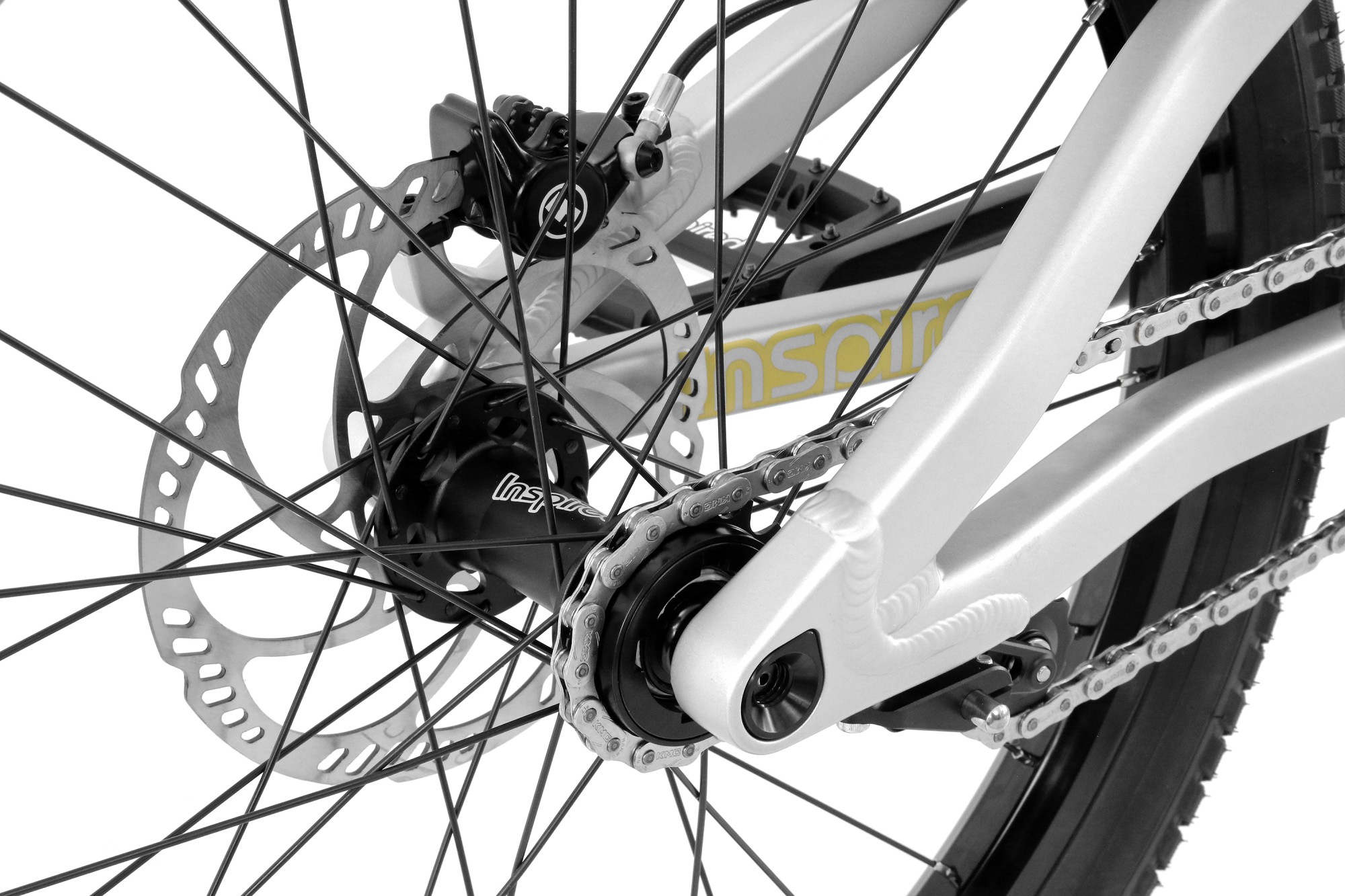

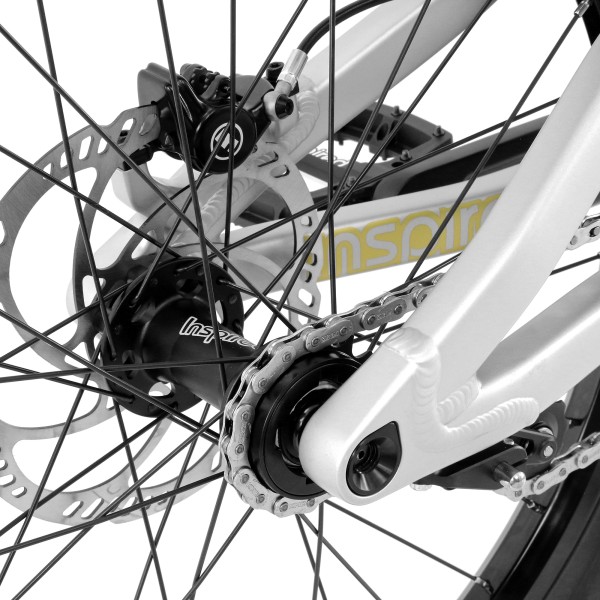

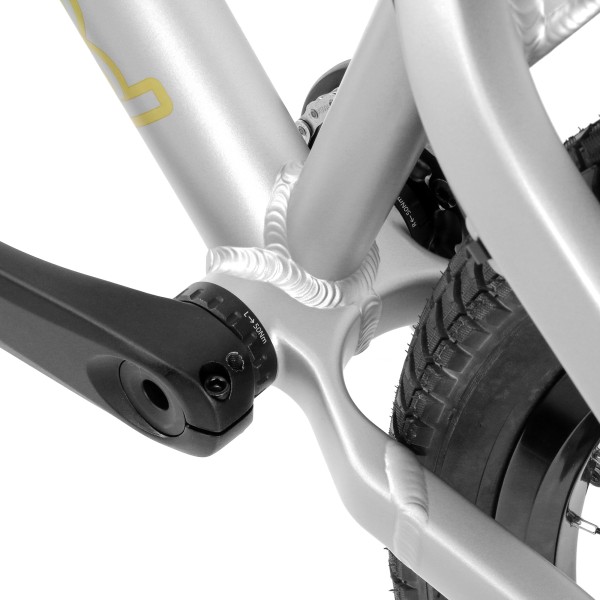

One of the key frame components carried over from the Fourplay is the custom hollow chainstay and bottom bracket yoke. This allows the Link to have shorter chainstays while maintaining the strength and stiffness required for big trials moves. At the rear of the frame, a 12mm bolt through axle (secured in a matching custom tapered insert) ensures that everything stays in place no matter what you throw at it.

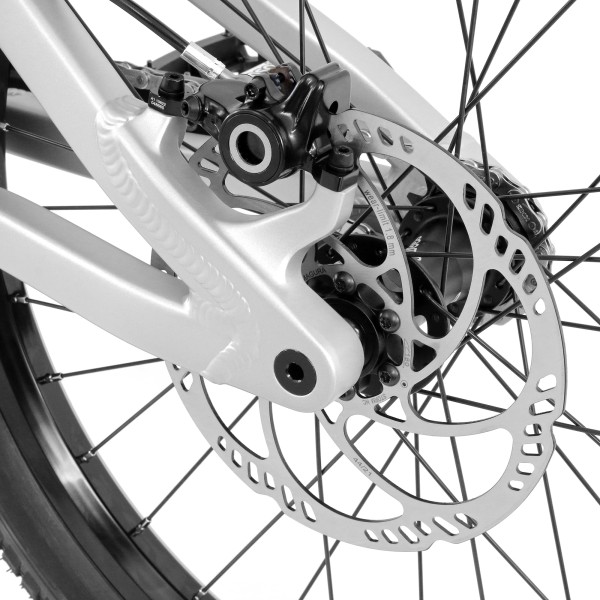

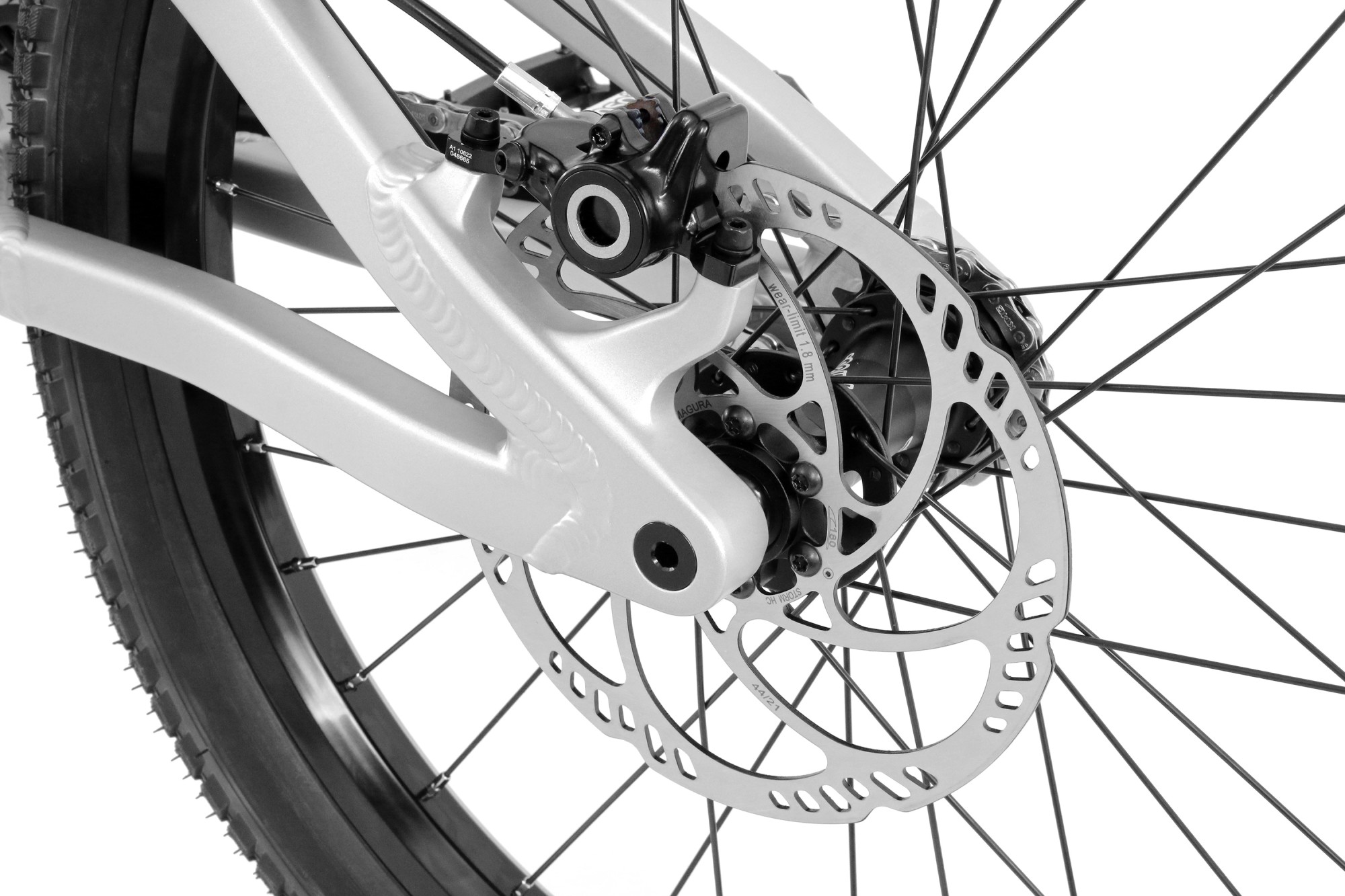

The frame and fork feature reinforced Post Mount disc brake mounts (fits 180mm rotors) thereby removing the need for additional brake caliper adaptors. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. Exclusive-design seat and chainstay tubing improves both crank and heel clearance while the custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

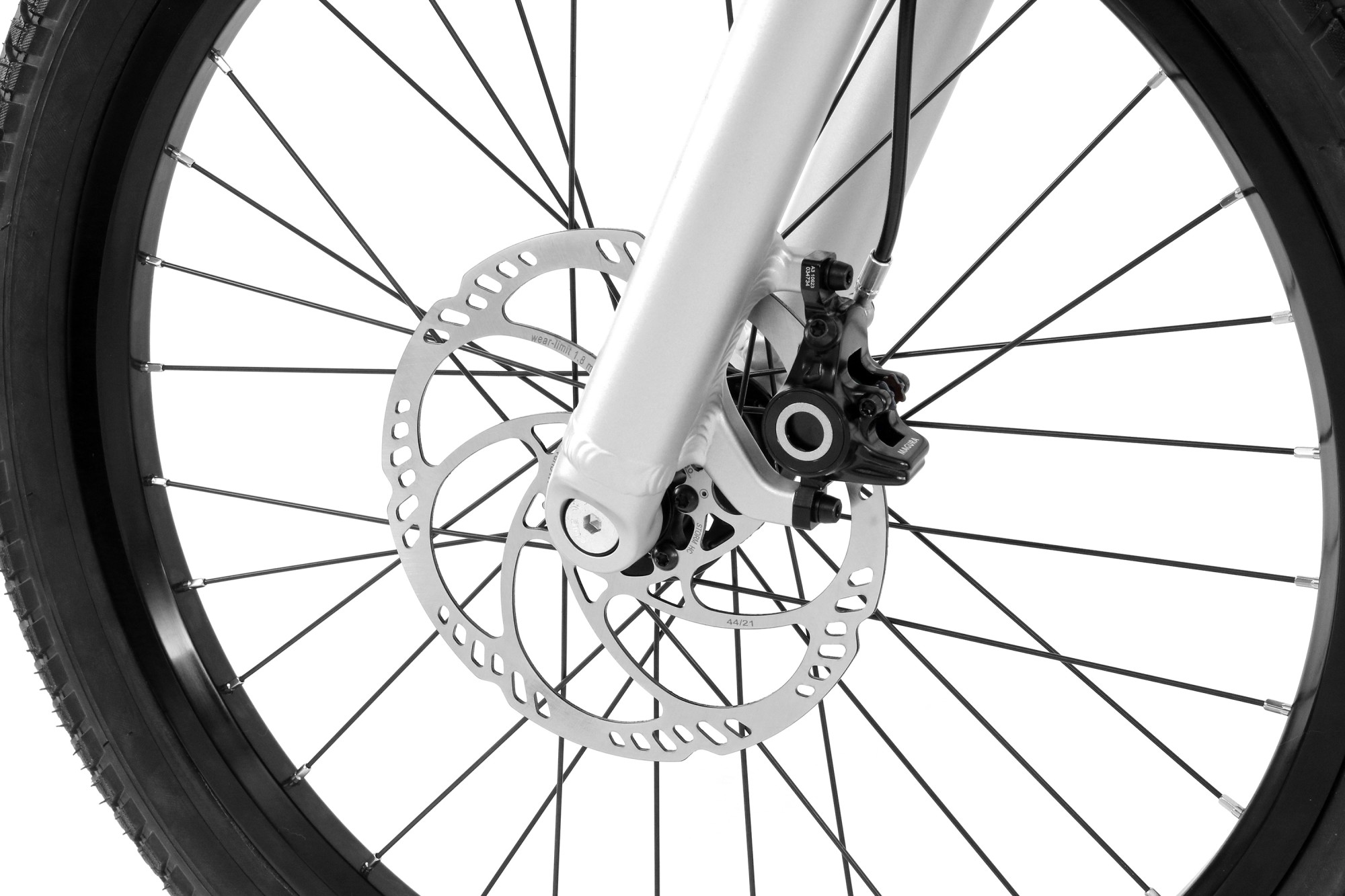

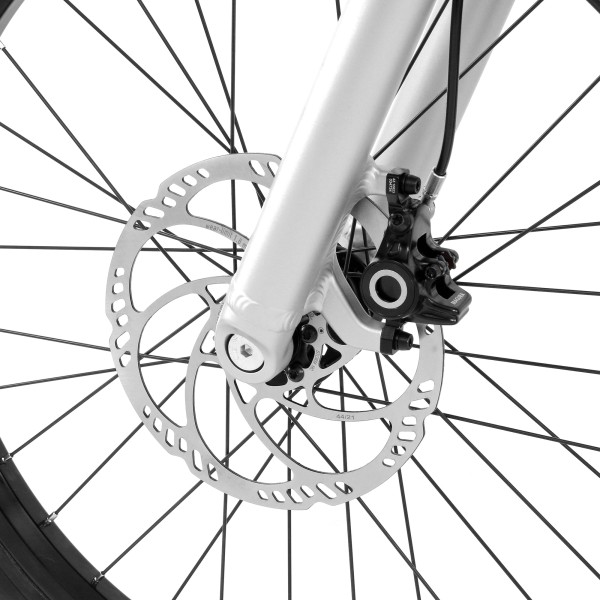

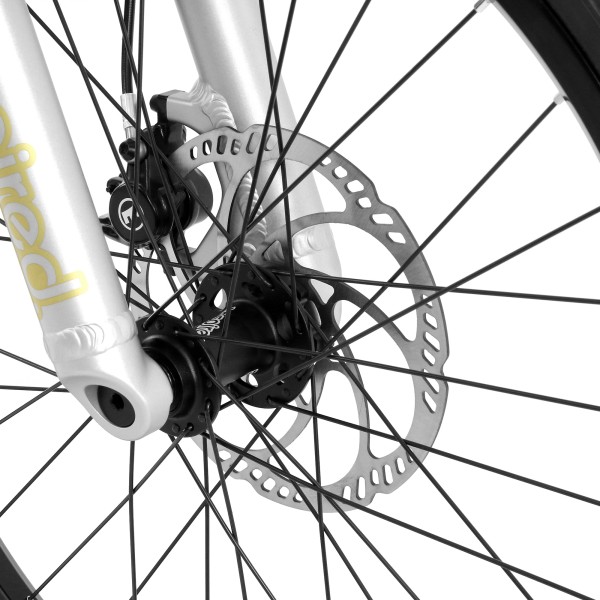

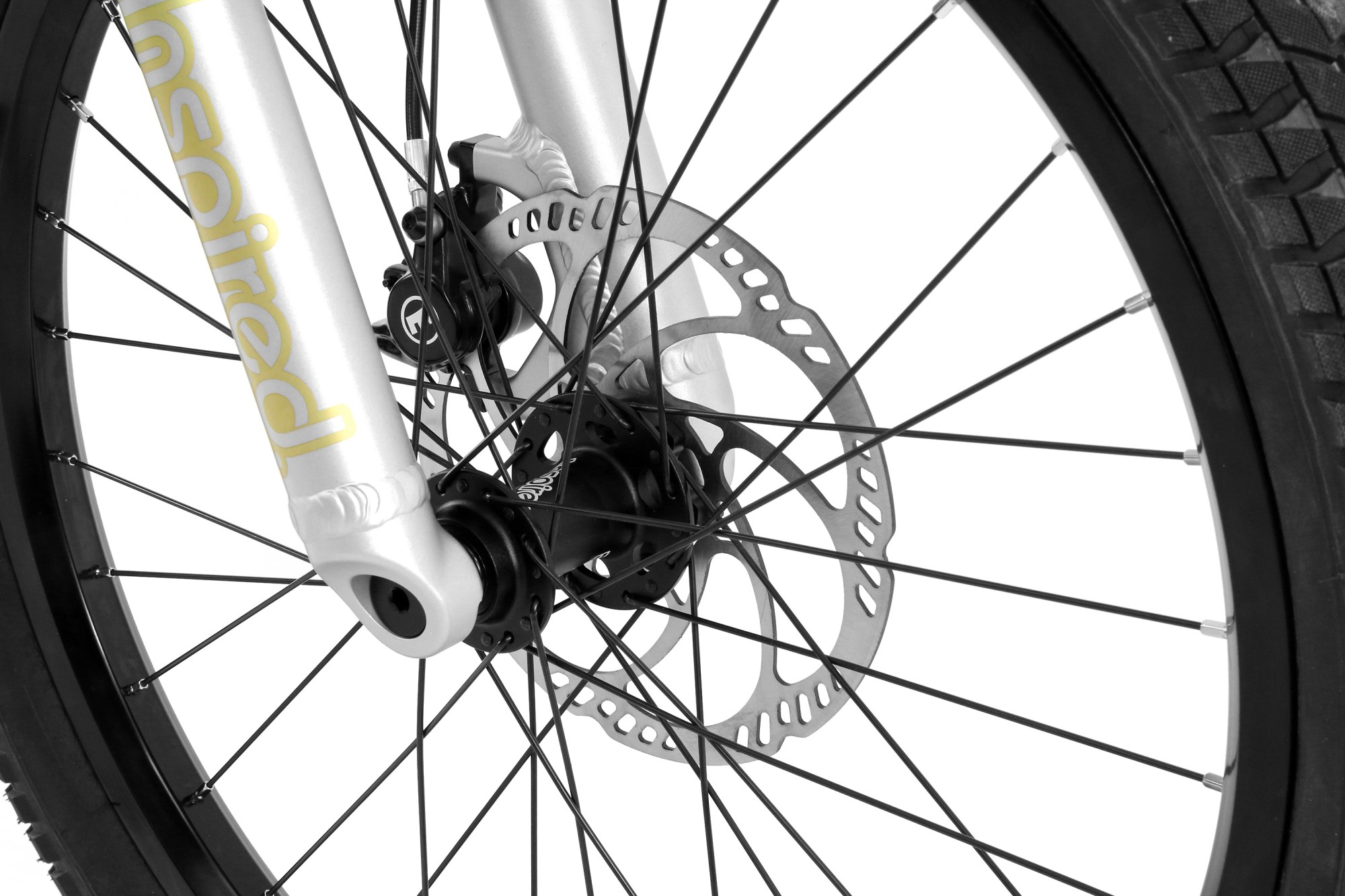

The Link fork features the same tapered steerer tube and innovative crown construction found on the Fourplay fork. The 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. Front brake hose steerer tube routing is made easy courtesy of the screw-in CNC-machined top cap.

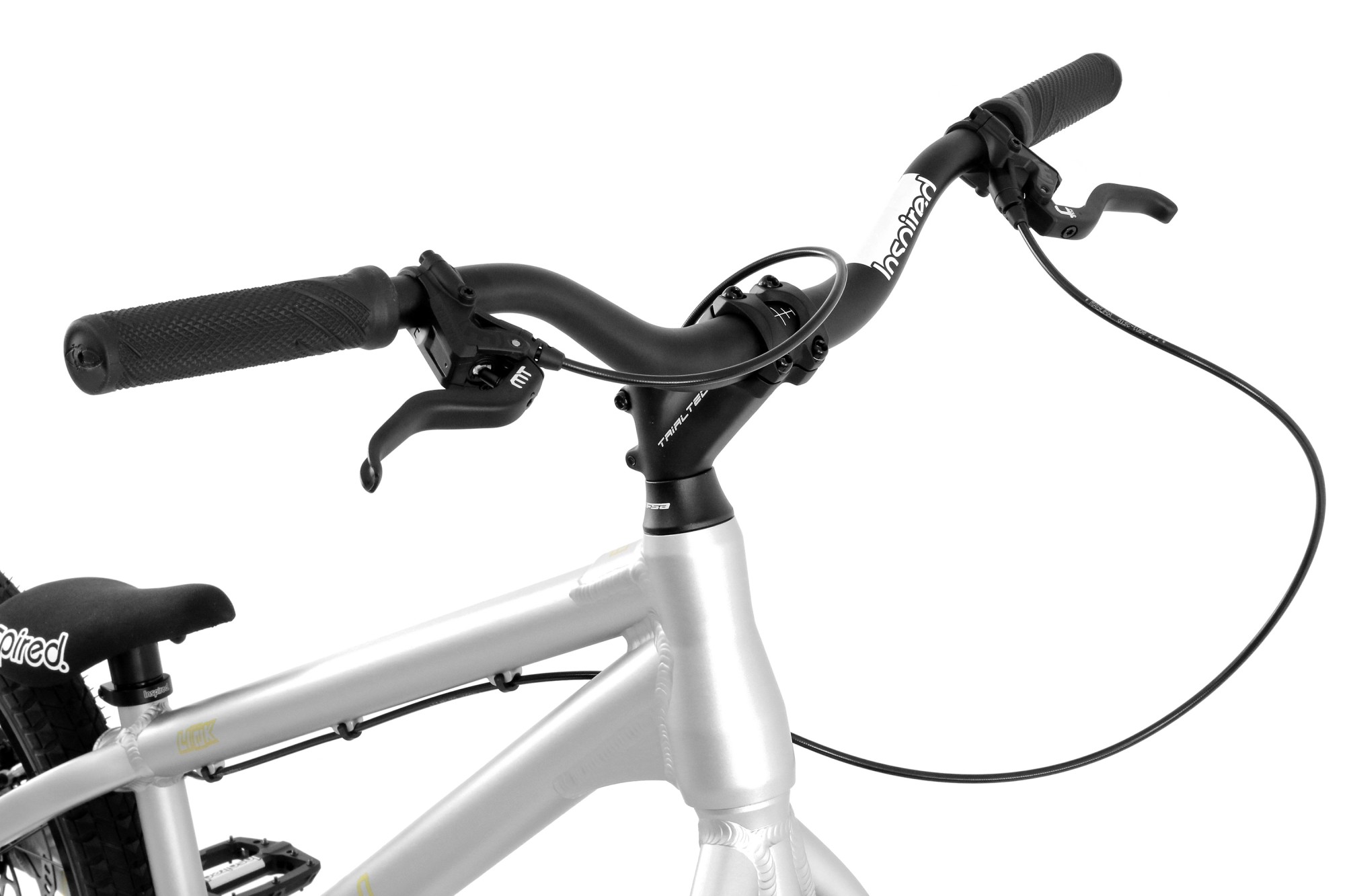

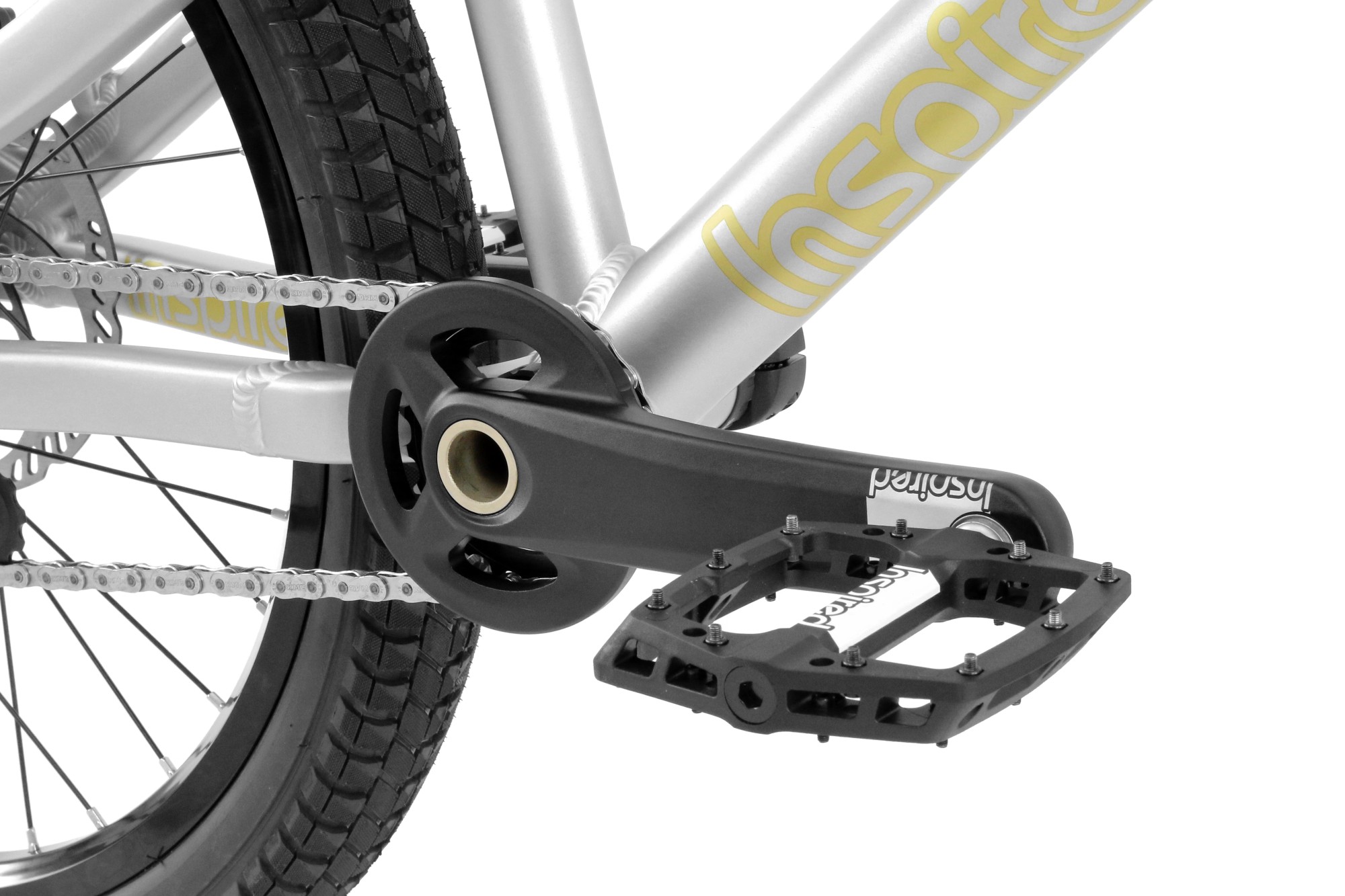

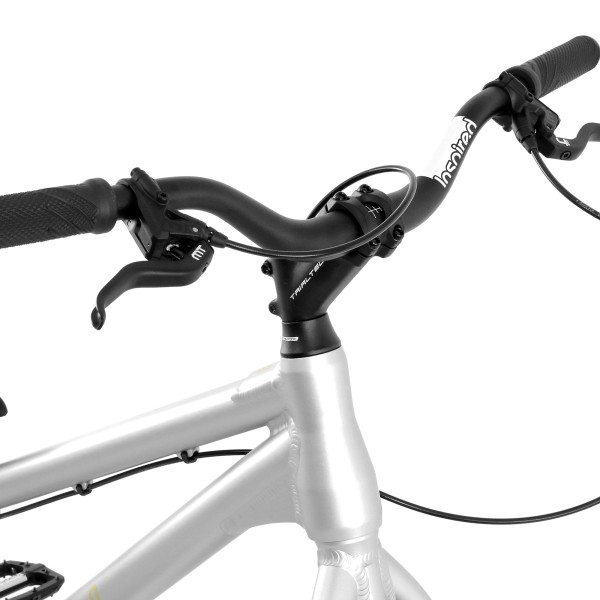

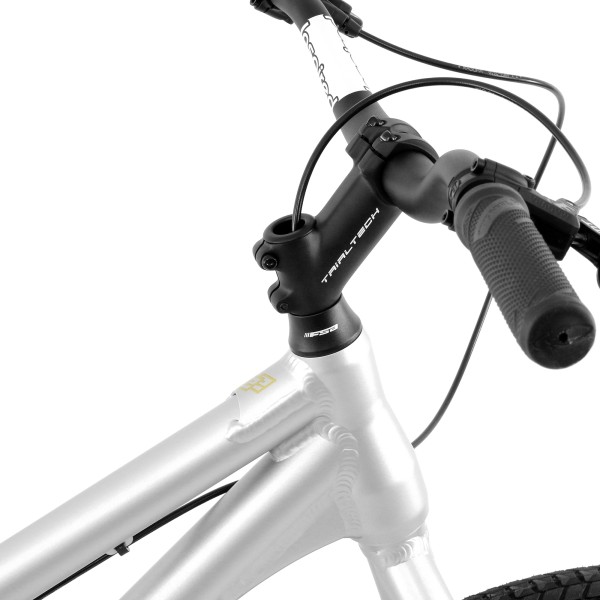

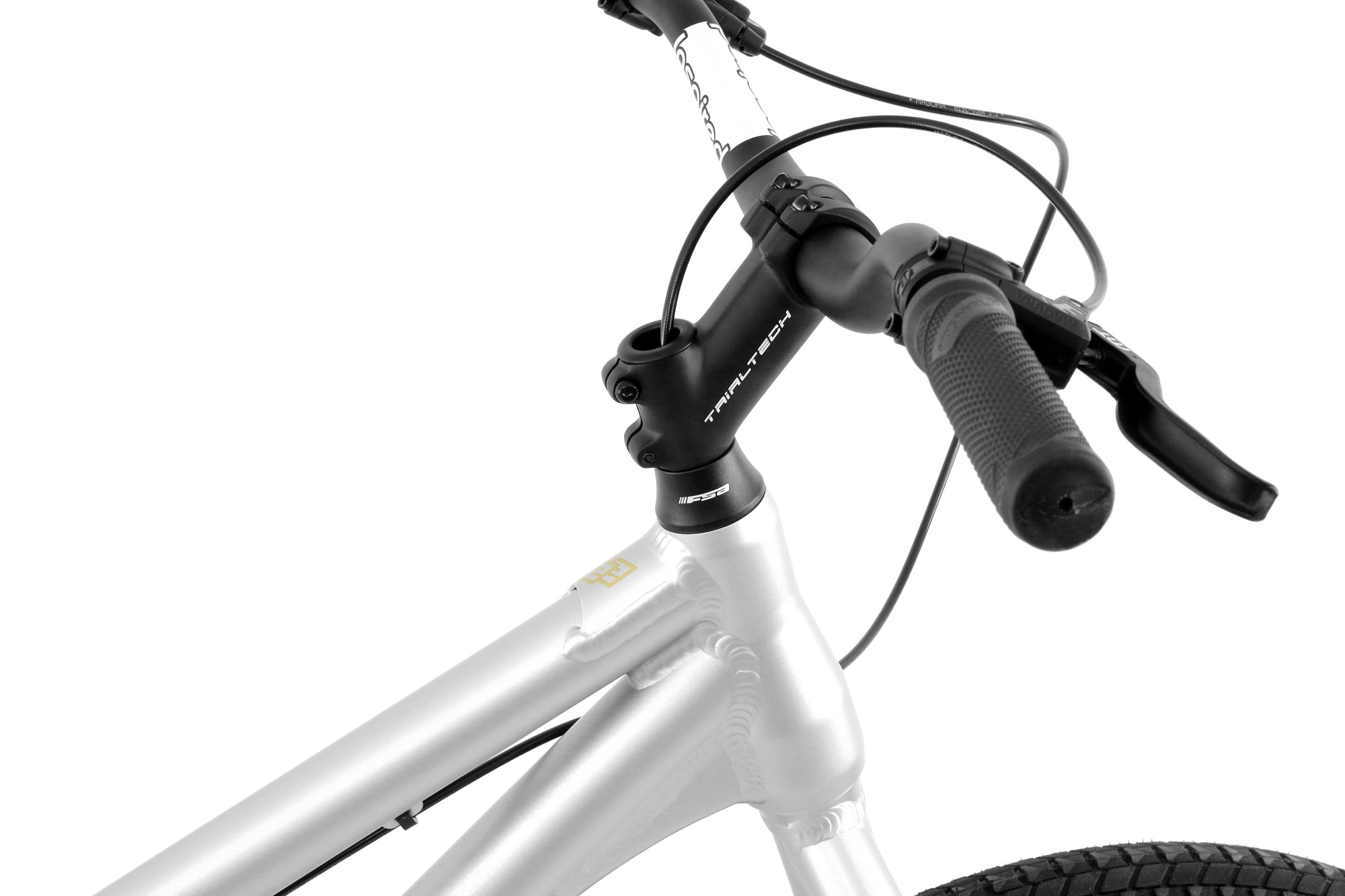

Built with a range of products from brands including Trialtech, KMC and FSA, no corners have been cut to get the durable and quality bike spec we wanted for a reasonable price. Up front is an Inspired Pro riser bar with Trialtech Sport stem and FSA taper headset. Custom Inspired Pro crankset with integrated bashring creates the platform for an excellent drivetrain with a KMC chain, Inspired Pro composite platform pedals and custom single sided sprung chain tensioner completing the setup. Braking duties are taken care of by Magura MT4 hydraulic disc brakes front and rear, giving the rider the necessary level of control they require. For the wheels, Inspired Link 22" rims are built onto Inspired super-smooth bolt through disc hubs front and rear with S&M Mainline 2.4" tyres.

Also available with Hope Tech 3 - Trial Zone, Magura MT7 HC3 or Hope Tech 4 - Trial Zone brake upgrade packages*.

Available in Satin Silver with Gold graphics.

Suggested height: 1.35m/4ft 6in - 1.73m/5ft 8in

THROUGH AXLES
15mm front and 12mm rear through axles for maximum stiffness

INSPIRED DISC HUBS
Top quality sealed disc hubs front and rear

THREADED TOP CAP
CNC-machined top cap allows for easy headset preloading and steerer tube hose routing

HYDRAULIC BRAKES
Magura MT4, Magura MT7 HC3 or Hope Tech 3/4 Trial Zone brakes available

PRO SERIES PARTS
Inspired Pro Series cranks, rim and pedals as standard.

Technical Data

Frame

- Frame: Inspired Link 22", 6066-T6 aluminium alloy, Satin Silver

Compatibility
- Through axle: 135 x 12mm
- Bottom bracket: 73mm BSA
- Headset type: Tapered Integrated, 1 1/8" Upper, 1.5" Lower
- Seat tube diameter: 27.2mm
- Brake mount: 180 Post Mount

Fork

- Inspired Link, Tapered Steerer Tube, 15mm Bolt Through Axle, Satin Silver

Compatibility
- Steerer tube: 1 1/8" to 1.5" tapered
- Through axle: 100 x 15mm
- Brake mount: 180 Post Mount

Brakes

- Brakes: Magura MT4, 180mm Storm HC Rotors

Optional Upgrades*
- Hope Tech 3 Trial Zone, 180mm Trial Zone V2 Rotors
- Magura MT7 HC3, 180mm Storm HC Rotors
- NEW Hope Tech 4 Trial Zone, 180mm Trial Zone V2 Rotors

Drivetrain

- Cranks: Inspired Pro Integrated 24mm, 175mm, Satin Black
- Front Sprocket: 22T Inspired Pro Integrated, Black
- Chain: KMC Z1eHX-N
- Rear Sprocket: Trialtech Sport 16T, 72 engagement
- Pedals: Inspired Pro Composite Sealed Bearing Platform, Black
- Bottom Bracket: Inspired Pro 24mm, Black
- Bashring: Inspired Pro Integrated, Satin Black

Wheels

- Front Hub: Inspired Disc V2, 15mm bolt through axle, 32h, 100mm wide, Satin Black
- Rear Hub: Inspired Disc V2, 12mm bolt through axle, 32h, 135mm wide, Satin Black
- Chain Tensioner: Trialtech Sport Single Sided Sprung, Black
- Rims: Inspired Link, 22", Black
- Tyres: S&M Mainline 22" x 2.4"

Steering

- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black
- Stem: Trialtech Sport, 90mm x 35˚, Satin Black
- Grips: Lizard Skins 'MacAskill' Rubber, Black
- Handlebars: Inspired Pro Riser, Satin Black

Geometry

- Wheelbase: 920mm
- Chainstay: 337mm
- BB Height: +15mm
- Head Angle: 74˚

Weight
- 10.60kg (including pedals and Magura MT4 brakes)

* Please note: Additional costs apply.
