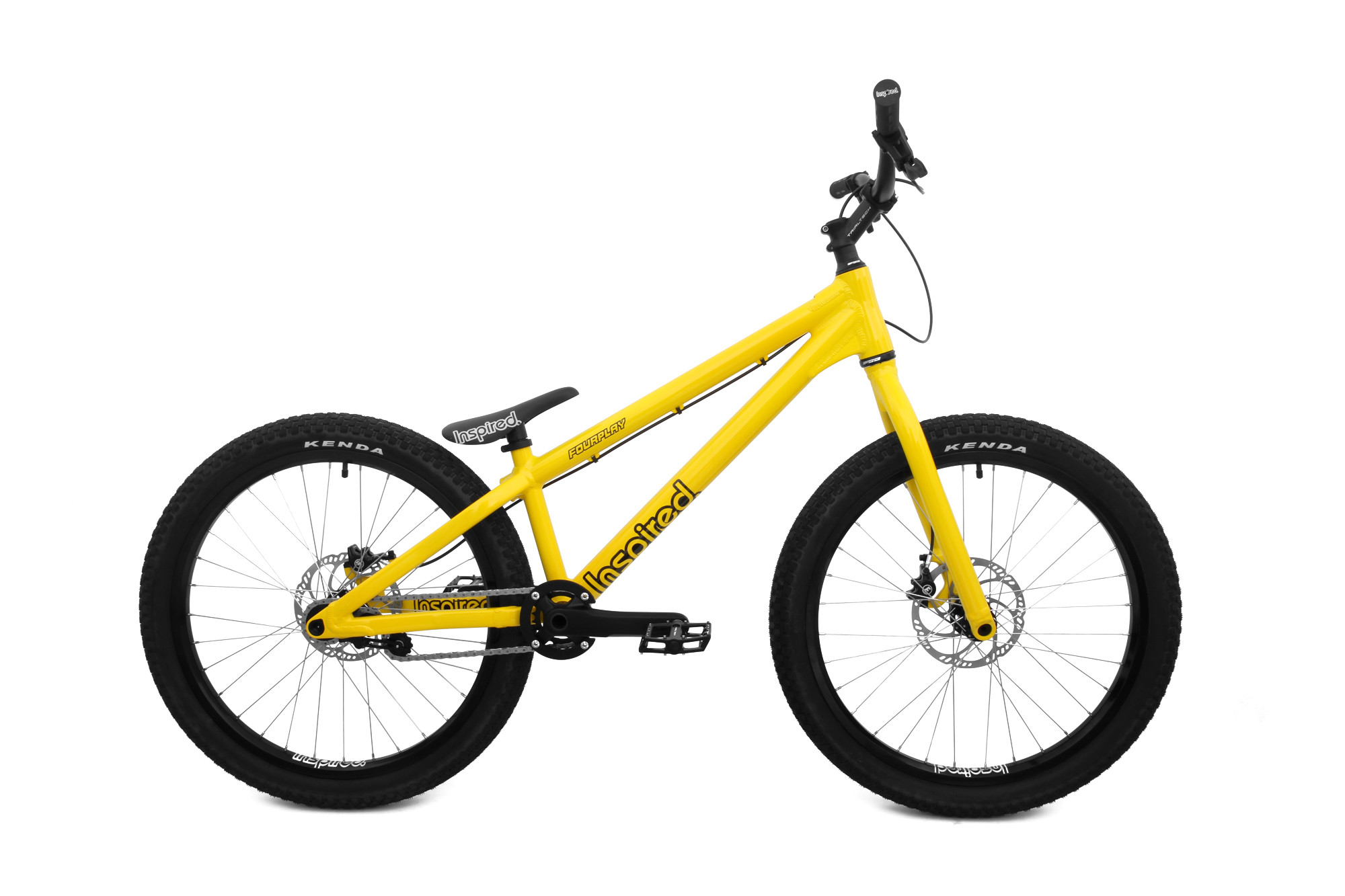

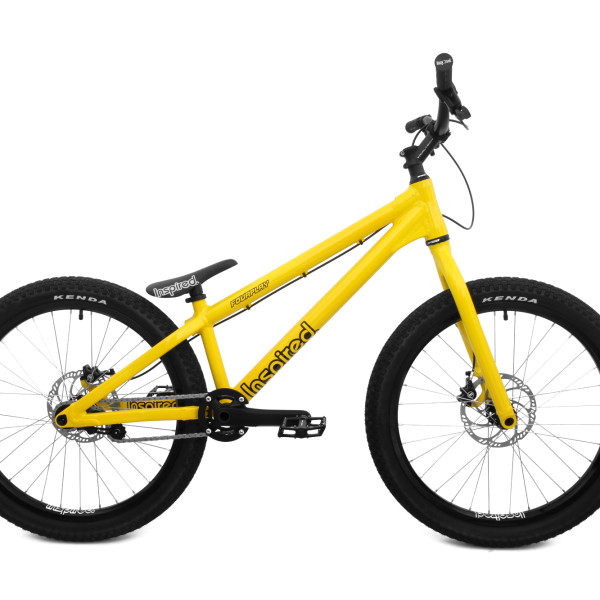

The Inspired Fourplay Fuse features a super high quality frame and fork that means the complete bike with a selection of Inspired and Trialtech parts offers excellent value for money.

Short chainstays and low bottom bracket height help to improve the maneuverability and responsive handling of the Fourplay making it a capable street riding machine. The front of the frame features an upgraded butted tubeset to help increase strength even further and is complemented by using external top and down tube gussets.

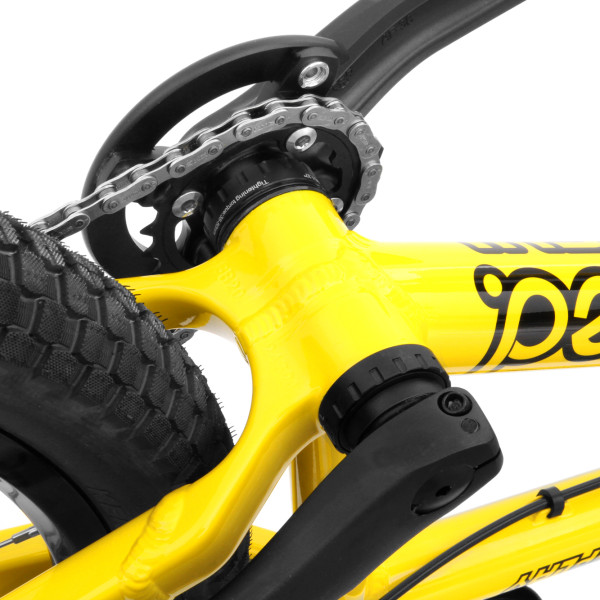

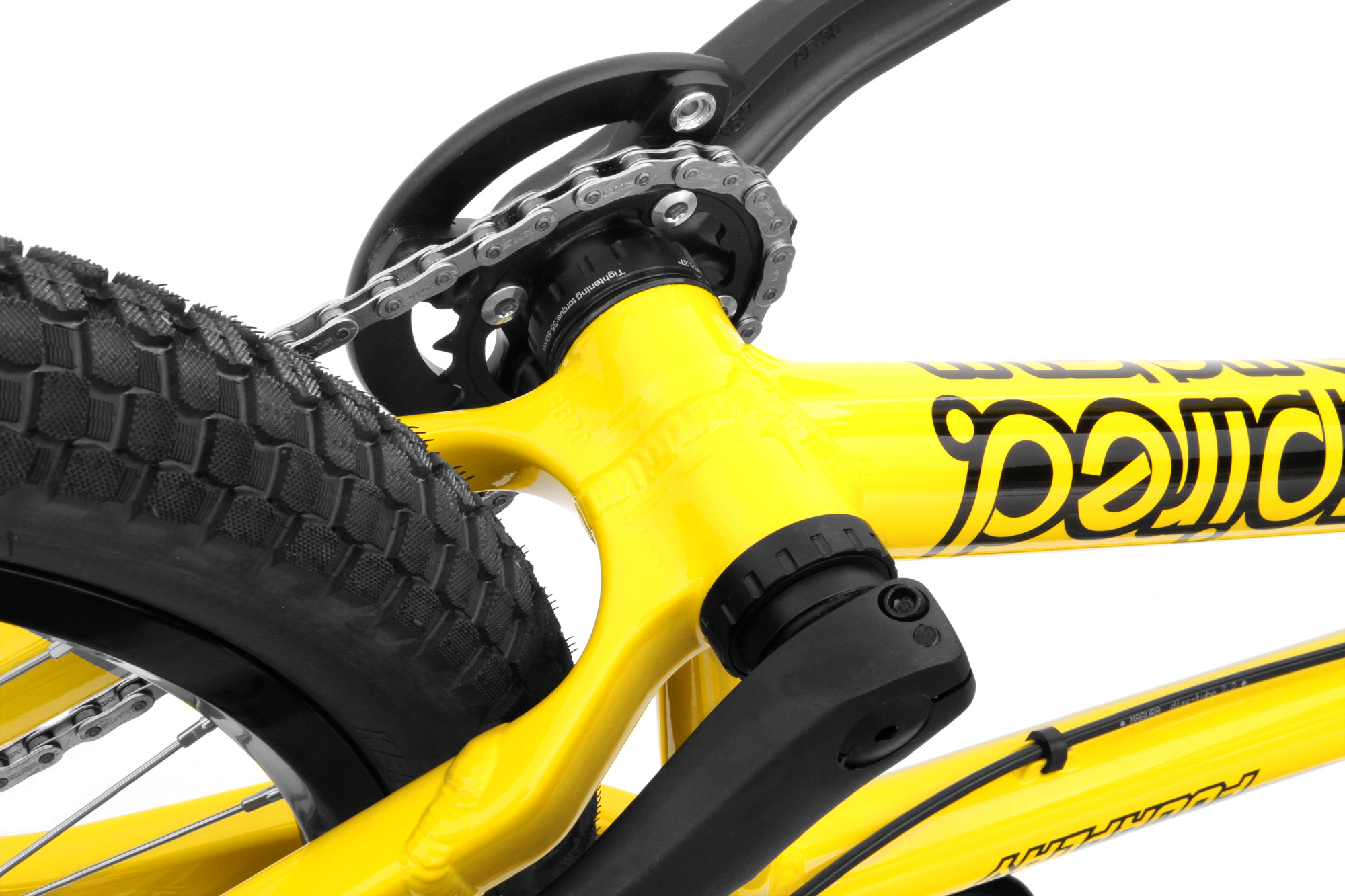

To increase strength, stiffness and tyre clearance the Fourplay uses a custom hollow chainstay and bottom bracket. Excess material has been carefully removed from this area to help reduce the weight while shortening the chainstays and maintaining the associated performance benefits. A 12mm bolt through axle, which screws into a custom tapered insert within the frame dropout, ensures that everything stays in place no matter what you throw at it.

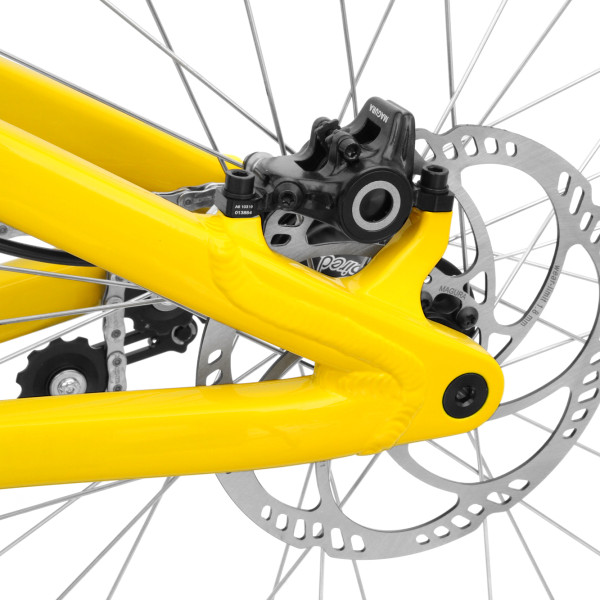

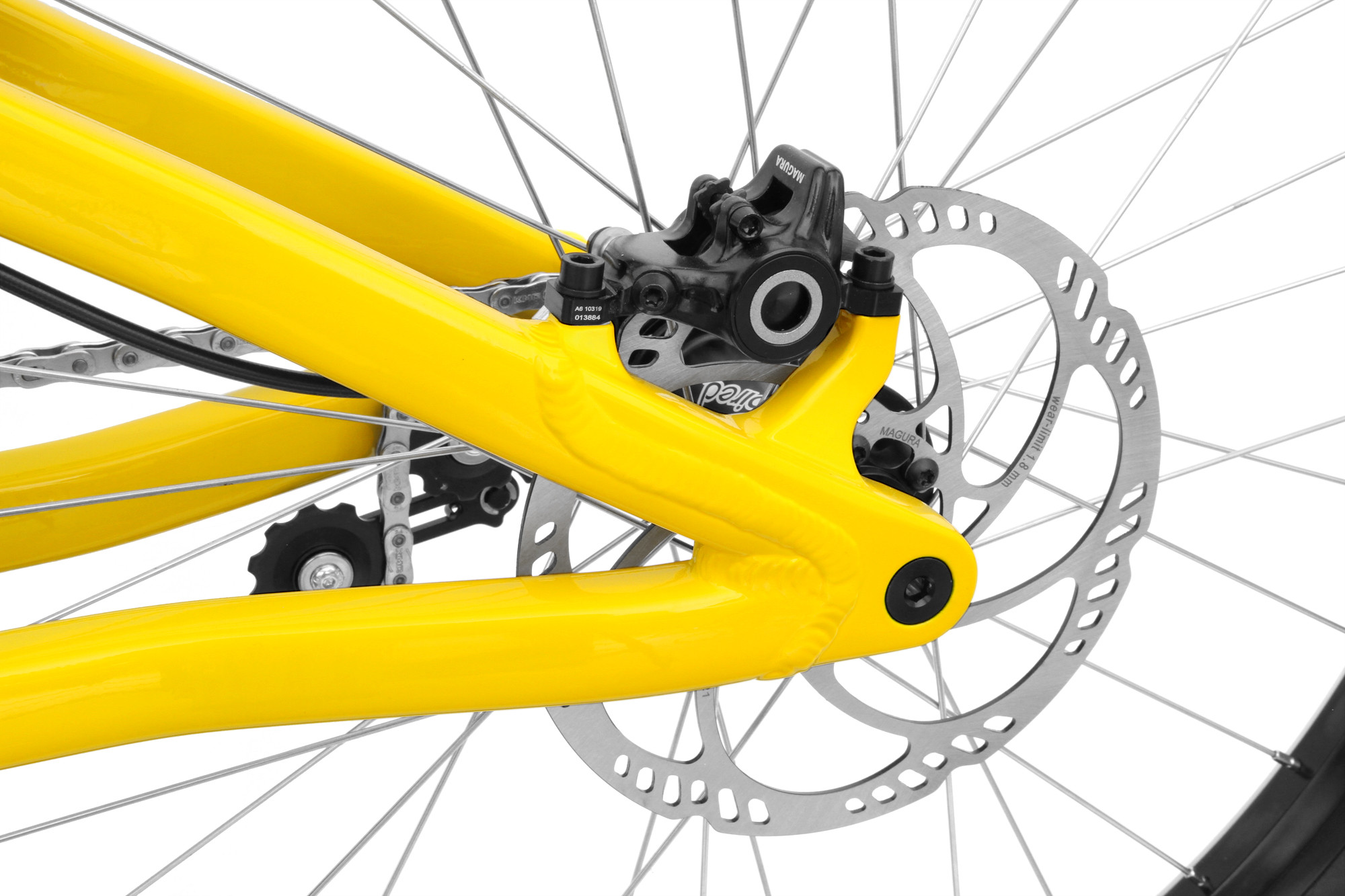

The frame and fork feature reinforced Post Mount disc brake mounts (fits 180mm rotors) thereby removing the need for additional brake caliper adaptors. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. Exclusive-design seat and chainstay tubing improves both crank and heel clearance while the custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

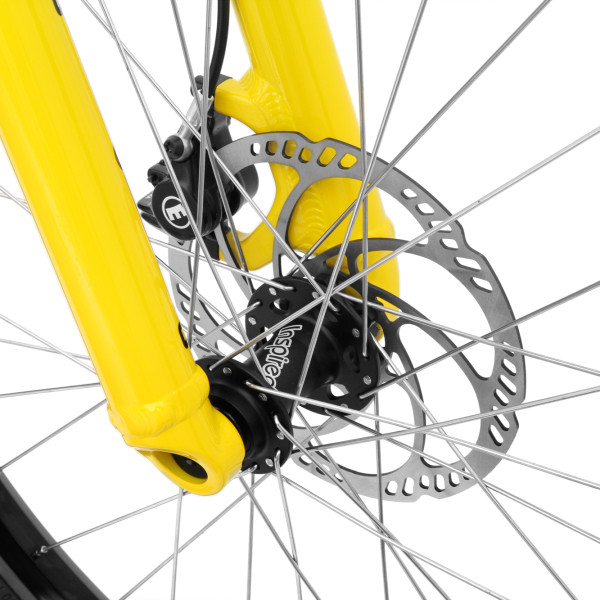

The Fourplay fork features a tapered steerer and innovative crown construction for improved durability and reduced weight. The 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. Furthermore, increased tyre clearance at the fork crown gives better clearance when routing the front brake hose through the steerer tube (via the custom screw-in top cap).

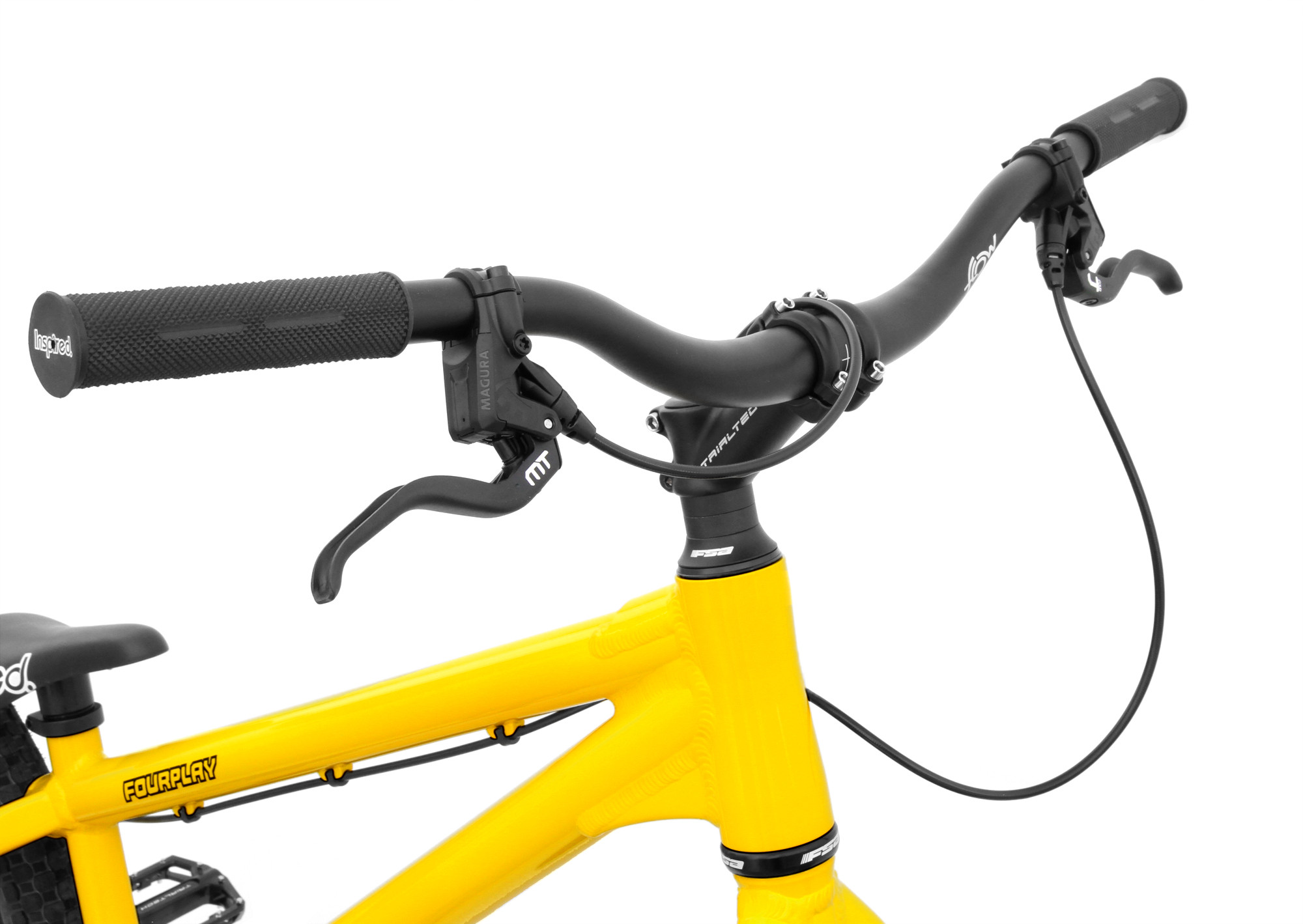

Built with a range of Inspired and Trialtech products, no corners have been cut to get the durable and quality bike spec we wanted for a reasonable price. Up front is an Inspired Flow riser bar with Trialtech stem. Inspired 2-piece alloy cranks and BB create the platform for an excellent drivetrain with a KMC chain and Trialtech platform pedals. Avid's proven BB5 disc brakes make for a simple yet highly effective brake system (bike in photos shown with Magura MT4 Brakes). For the wheels, we decided on Inspired double wall rims built to Inspired super-smooth disc hubs front and rear.

Also available with Magura MT4, Magura MT7 HC3 or Hope Tech 4 EVO - Trial Zone brake upgrade packages*.

Available in Gloss Yellow only.

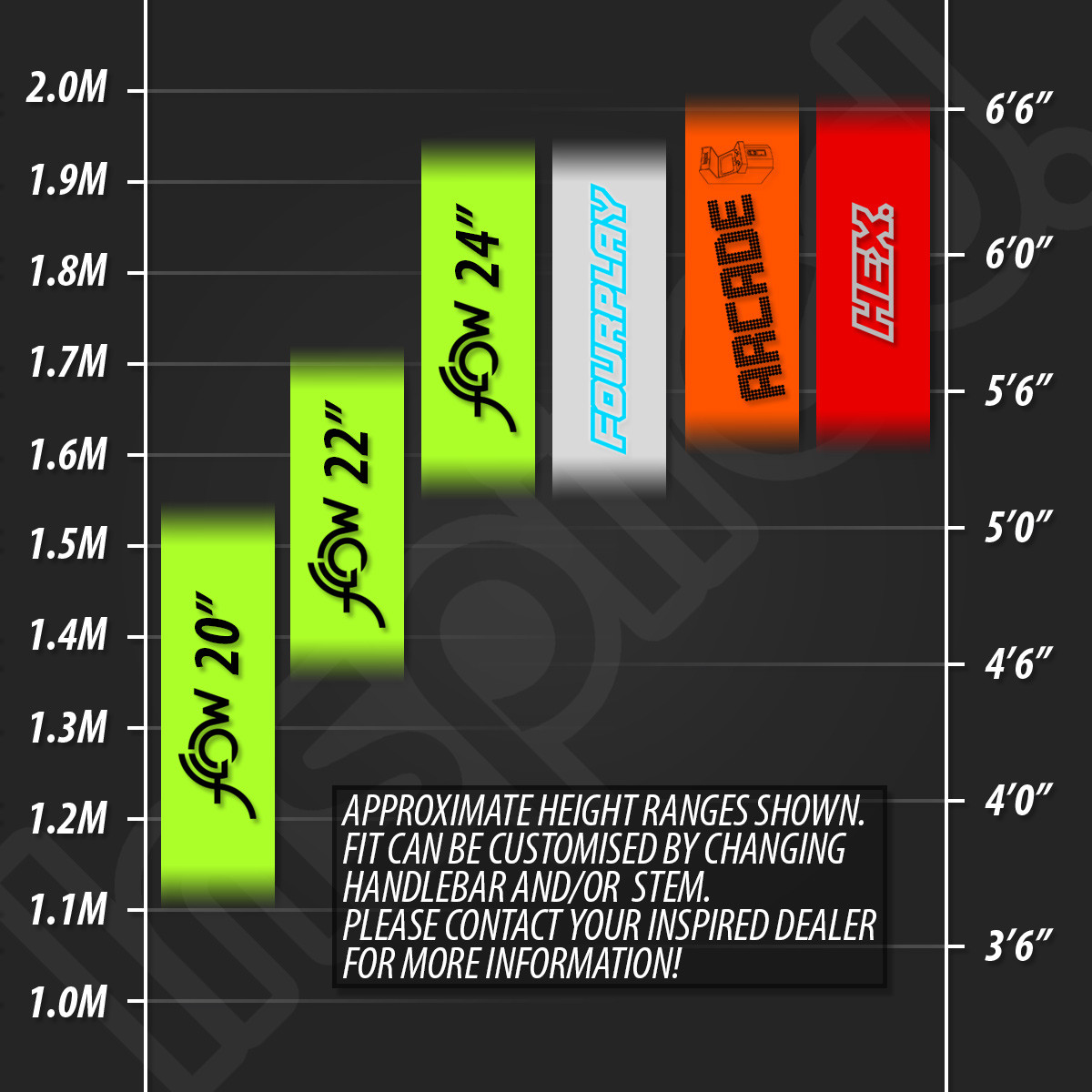

Suggested height: 1.55m/5ft 1in - 1.95m/6ft 4in

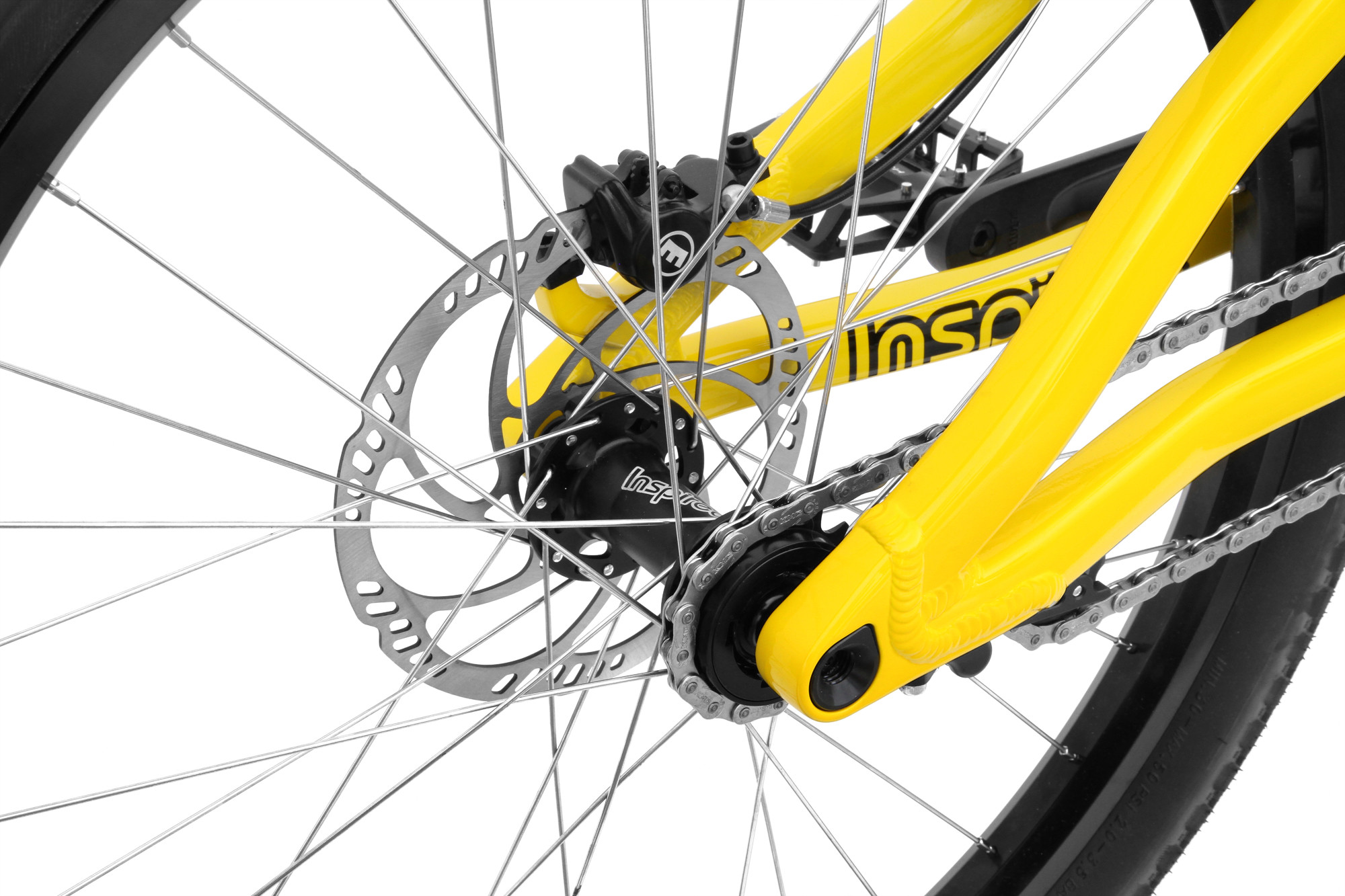

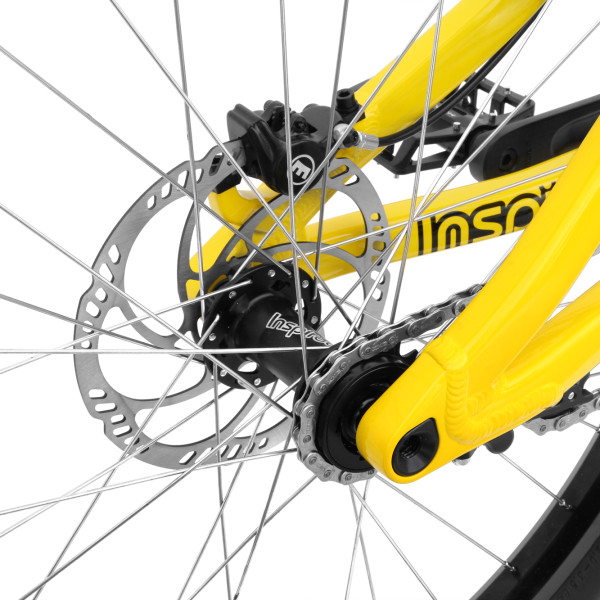

THROUGH AXLES
15mm front and 12mm rear through axles for maximum stiffness

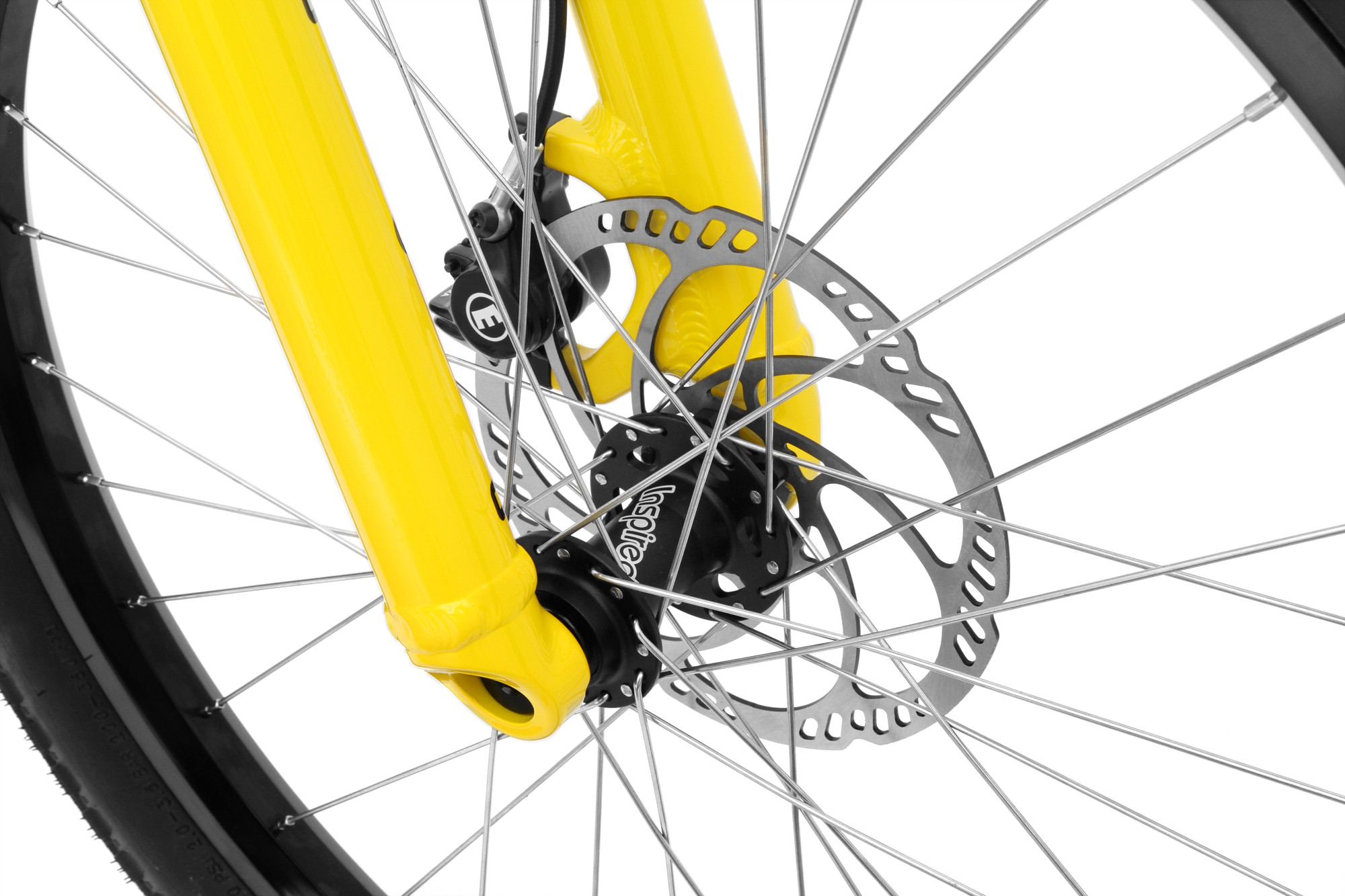

INSPIRED DISC HUBS
Top quality sealed disc hubs front and rear

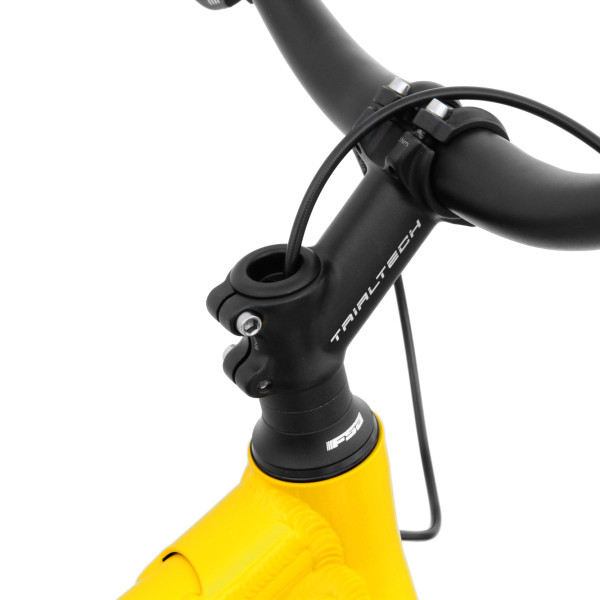

THREADED TOP CAP

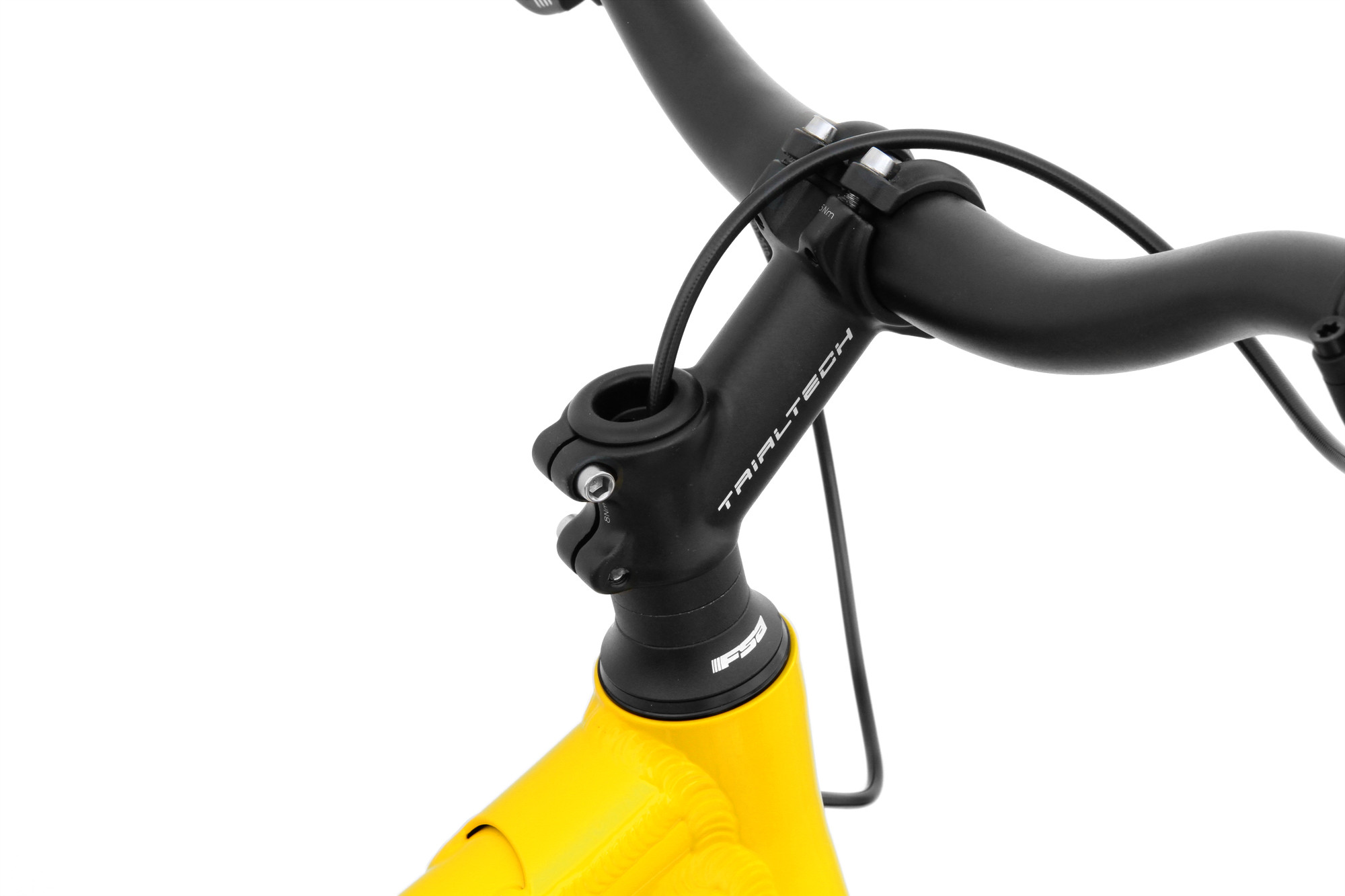

CNC-machined top cap allows for easy headset preloading and steerer tube cable routing

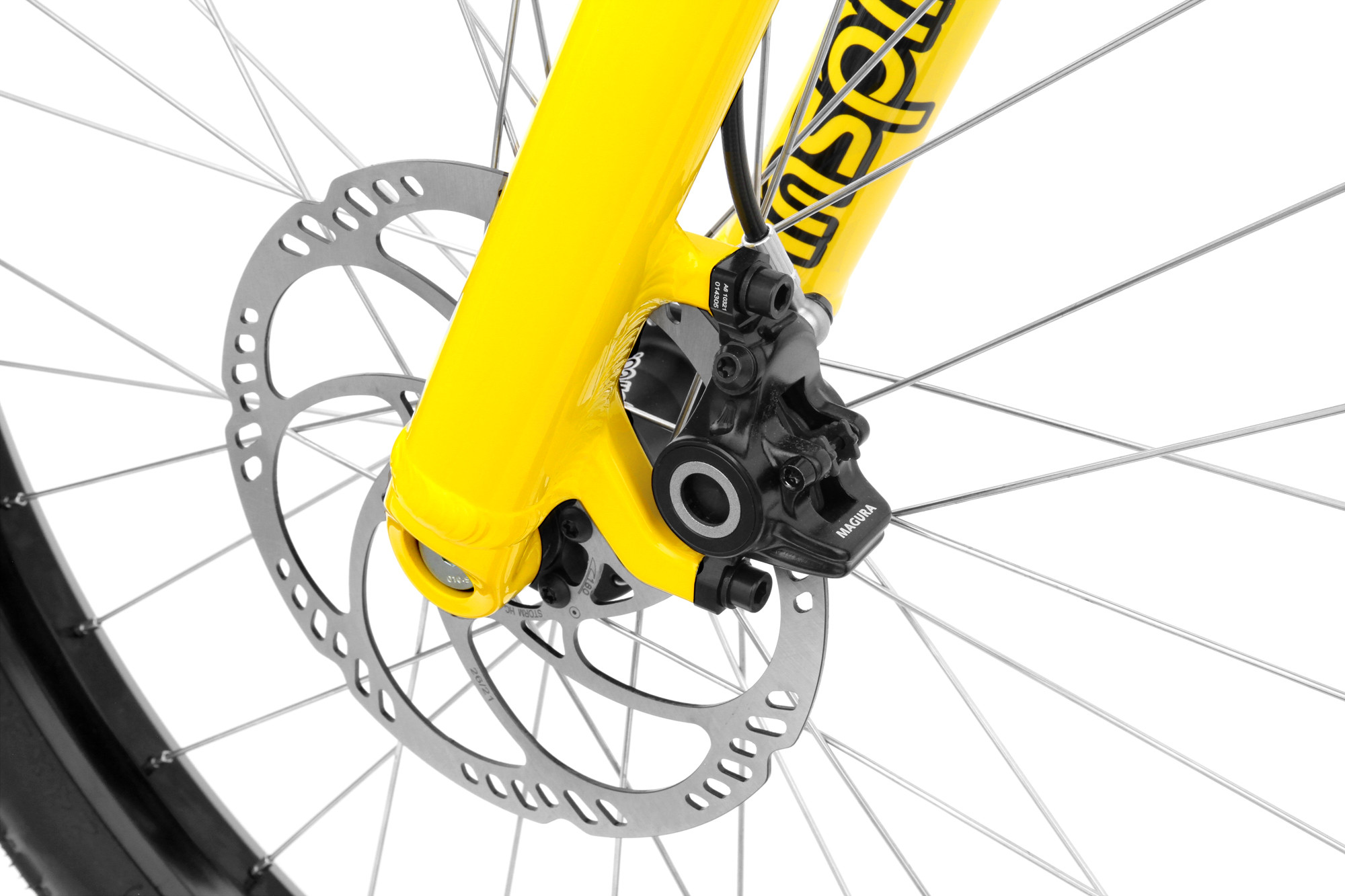

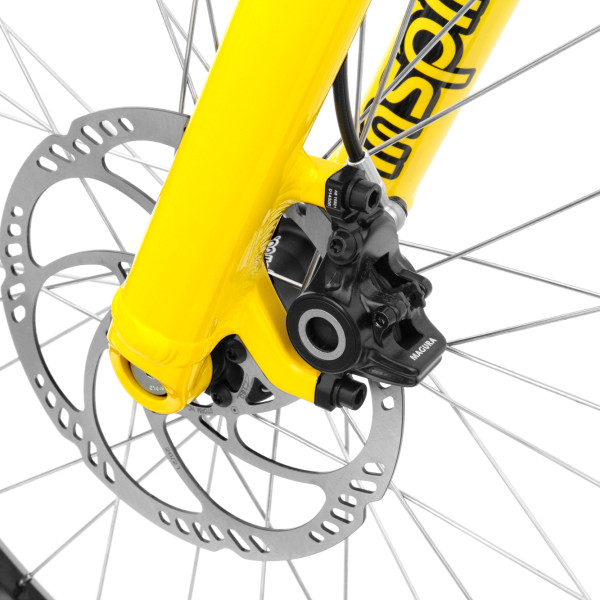

HYDRAULIC BRAKES
Magura MT4, Hope Tech 4 EVO - Trial Zone or Magura MT7 HC3 brakes available

Technical Data

Frame

- Inspired Fourplay 24", 6066-T6 aluminium alloy, Gloss Yellow

Compatibility
- Through axle: 135 x 12mm
- Bottom bracket: 73mm BSA
- Headset type: ZS44 Upper/EC44 Lower
- Seat tube diameter: 27.2mm
- Brake mount: 180 Post Mount

Fork

- Inspired Fourplay, Tapered Steerer Tube, 15mm Bolt Through Axle, Colour Matched to Frame Choice

Compatibility
- Steerer tube: 1 1/8" to 1.5" tapered
- Through axle: 100 x 15mm
- Brake mount: 180 Post Mount


Brakes

- Brakes: Avid FR5 Lever/BB5 Caliper, 180mm Avid G2 Rotors

Optional Upgrades*

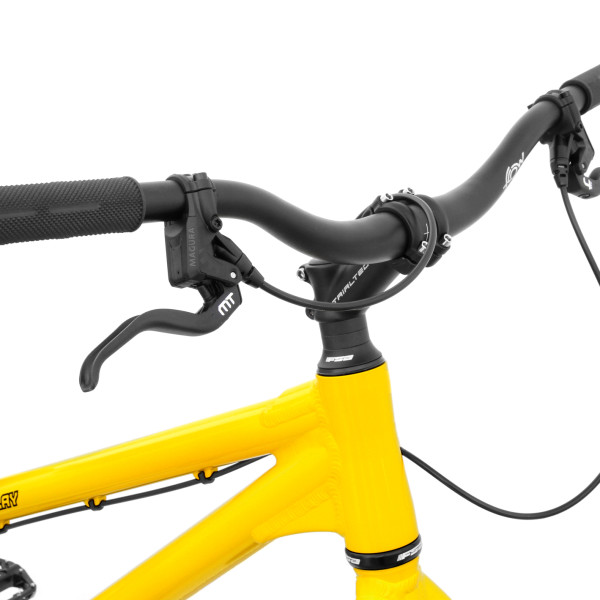

- Magura MT4, 180mm Storm HC Rotors  (shown in photos)
- Magura MT7 HC3, 180mm Storm HC Rotors
- Hope Tech 4 EVO - Trial Zone, 180mm Trial Zone V2 Rotors

Drivetrain

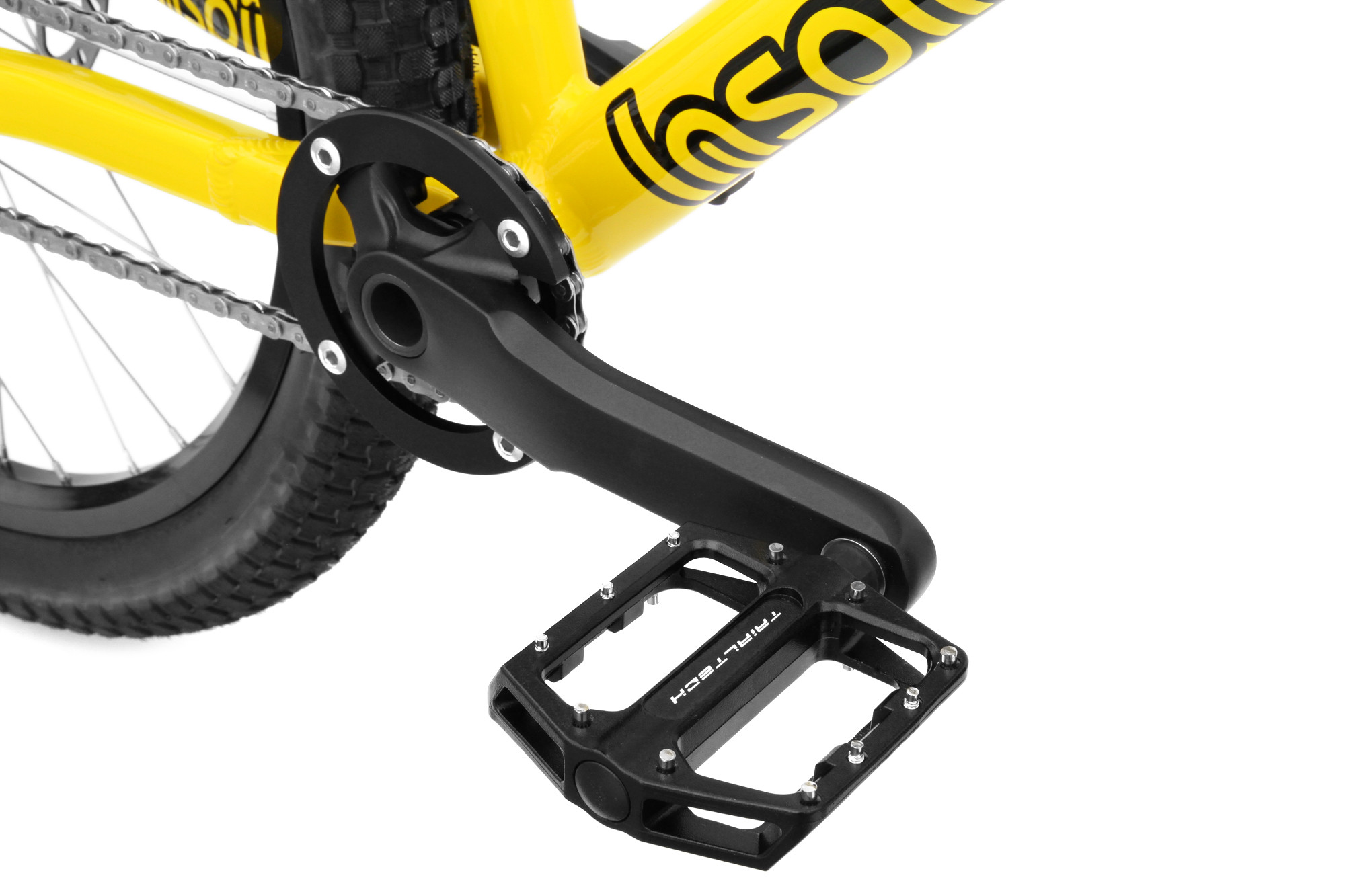

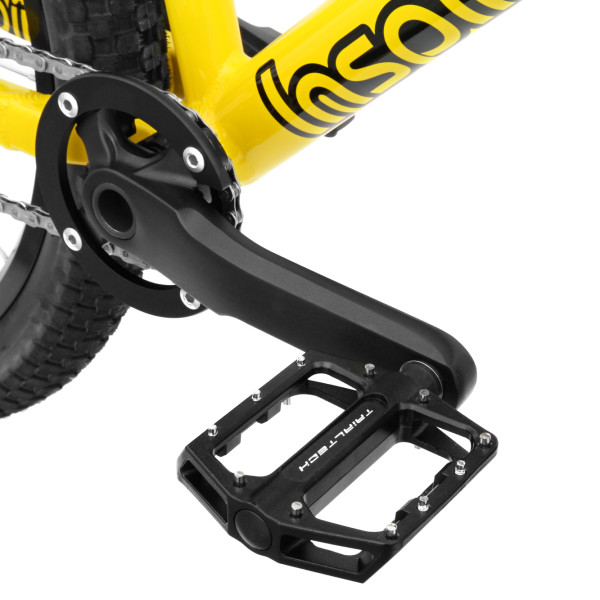

- Cranks: Inspired Flow Plus, 175mm, Black
- Front Sprocket: Inspired 22T
- Chain: KMC Z1eHX-N
- Rear Sprocket: Trialtech Sport 16T, 36 engagement
- Pedals: Trialtech Race Platform, Black
- Bottom Bracket: Inspired Flow Plus 24mm, Sealed Bearing, Black
- Bashring: Inspired, 4-Bolt, Black
- Chain Tensioner: Trialtech Team, Sprung, Black

Wheels

- Front Hub: Inspired Disc V2, 15mm bolt through axle, 32h, 100mm wide, Satin Black
- Rear Hub: Inspired Disc V2, 12mm bolt through axle, 32h, 135mm wide, Satin Black
- Rims: Inspired Flow, 24", Black
- Tyres: Kenda K-Rad 24" x 2.5"

Steering

- Headset: FSA, 1-1/8" Integral Upper, 1.5" Standard Lower, Satin Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Riser, Black

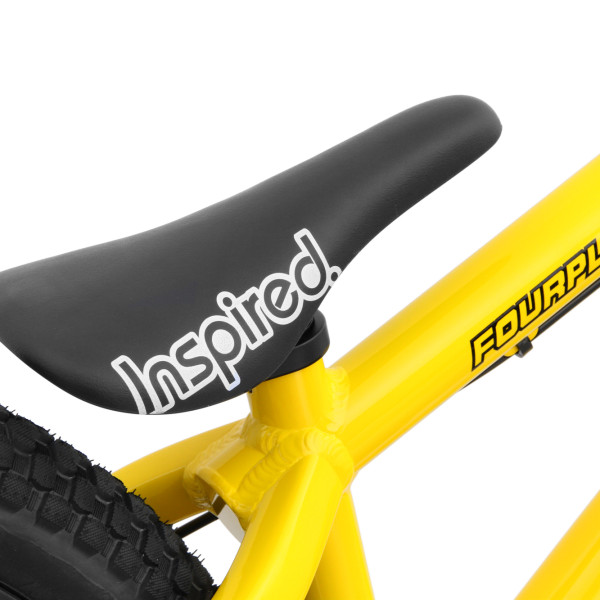

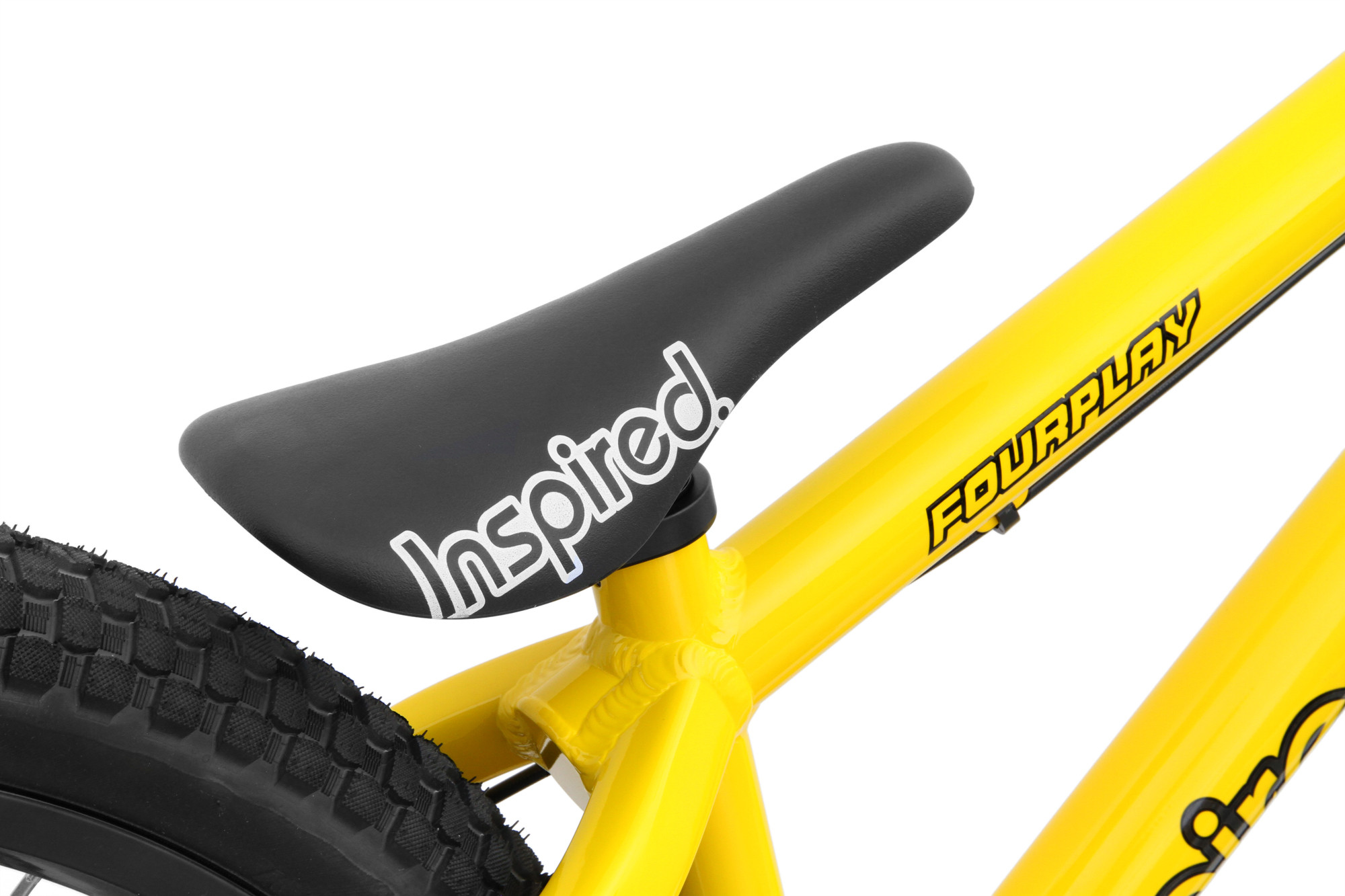

Seating

- Saddle: Inspired Integrated, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 31.8mm, Black

Geometry

- Wheelbase: 994mm
- Chainstay: 362mm
- BB Height: +10mm
- Head Angle: 73˚

Weight
- TBC

* Please note: Additional costs apply.
