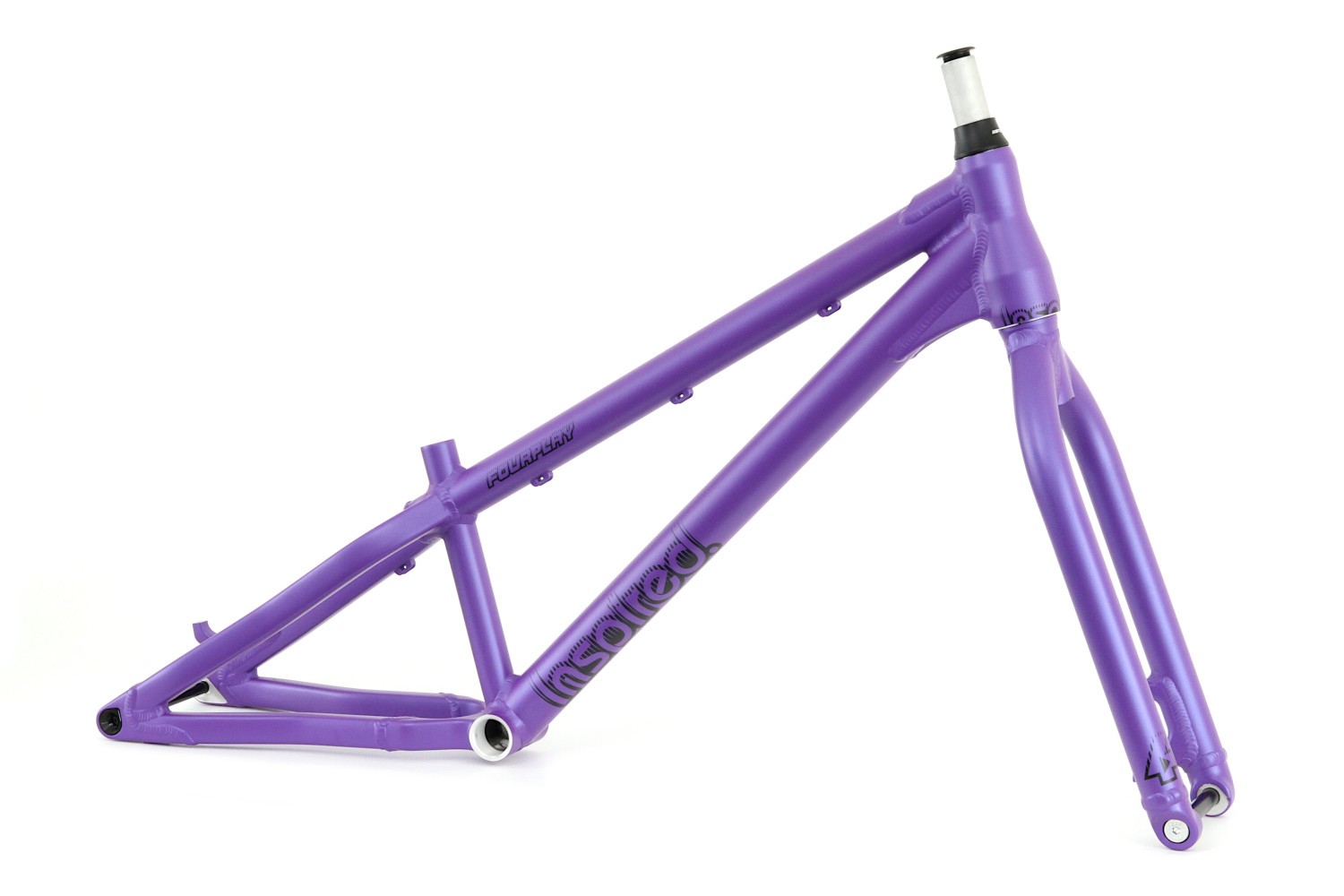

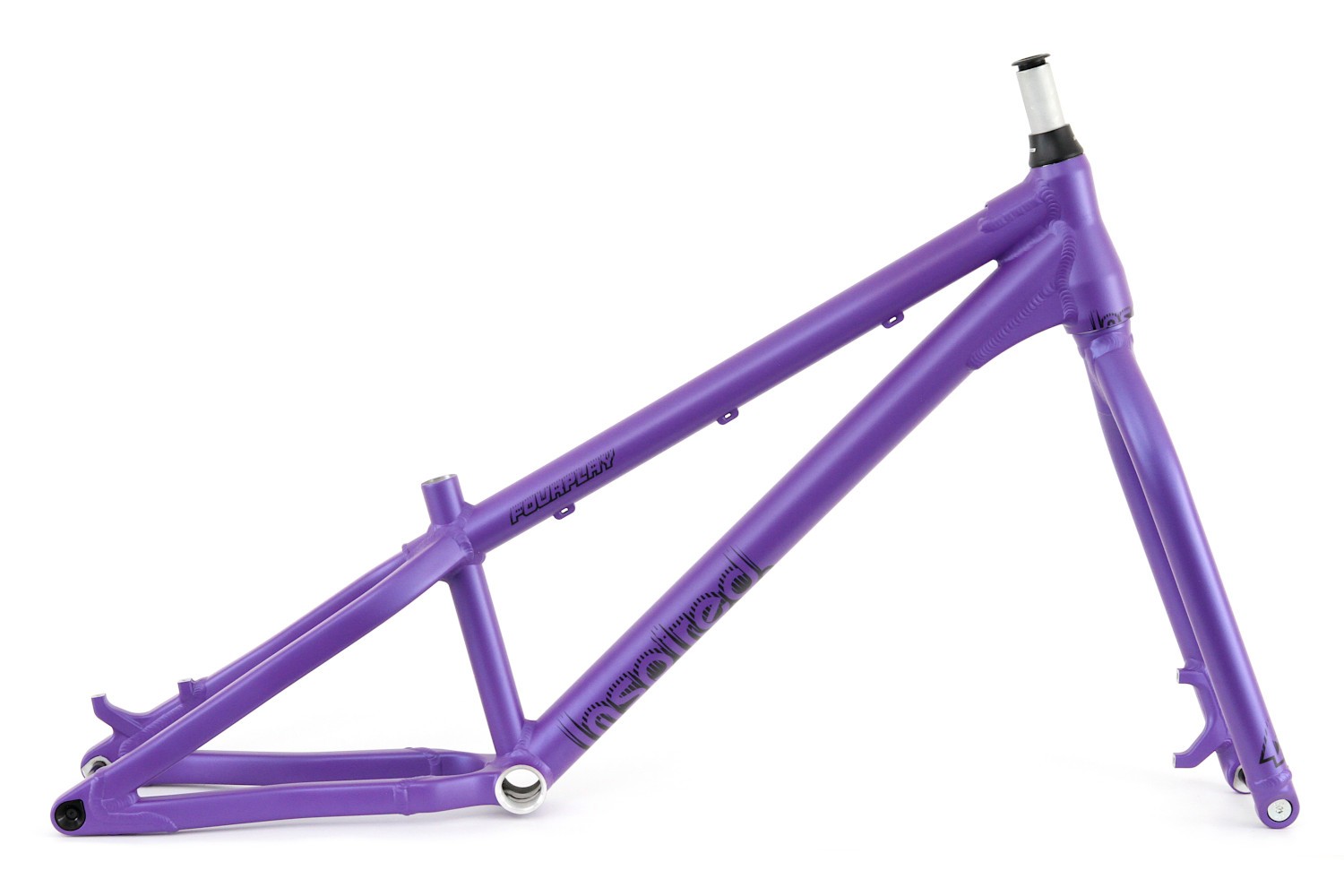

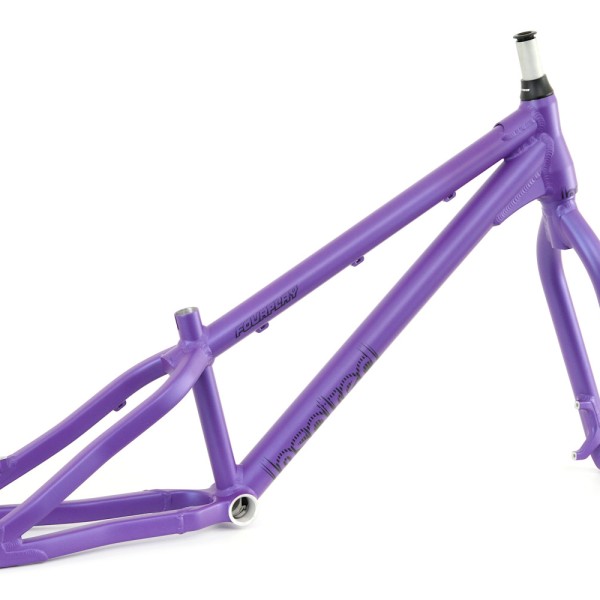

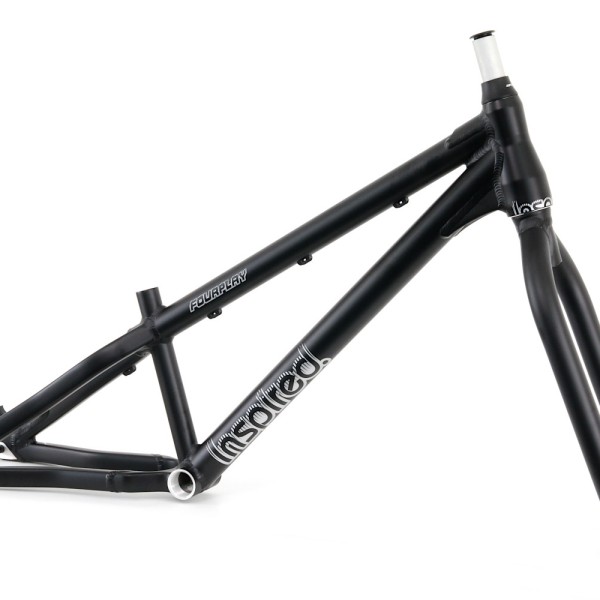

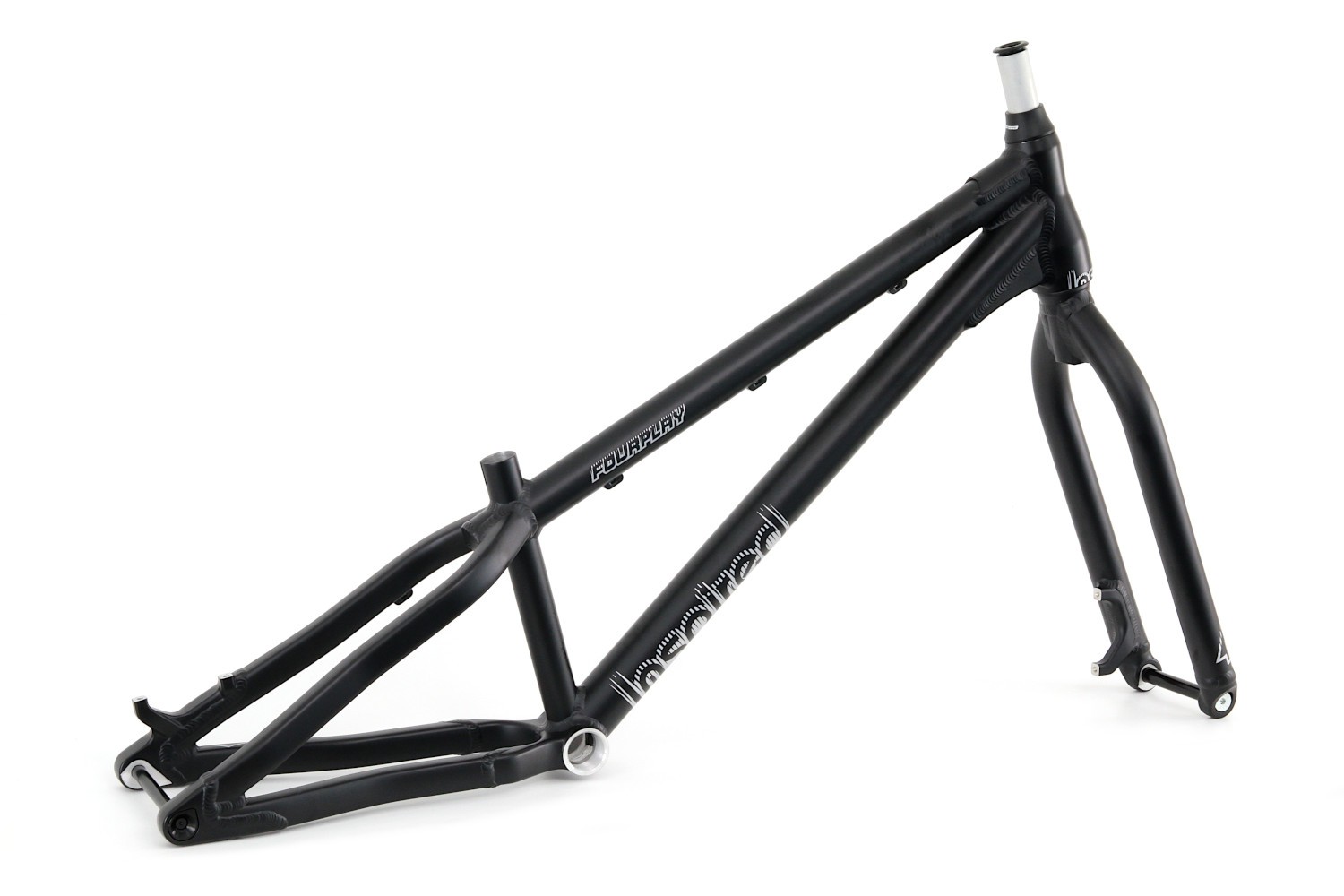

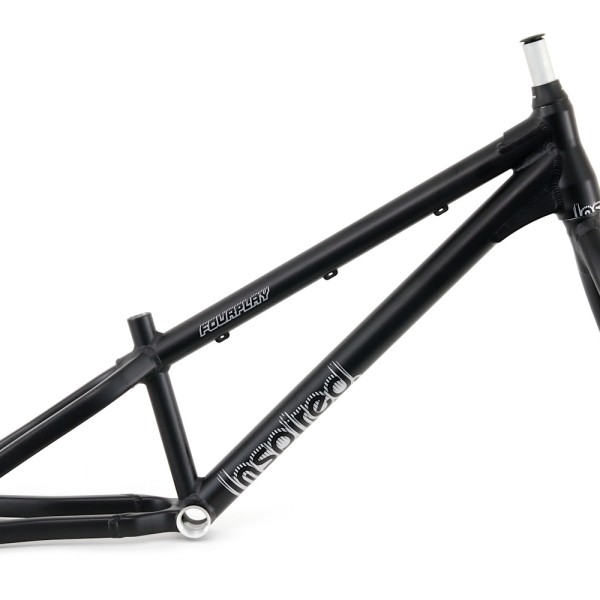

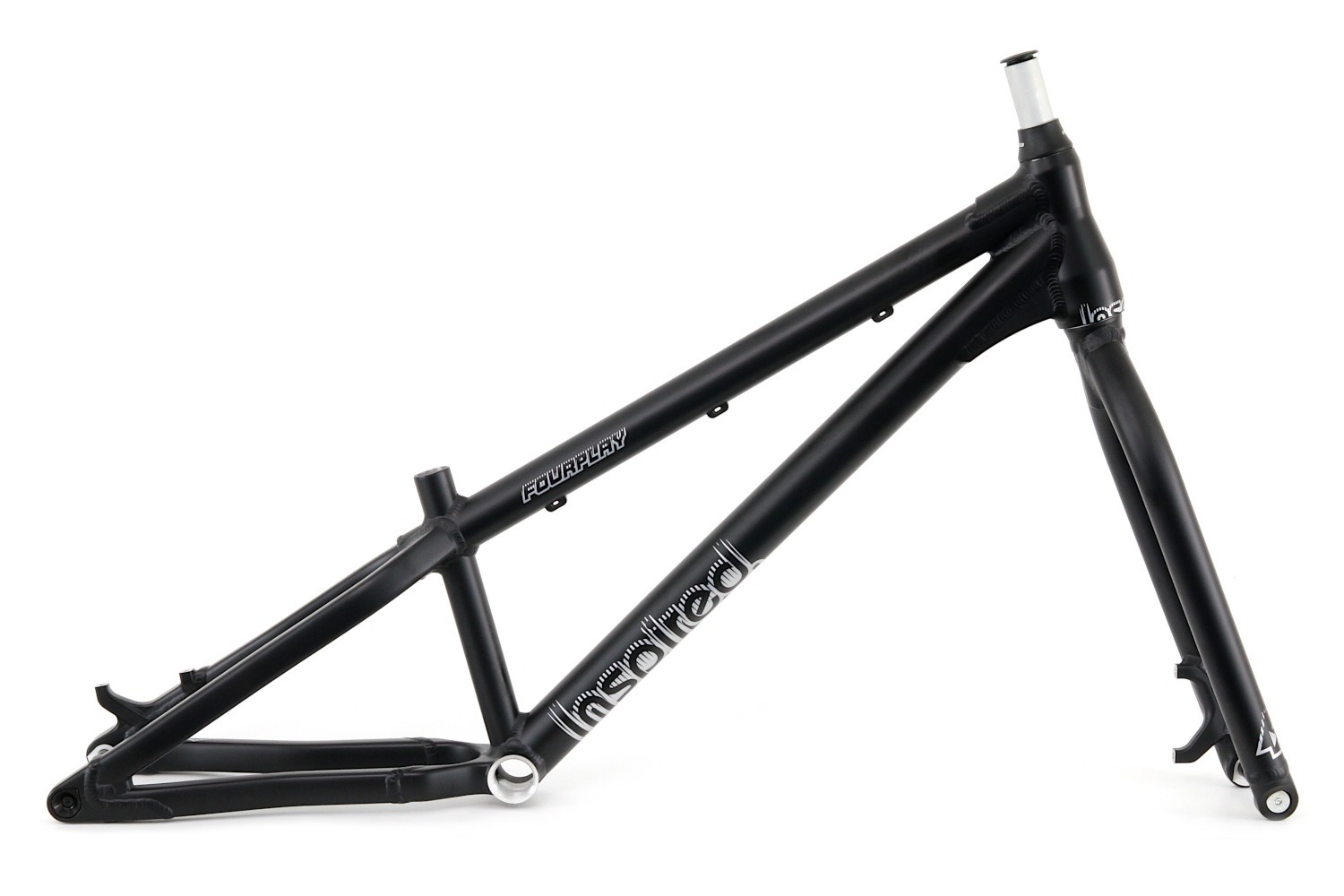

Inspired Fourplay Frame Kit

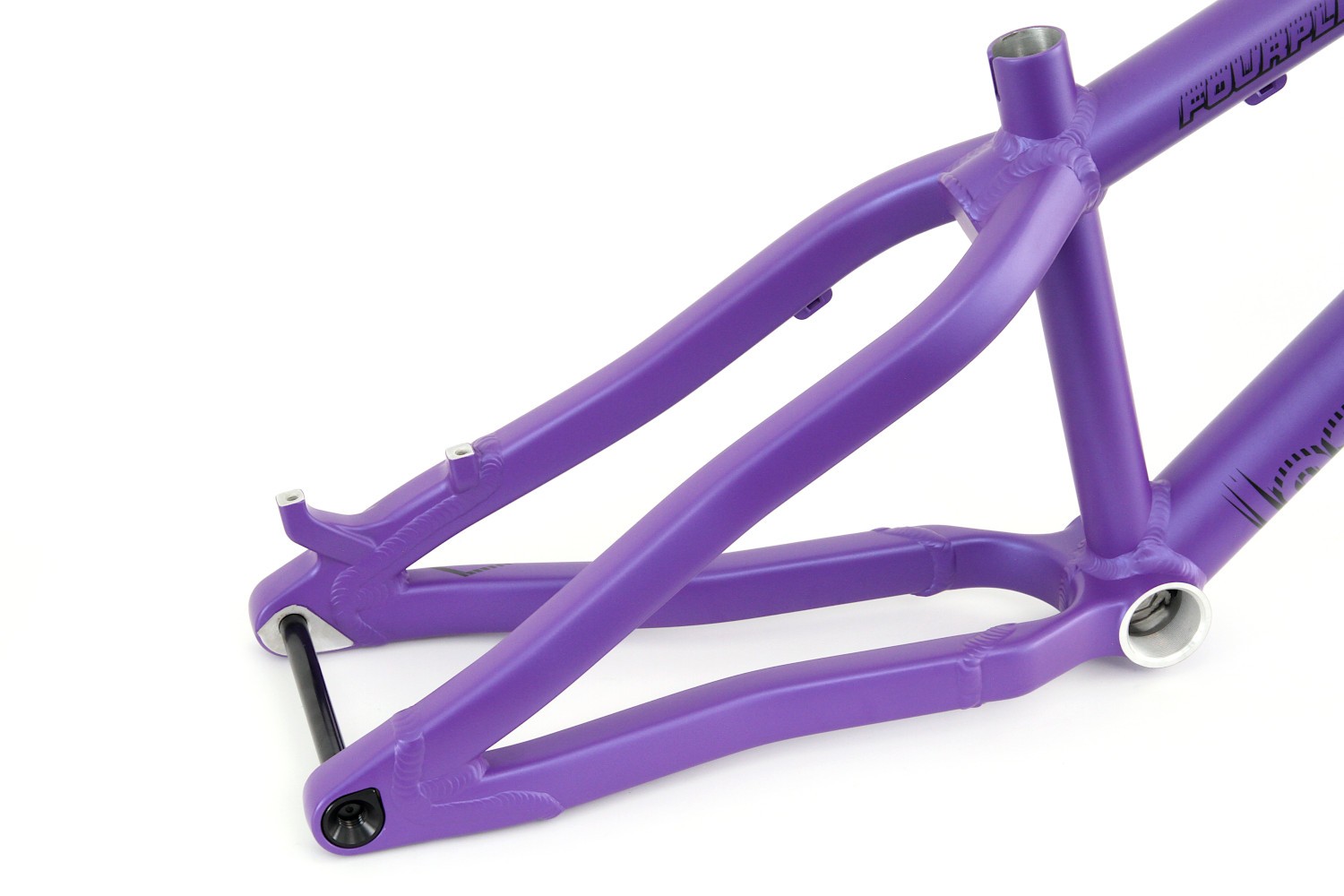

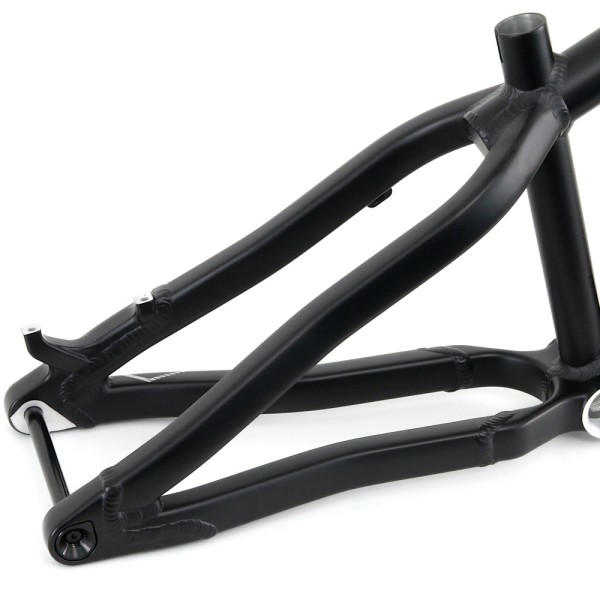

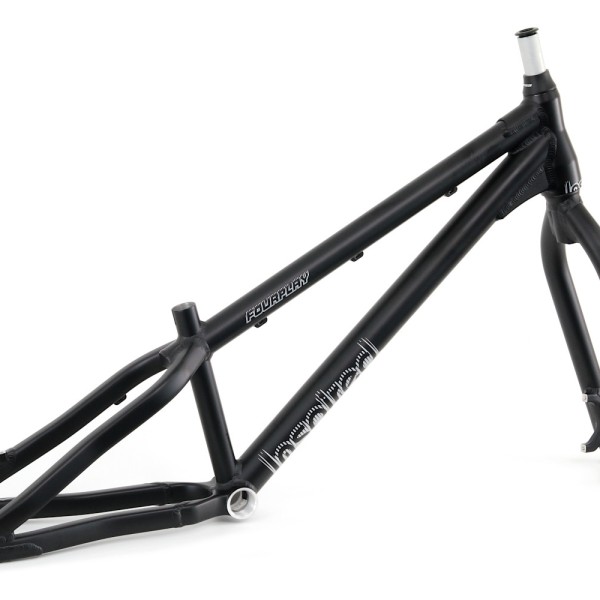

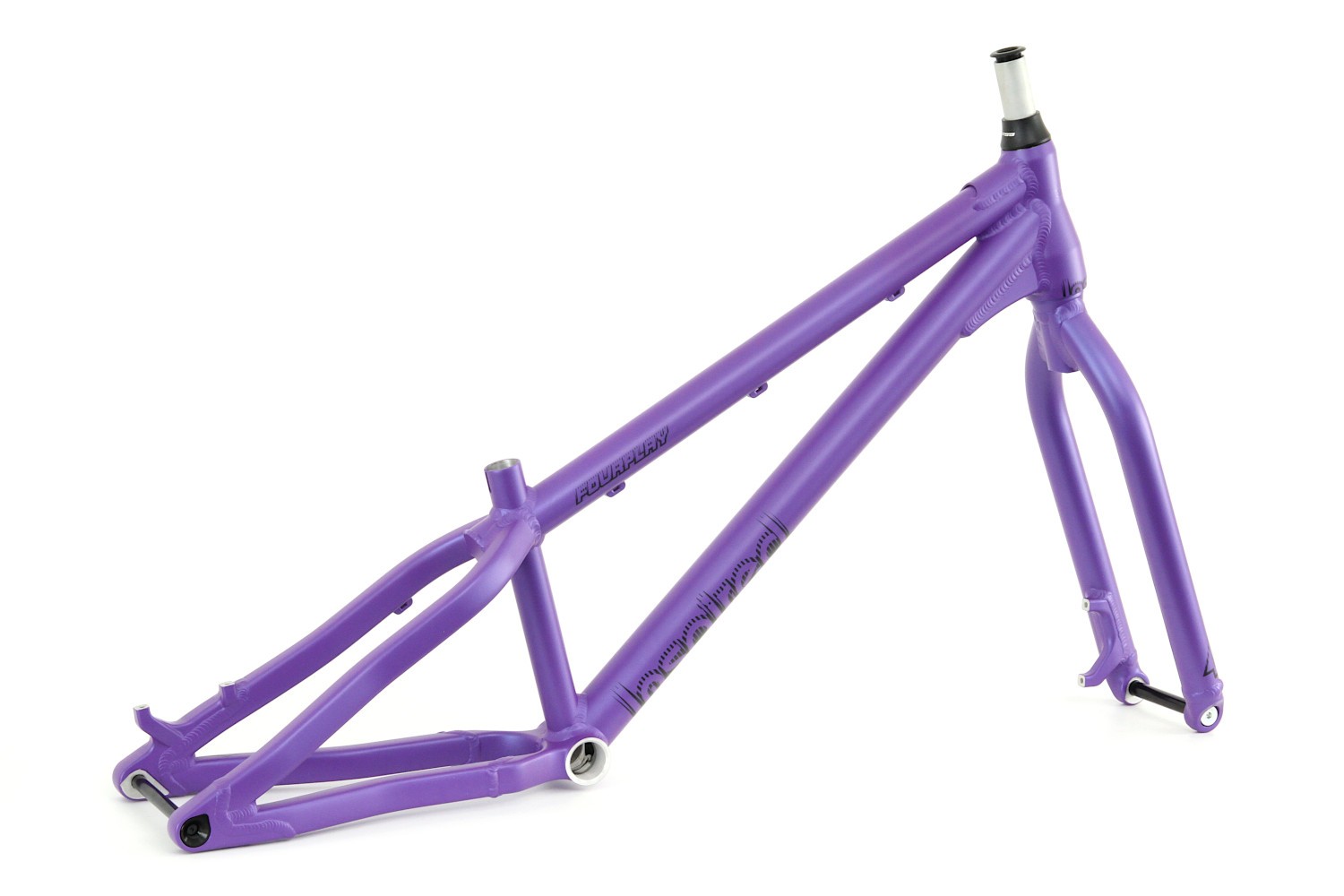

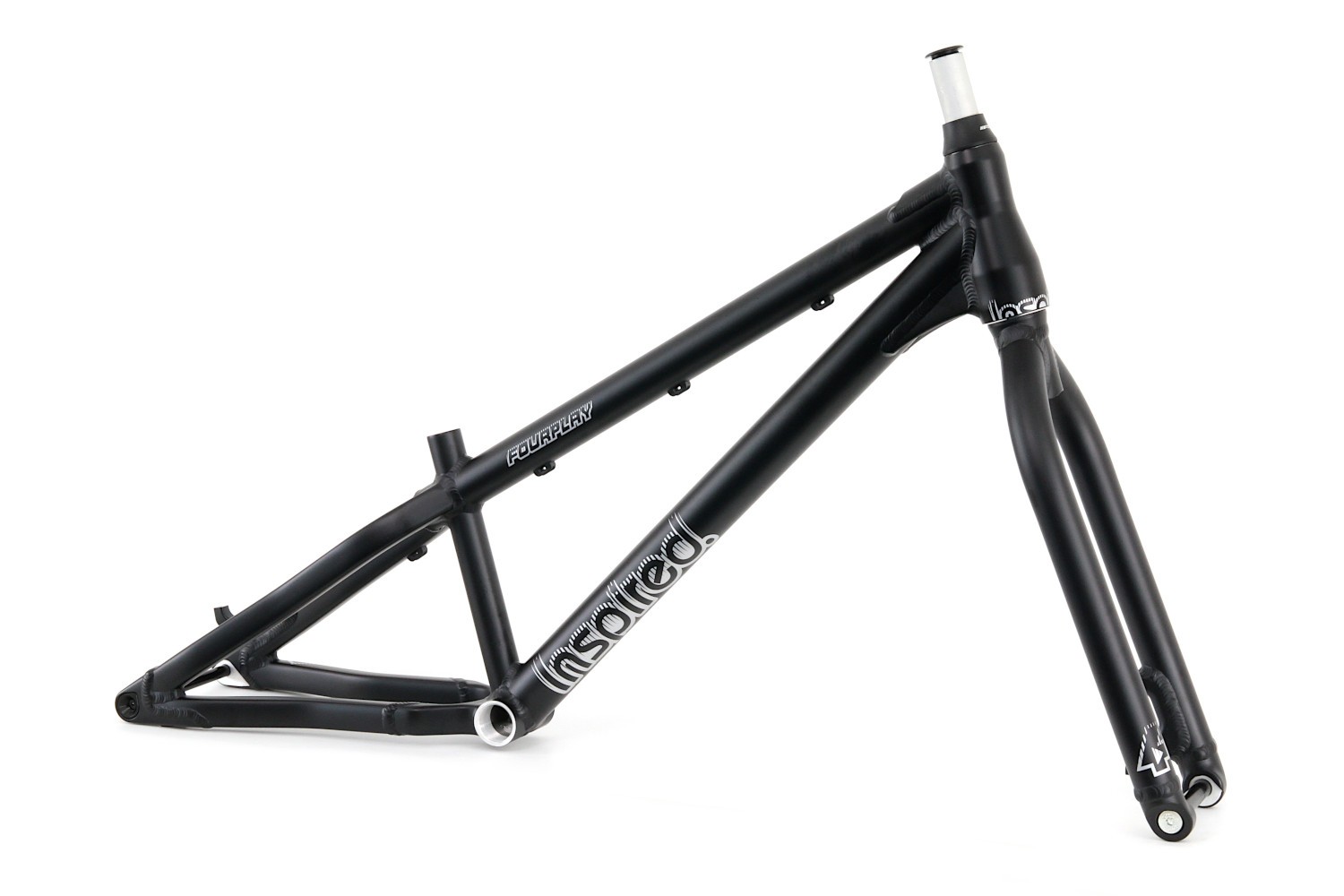

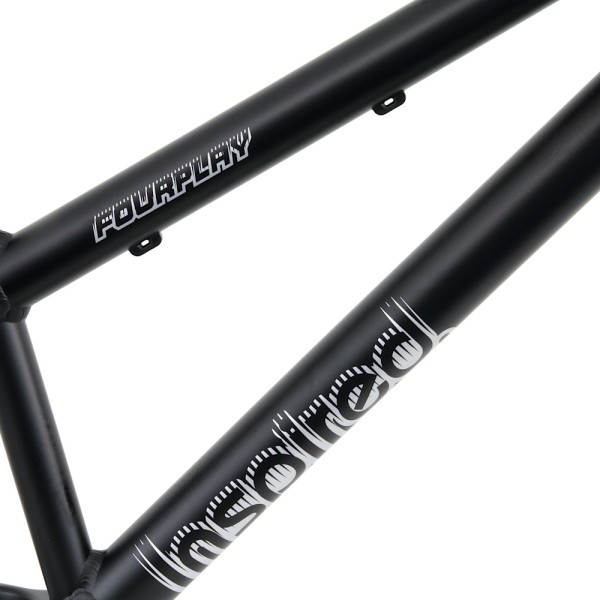

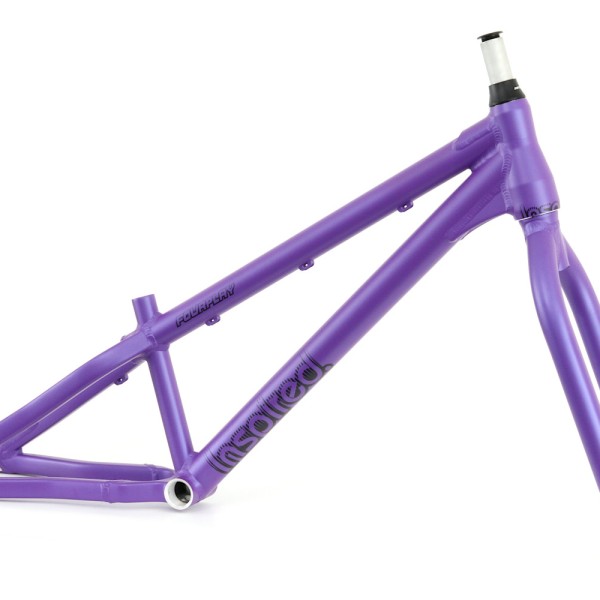

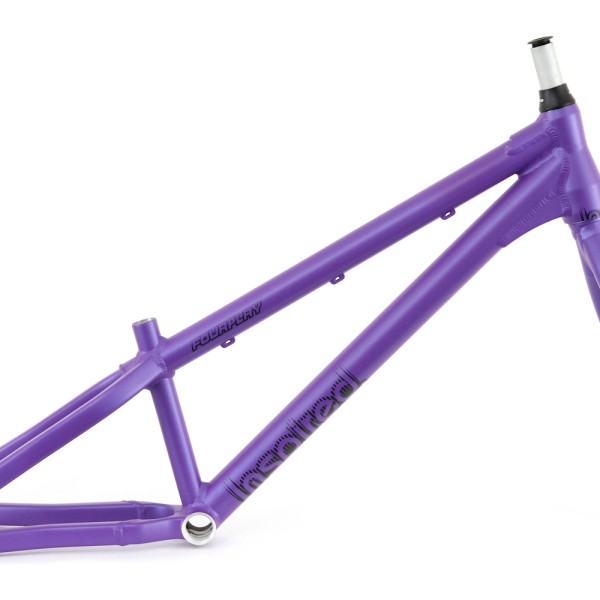

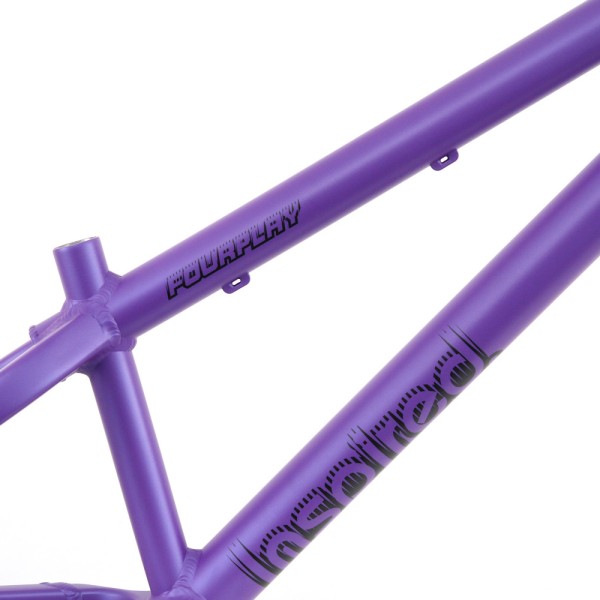

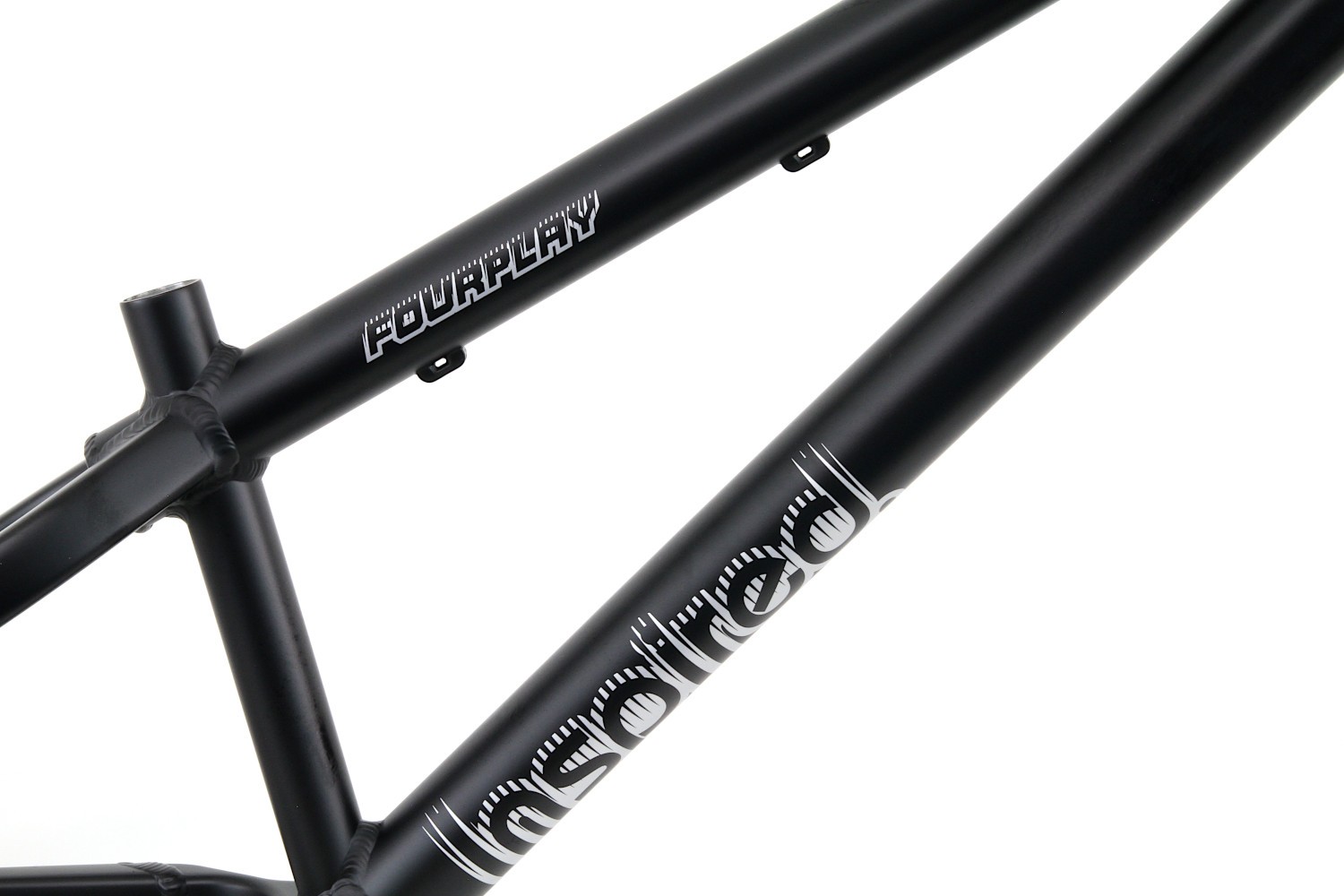

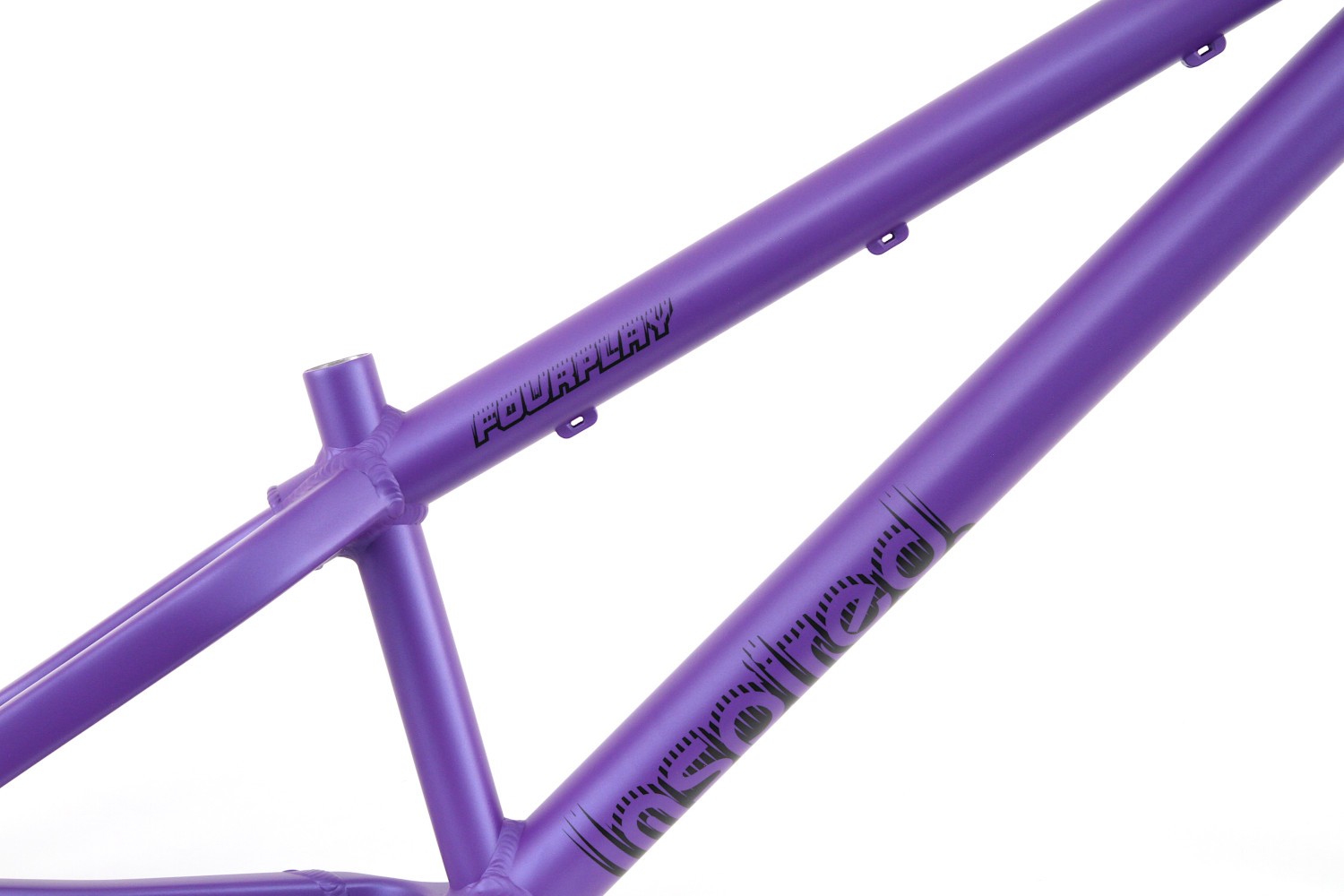

- Frame: Inspired Fourplay 24", 12mm bolt through axle, Satin Black or Satin Purple

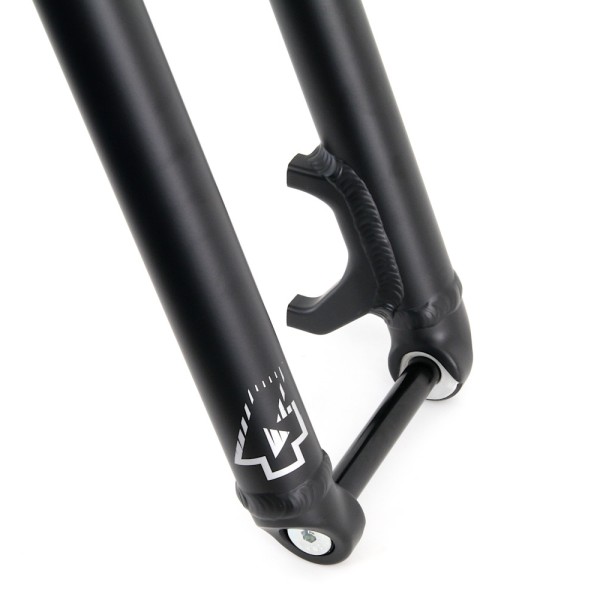

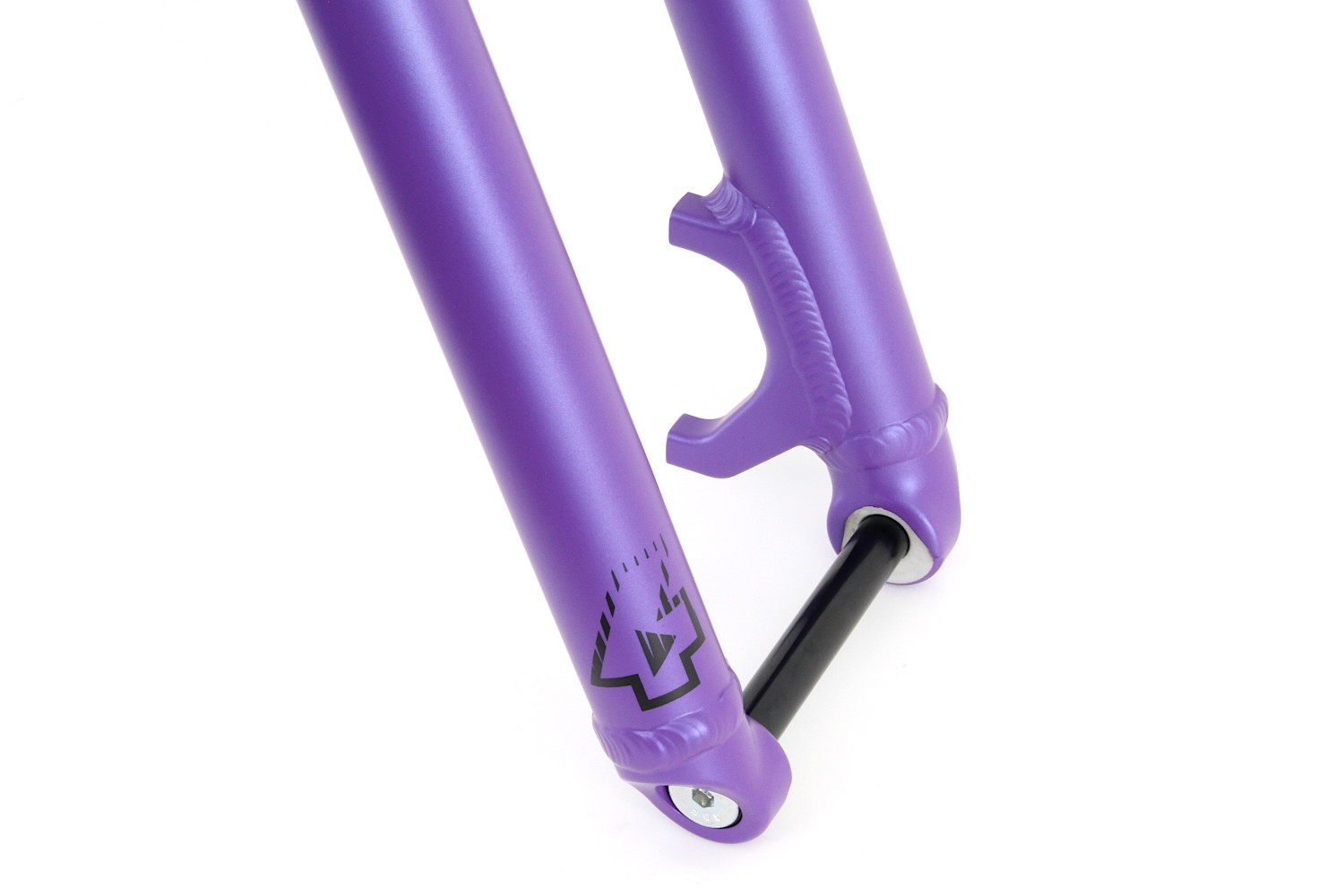

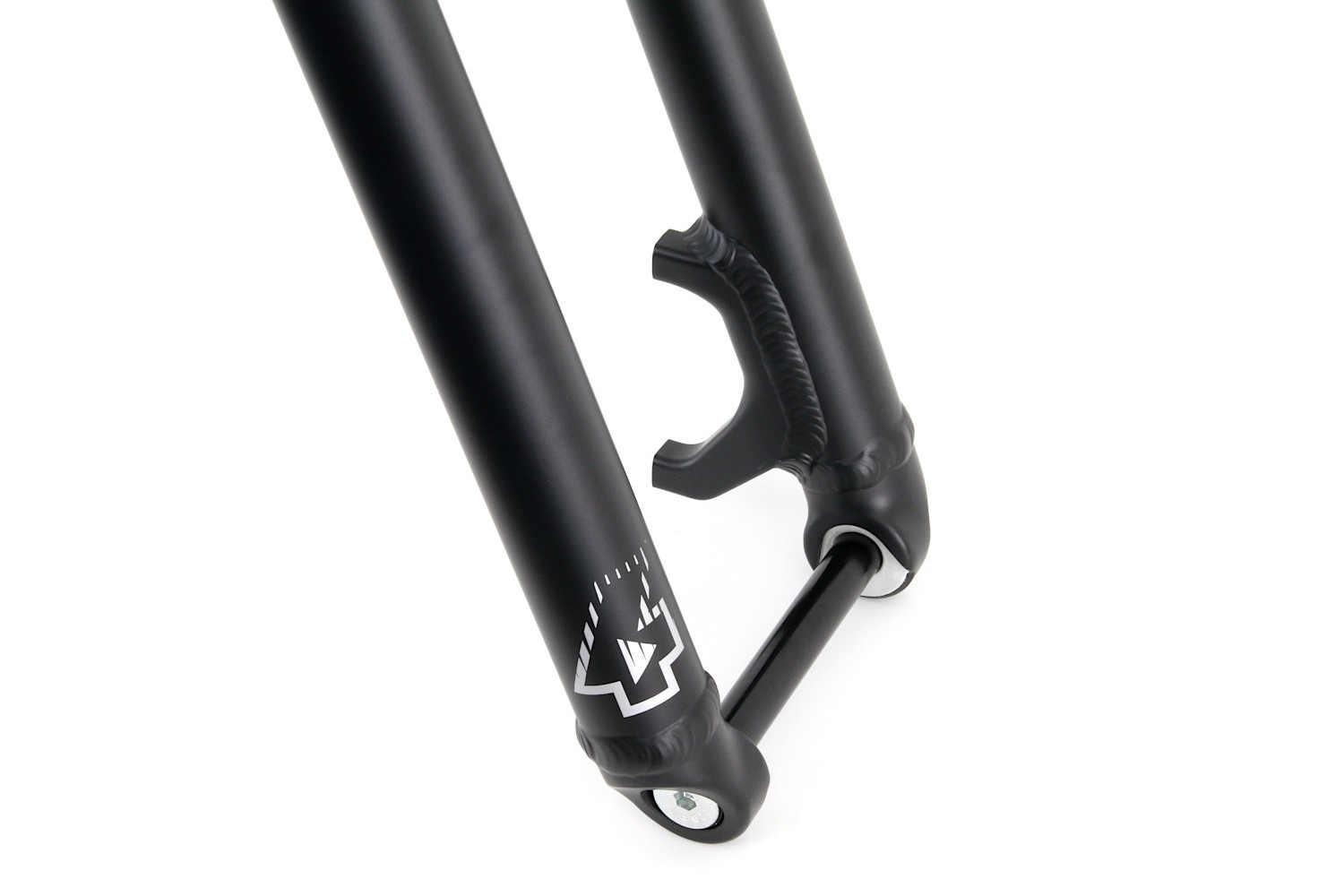

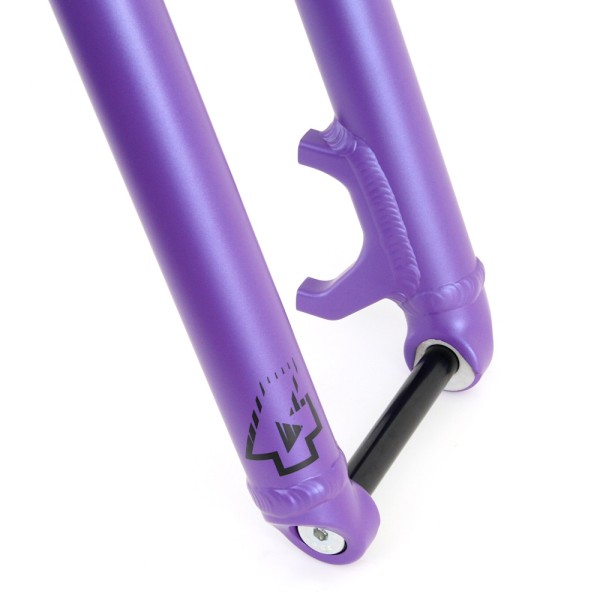

- Forks: Inspired Fourplay, Taper 1.5" steerer, 15mm bolt through axle, Colour Matched to Frame Choice

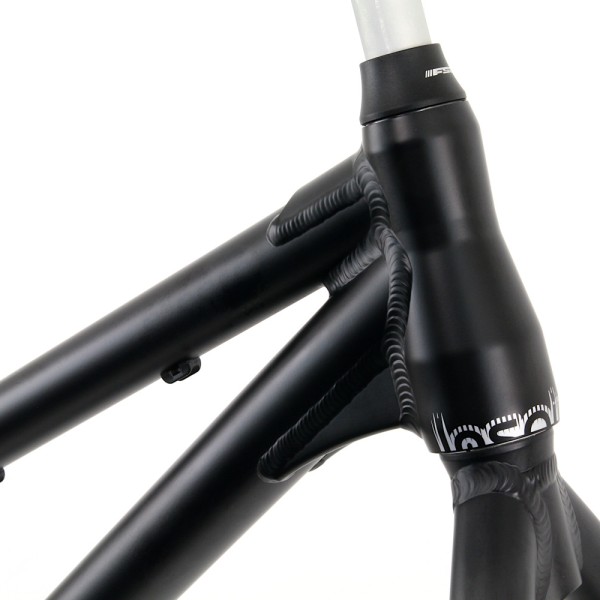

- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black

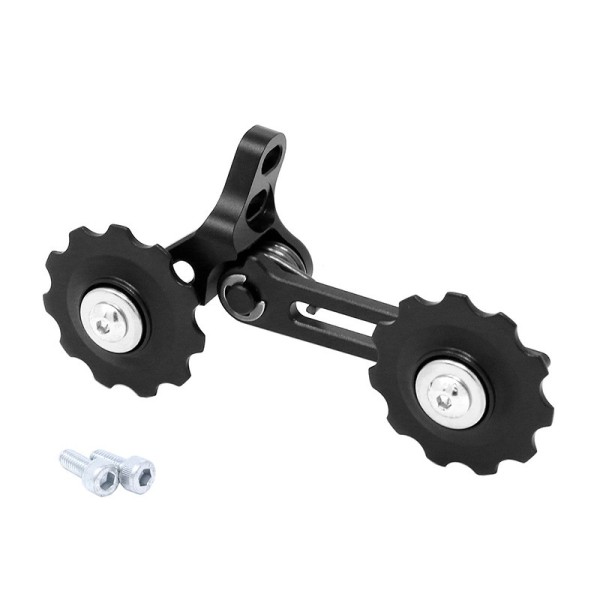

- Tensioner: Inspired Team Sprung, Black
- Weight: 3.34kg
Geometry
- Wheelbase: 988mm (measured with Fourplay fork)
- Chainstay: 362mm
- BB Height: +15mm
- Head Angle: 74˚
Specification
- Seatpost: 27.2mm
- Seatclamp: 31.8mm
- BB shell: 73mm
- Tyre clearance: 24 x 2.7"

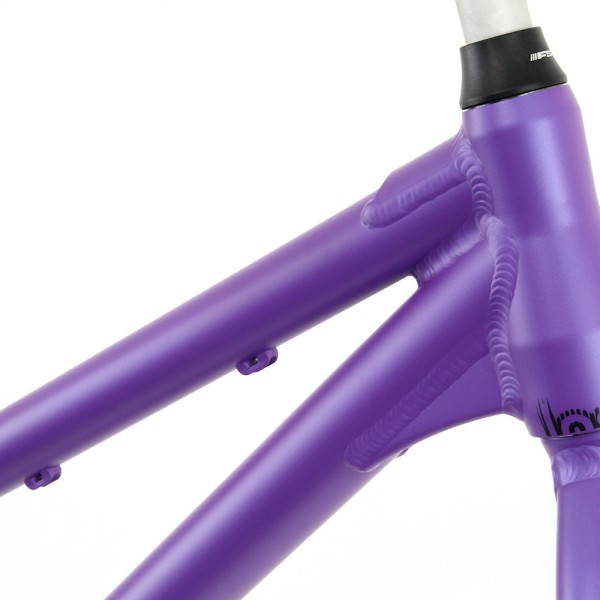

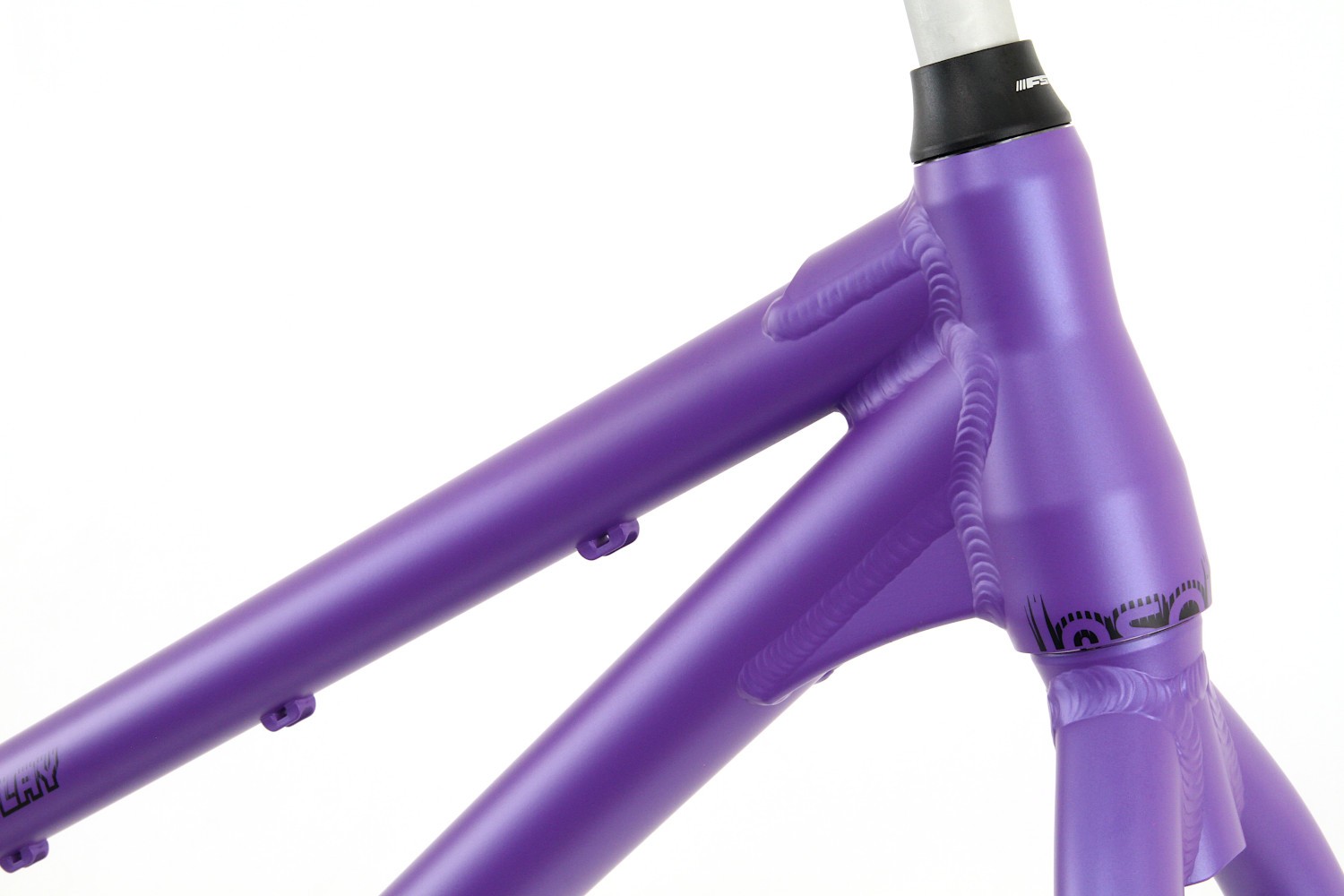

- Headtube: Tapered (1-1/8" Integrated Upper, 1.5" Integrated Lower)

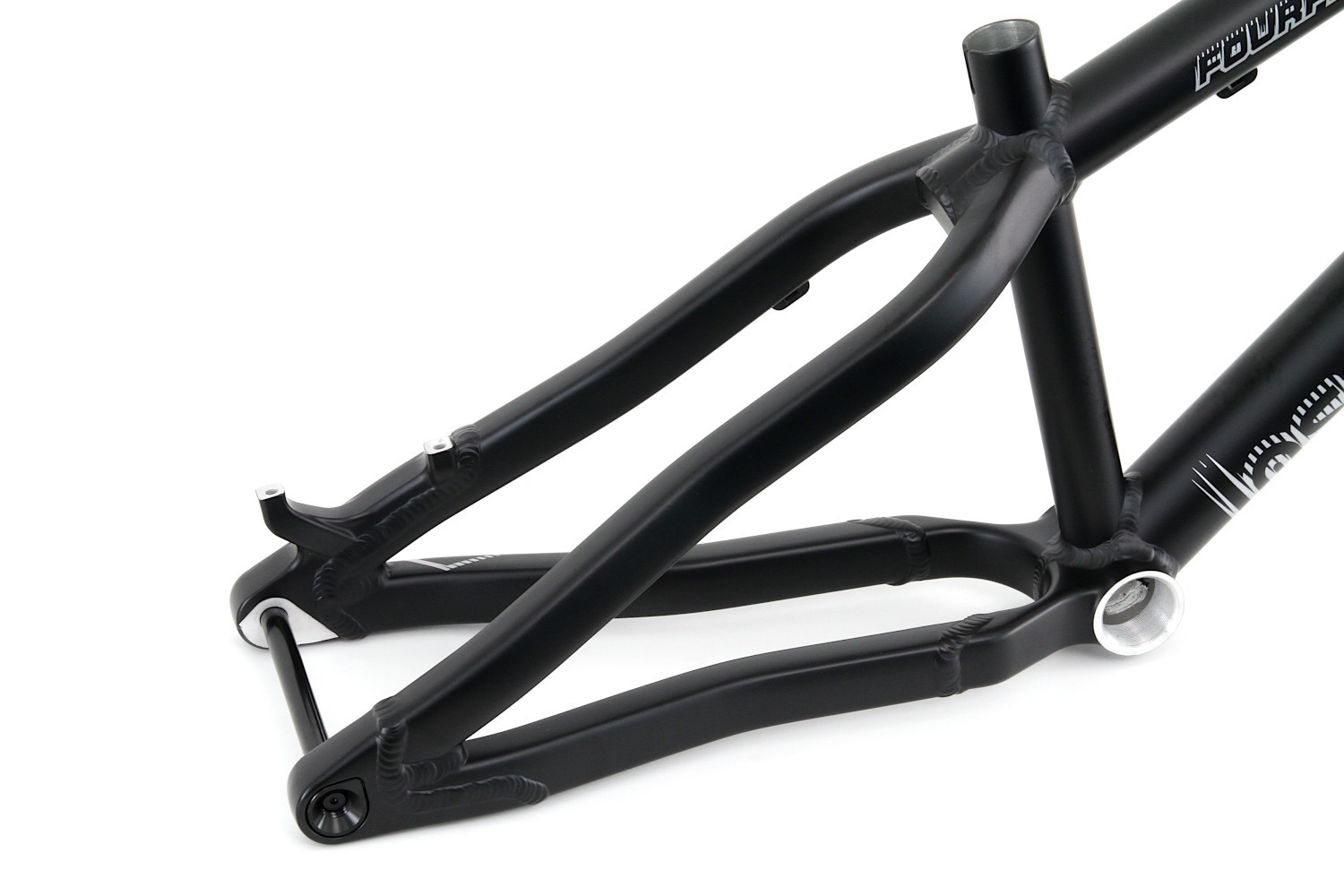

- Dropouts: 12mm bolt through, 135mm spacing
- Chainline: 51mm (Recommended minimum with 22T chainring)
- Disc Mount: +20mm Post Mount (Designed to run a maximum rotor size of 185mm, using a larger rotor will void the warranty)
Documentation
15mm Fork Axle Assembly Instructions (0.6MB)
12mm Frame Axle Assembly Instructions (0.6MB)
Team Sprung Tensioner Instructions (1.6MB)
Please Note: Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
